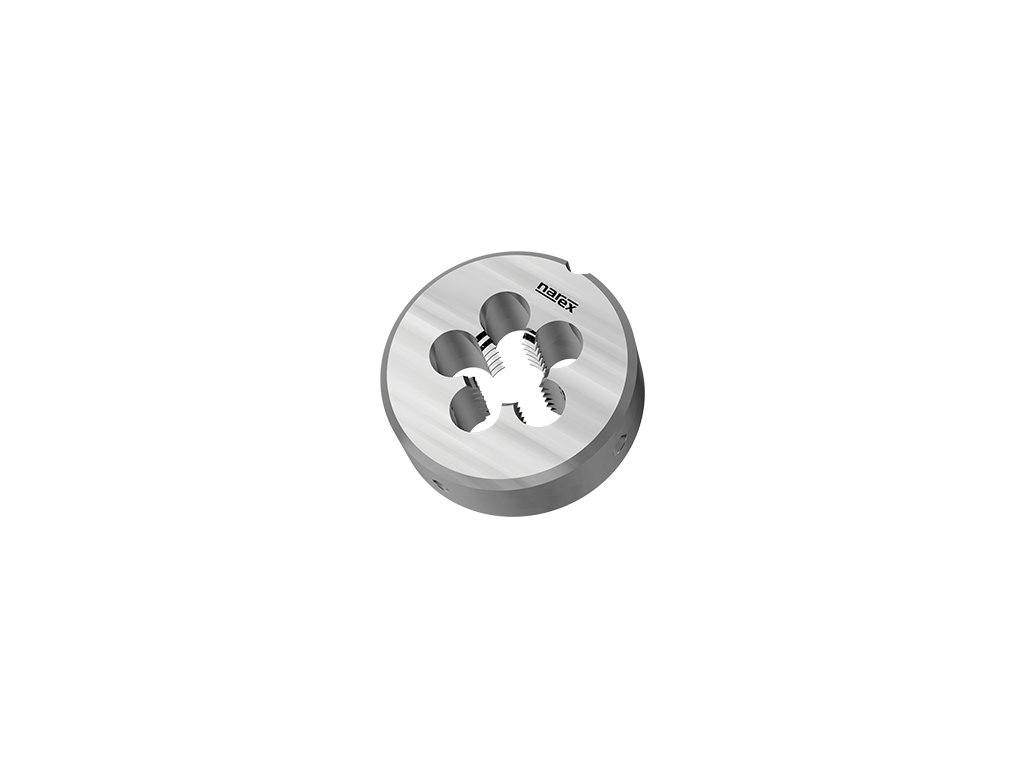

9502 - Circular screwing die

Code: 141132125003000
from €12,27 from €10,14 excl. VAT

Choose variant

Catalogue number: 9502

Circular screwing dies, british standard pipe thread, DIN EN 24 231, for structural steels, plain cast steels, free cutting steels



Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: High speed steel HSSTap material:   High speed steel HSS

Circular screwing dies norm: DIN EN 24 231Circular screwing dies norm:   DIN EN 24 231

Thread tolerance: AThread tolerance:   A

Chamfer: Length 1,5 pitchChamfer:   Length 1,5 pitch


Detailed information

Variant: G 1/8"x28 A
In stock | 141132125003000
€12,27
€10,14 excl. VAT
Variant: G 1/4"x19 A
In stock | 141132125007000
€16,61
€13,73 excl. VAT
Variant: G 3/8"x19 A
In stock | 141132125011000
€24,02
€19,85 excl. VAT
Variant: G 1/2"x14 A
In stock | 141132125013000
€24,02
€19,85 excl. VAT
Variant: G 5/8"x14 A
In stock | 141132125015000
€34,65
€28,64 excl. VAT
Variant: G 3/4"x14 A
In stock | 141132125017000
€35,90
€29,67 excl. VAT
Variant: G 1"x11 A
In stock | 141132125021000
€47,40
€39,17 excl. VAT
Variant: G 1 1/8"x11 A
Currently unavailable | 141132125022000
€61,26
€50,63 excl. VAT
Variant: G 1 1/4"x11 A
Currently unavailable | 141132125023000
€61,26
€50,63 excl. VAT
Variant: G 1 1/2"x11 A
Currently unavailable | 141132125025000
€99,22
€82 excl. VAT

Product detailed description

Catalogue number: 9502

Circular screwing dies, british standard pipe thread, DIN EN 24 231, for structural steels, plain cast steels, free cutting steels



Features:

Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: High speed steel HSSTap material:   High speed steel HSS

Circular screwing dies norm: DIN EN 24 231Circular screwing dies norm:   DIN EN 24 231

Thread tolerance: AThread tolerance:   A

Chamfer: Length 1,5 pitchChamfer:   Length 1,5 pitch




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm22-8
P1.2Plain cast steels <500N/mm22-8
P2.1Free-cutting steels <800N/mm23-6
P2.2Structural steels <800N/mm23-6
P2.3Plain cast steels <800N/mm23-6
K6.1Grey cast iron3-4
K6.2Spher. graphite and mall. cast iron3-4
N8.1Aluminium alloysSi<10%4-8
N8.2Aluminium alloysSi<10%4-8
N9.1Pure copper4-8
N10.1Short chipping copper alloys2-4
N10.2Long chipping copper alloys2-4
N11.1Zinc and zinc alloys5-10



Dimensions:

9502: kreslenka
d1PtolDE
G 1/8"28A3011
G 1/4"19A3810
G 3/8"19A4514
G 1/2"14A4514
G 5/8"14A5516
G 3/4"14A5516
G 1"11A6518
G 1 1/8"11A7520
G 1 1/4"11A7520
G 1 1/2"11A9022

Additional parameters

Category: Circular screwing dies
Coating: -
Hole type: -
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Long chipping copper alloys, Zinc and zinc alloys, Pure copper
Product line: NAREX Zdanice Product Line
Standard: DIN EN 24 231
Thread type: Pipe Thread
Tolerance: A
