2960PM - Forming tap
Code: 041535192030005
Variant: M 3x0,5 6HX
In stock
(>10 pcs)
| 041535192030005
EAN: 8595111984858
€32,79
€27,10
excl. VAT
Variant: M 4x0,7 6HX
In stock
(>10 pcs)
| 041535192040005
EAN: 8595111984865
€33,26
€27,49
excl. VAT
Variant: M 5x0,8 6HX
In stock
(>10 pcs)
| 041535192050005
EAN: 8595111984872
€34,93
€28,87
excl. VAT
Variant: M 6x1 6HX
In stock
(>10 pcs)
| 041535192060005
EAN: 8595111984889
€37,22
€30,76
excl. VAT
Variant: M 8x1,25 6HX
In stock
(>10 pcs)
| 041535192080005
EAN: 8595111984896
€39,85
€32,93
excl. VAT
Variant: M 10x1,5 6HX
In stock
(>10 pcs)
| 041535192100005
EAN: 8595111984902
€50,80
€41,98
excl. VAT
Variant: M 12x1,75 6HX
In stock
(2 pcs)
| 041535192120005
EAN: 8595111984919
€61,13
€50,52
excl. VAT
Product detailed description
Catalogue number: 2960PM
Forming tap with oil grooves, metric, DIN 2174, TiN coated, for structural steels, plain cast steels, free cutting steels, unalloyed aluminium and aluminium alloys with Si<10 %, unalloyed copper
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Powder high speed steel
Coating: Titanium nitride coating
Tap standard: DIN 2174
Thread tolerance: ISO 2 - 6HX
Lead Taper C: Length 2-3 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 15-30 |
| P1.2 | Plain cast steels <500N/mm2 | 15-25 |
| P2.1 | Free-cutting steels <800N/mm2 | 20-30 |
| P2.2 | Structural steels <800N/mm2 | 20-30 |
| N7.1 | Unalloyed aluminium | 15-40 |
| N8.1 | Aluminium alloysSi<10% | 15-40 |
| N9.1 | Pure copper | 15-35 |

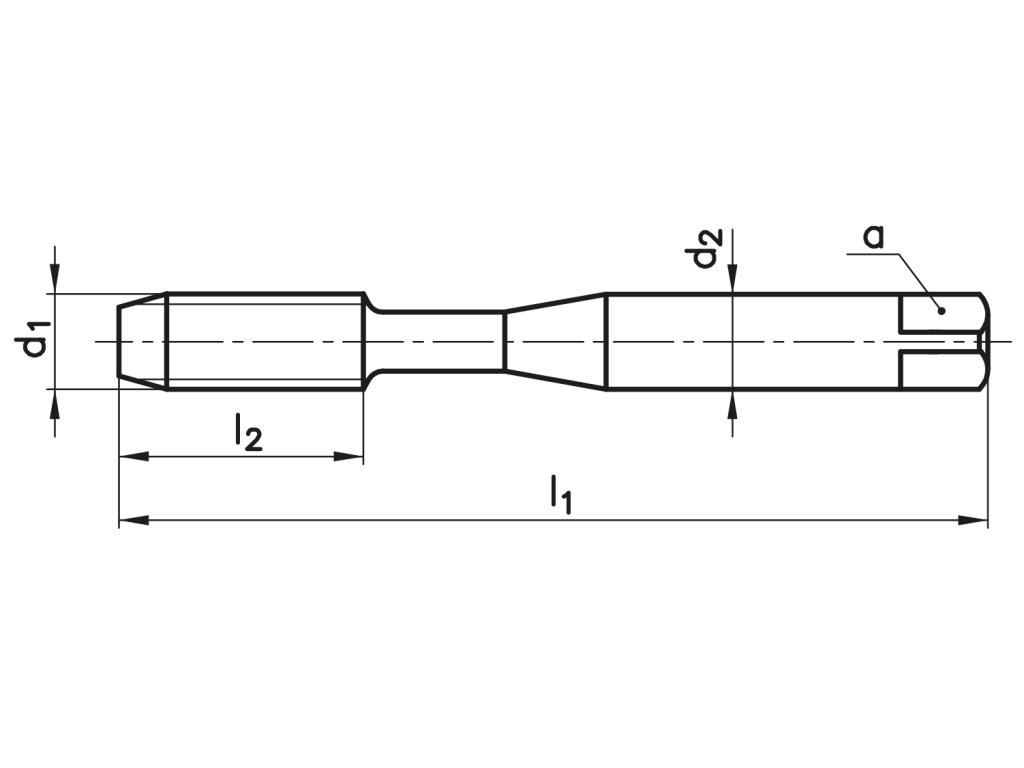

Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6HX | 56 | 11 | 3,5 | 2,7 | 2,8 |
| M 4 | 0,7 | 6HX | 63 | 13 | 4,5 | 3,4 | 3,7 |
| M 5 | 0,8 | 6HX | 70 | 16 | 6 | 4,9 | 4,65 |
| M 6 | 1 | 6HX | 80 | 19 | 6 | 4,9 | 5,55 |
| M 8 | 1,25 | 6HX | 90 | 22 | 8 | 6,2 | 7,45 |
| M 10 | 1,5 | 6HX | 100 | 24 | 10 | 8 | 9,3 |
| M 12 | 1,75 | 6HX | 110 | 28 | 9 | 7 | 11,2 |
Additional parameters
| Category: | Forming taps |
|---|---|
| Coating: | TiN |
| Hole type: | through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1), blind hole (thread length L > 2,5xd1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Aluminium alloysSi<10%, Unalloyed aluminium, Pure copper |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 2174 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6HX |
