2980NXIKZN - Forming tap with

Code: 043038192060090
from €148,19 from €122,47 excl. VAT

Choose variant

Catalogue number: 2980NXIKZN

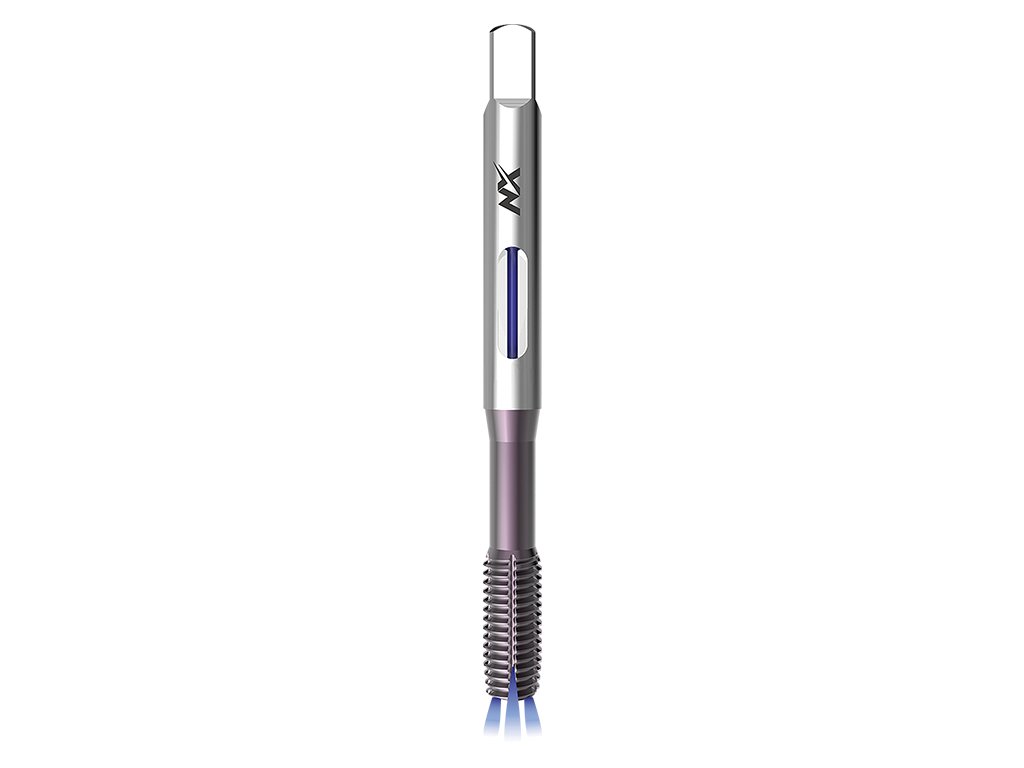

High precision forming tap with radial internal cooling, metric, DIN 2174, TiCN coated, for alloyed steels, possible to use in structural steels, plain cast steels, free cutting steels, aluminium alloys with Si<10 % and alloyed copper.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

Tap material: Cobalt extra high speed steel HSSE Co8%Tap material:   Cobalt extra high speed steel HSSE Co8%

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 2174Tap standard:   DIN 2174

Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

Lead Taper C: Length 2-3 pitchLead Taper C:   Length 2-3 pitch

Cooling method: Internal axial coolant supply with hole outlets in the flutesCooling method:   Internal axial coolant supply with hole outlets in the flutes

Hole type: Blind hole (thread length < 3 d1)Hole type:   Blind hole (thread length < 3 d1)


Detailed information

Variant: M 6x1 6HX
In stock | 043038192060090
€148,19
€122,47 excl. VAT
Variant: M 8x1,25 6HX
Currently unavailable | 043038192080090
€156,27
€129,15 excl. VAT
Variant: M 10x1,5 6HX
In stock | 043038192100090
€171,49
€141,73 excl. VAT
Variant: M 12x1,75 6HX
In stock | 043038192120090
€200,04
€165,32 excl. VAT
Variant: M 14x2 6HX
Currently unavailable | 043038192140090
€234,05
€193,43 excl. VAT
Variant: M 16x2 6HX
Currently unavailable | 043038192160090
€312,10
€257,93 excl. VAT
Variant: M 20x2,5 6HX
Currently unavailable | 043038192200090
€506,84
€418,88 excl. VAT
Variant: M 24x3 6HX
Currently unavailable | 043038192240090
€646,59
€534,37 excl. VAT
Variant: M 27x3 6HX
Currently unavailable | 043038192270090
€744,10
€614,96 excl. VAT
Variant: M 30x3,5 6HX
Currently unavailable | 043038192300090
€844,60
€698,02 excl. VAT

Product detailed description

Catalogue number: 2980NXIKZN

High precision forming tap with radial internal cooling, metric, DIN 2174, TiCN coated, for alloyed steels, possible to use in structural steels, plain cast steels, free cutting steels, aluminium alloys with Si<10 % and alloyed copper.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

Tap material: Cobalt extra high speed steel HSSE Co8%Tap material:   Cobalt extra high speed steel HSSE Co8%

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 2174Tap standard:   DIN 2174

Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

Lead Taper C: Length 2-3 pitchLead Taper C:   Length 2-3 pitch

Cooling method: Internal axial coolant supply with hole outlets in the flutesCooling method:   Internal axial coolant supply with hole outlets in the flutes

Hole type: Blind hole (thread length < 3 d1)Hole type:   Blind hole (thread length < 3 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm220-30
P1.2Plain cast steels <500N/mm220-30
P2.1Free-cutting steels <800N/mm220-30
P2.2Structural steels <800N/mm220-30
P2.3Plain cast steels <800N/mm220-30
P3.1Case hardened and nitriding steels <1200N/mm28-15
P3.2Heat-treated steels <1200N/mm28-15
P3.3Tool steels <1200N/mm28-15
P4.1High-alloyed steels <1400N/mm28-15
P4.2Heat-treated steels <1400N/mm28-15
N8.1Aluminium alloysSi<10%20-40
N8.2Aluminium alloysSi<10%20-40
N10.1Short chipping copper alloys15-22
N10.2Long chipping copper alloys15-22



Dimensions:

2980NXIKZN: kreslenka
d1Ptoll1l2d2ahole
M 616HX801064,95,55
M 81,256HX901286,27,4
M 101,56HX100151089,3
M 121,756HX110179711,2
M 1426HX1102011913
M 1626HX1102012915
M 202,56HX14020161218,8
M 2436HX160241814,522,5
M 2736HX16018201625,5
M 303,56HX18021221828,2

Additional parameters

Category: Forming taps
Coating: TiCN
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1), blind hole (thread length L > 2,5xd1), through hole (thread length L < 0,8xd1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Short chipping copper alloys, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
Product line: NX Precision Taps Product Line
Standard: DIN 2174
Thread type: Metric ISO Thread
Tolerance: 6HX
