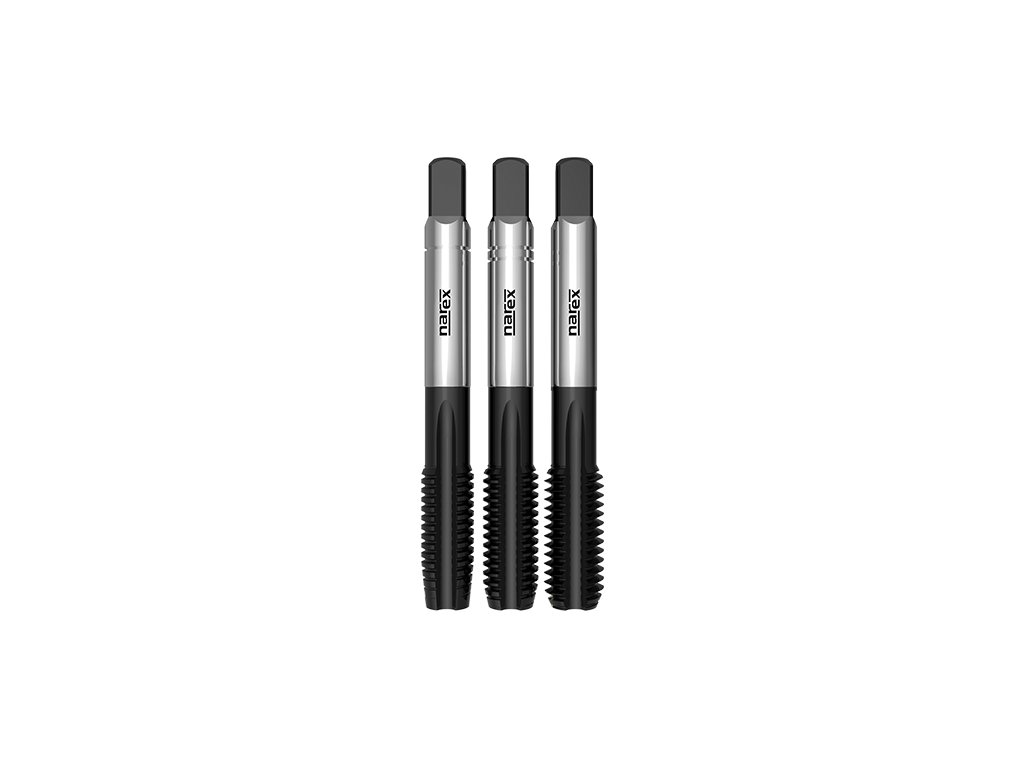

0290B - Hand tap

Code: 0415370820301B0
from €9,60 from €7,93 excl. VAT

Choose variant

Catalogue number: 0290B

Hand tap, metric, DIN 352, steam oxided, stainless steels and heat resisting steels, grey cast iron, spheroidal and malleable cast iron.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: OxidationCoating:   Oxidation

Tap standard: DIN 352Tap standard:   DIN 352

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: M 3x0,5 6H I
Currently unavailable | 0415370820301B0
€9,60
€7,93 excl. VAT
Variant: M 3x0,5 6H SET
Currently unavailable | 0415370820308B0
€28,79
€23,79 excl. VAT
Variant: M 4x0,7 6H I
Currently unavailable | 0415370820401B0
€9,60
€7,93 excl. VAT
Variant: M 4x0,7 6H SET
Currently unavailable | 0415370820408B0
€28,79
€23,79 excl. VAT
Variant: M 5x0,8 6H I
Currently unavailable | 0415370820501B0
€9,86
€8,15 excl. VAT
Variant: M 5x0,8 6H SET
Currently unavailable | 0415370820508B0
€29,58
€24,45 excl. VAT
Variant: M 6x1 6H I
In stock | 0415370820601B0
€10,07
€8,32 excl. VAT
Variant: M 6x1 6H SET
Currently unavailable | 0415370820608B0
€30,20
€24,96 excl. VAT
Variant: M 8x1,25 6H I
Currently unavailable | 0415370820801B0
€11,43
€9,45 excl. VAT
Variant: M 8x1,25 6H SET
Currently unavailable | 0415370820808B0
€34,30
€28,35 excl. VAT
Variant: M 10x1,5 6H I
In stock | 0415370821001B0
€14,58
€12,05 excl. VAT
Variant: M 10x1,5 6H SET
Currently unavailable | 0415370821008B0
€43,74
€36,15 excl. VAT
Variant: M 12x1,75 6H I
In stock | 0415370821201B0
€18,77
€15,51 excl. VAT
Variant: M 12x1,75 6H SET
Currently unavailable | 0415370821208B0
€56,30
€46,53 excl. VAT
Variant: M 14x2 6H I
In stock | 0415370821401B0
€23,90
€19,75 excl. VAT
Variant: M 14x2 6H SET
Currently unavailable | 0415370821408B0
€71,69
€59,25 excl. VAT
Variant: M 16x2 6H I
Currently unavailable | 0415370821601B0
€28,62
€23,65 excl. VAT
Variant: M 16x2 6H SET
Currently unavailable | 0415370821608B0
€85,85
€70,95 excl. VAT
Variant: M 18x2,5 6H I
Currently unavailable | 0415370821801B0
€41,56
€34,35 excl. VAT
Variant: M 18x2,5 6H SET
Currently unavailable | 0415370821808B0
€124,69
€103,05 excl. VAT
Variant: M 20x2,5 6H I
Currently unavailable | 0415370822001B0
€43,28
€35,77 excl. VAT
Variant: M 20x2,5 6H SET
Currently unavailable | 0415370822008B0
€129,85
€107,31 excl. VAT

Product detailed description

Catalogue number: 0290B

Hand tap, metric, DIN 352, steam oxided, stainless steels and heat resisting steels, grey cast iron, spheroidal and malleable cast iron.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: OxidationCoating:   Oxidation

Tap standard: DIN 352Tap standard:   DIN 352

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
M5.1Stainless steels 450-800N/mm2
M5.2Stainless steels 600-1000N/mm2
K6.1Grey cast iron
K6.2Spher. graphite and mall. cast iron



Dimensions:

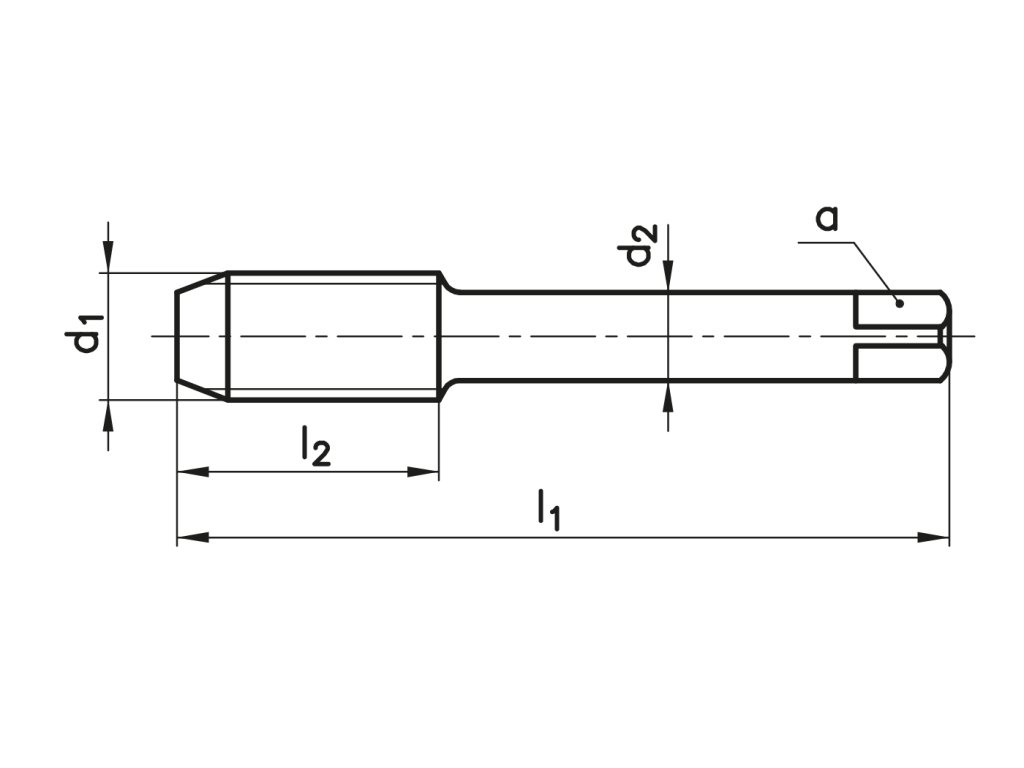

0290B: kreslenka
d1Ptoll1l2d2ahole
M 30,56H40113,52,72,5
M 40,76H45134,53,43,3
M 50,86H501664,94,2
M 616H561964,95
M 81,256H632264,96,8
M 101,56H702475,58,5
M 121,756H75299710,2
M 1426H803011912
M 1626H803212914
M 182,56H9540141115,5
M 202,56H9540161217,5

Additional parameters

Category: Hand taps
Coating: OX
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1)
Machined material: Grey cast iron, Spher. graphite and mall. cast iron, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2
Product line: NAREX Zdanice Product Line
Standard: DIN 352
Thread type: Metric ISO Thread
Tolerance: 6H
