0302 - Hand tap

Code: 041530030003100
from €17,21 from €14,22 excl. VAT

Choose variant

Catalogue number: 0302

Hand tap, british standard pipe thread, DIN 5157, suitable for structural steels, plain cast steels, free cutting steels, grey cast iron, spheroidal and malleable cast iron, aluminium alloys, short chipping copper alloys



Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: High speed steel HSSTap material:   High speed steel HSS

Tap standard: DIN 5157Tap standard:   DIN 5157

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: G 1/8"x28 I
In stock (>10 pcs) | 041530030003100
€17,21
€14,22 excl. VAT
Variant: G 1/8"x28 III
In stock (>10 pcs) | 041530030003300
€17,21
€14,22 excl. VAT
Variant: G 1/8"x28 SET
In stock (>10 pcs) | 041530030003800
€34,41
€28,44 excl. VAT
Variant: G 1/4"x19 I
In stock (>10 pcs) | 041530030007100
€22,75
€18,80 excl. VAT
Variant: G 1/4"x19 III
In stock (>10 pcs) | 041530030007300
€22,75
€18,80 excl. VAT
Variant: G 1/4"x19 SET
In stock (>10 pcs) | 041530030007800
€45,50
€37,60 excl. VAT
Variant: G 3/8"x19 I
In stock (>10 pcs) | 041530030011100
€27,16
€22,45 excl. VAT
Variant: G 3/8"x19 III
In stock (>10 pcs) | 041530030011300
€27,16
€22,45 excl. VAT
Variant: G 3/8"x19 SET
In stock (>10 pcs) | 041530030011800
€54,33
€44,90 excl. VAT
Variant: G 1/2"x14 I
In stock (>10 pcs) | 041530030013100
€39,23
€32,42 excl. VAT
Variant: G 1/2"x14 III
In stock (>10 pcs) | 041530030013300
€39,23
€32,42 excl. VAT
Variant: G 1/2"x14 SET
In stock (>10 pcs) | 041530030013800
€78,46
€64,84 excl. VAT
Variant: G 5/8"x14 I
In stock (>10 pcs) | 041530030015100
€47,46
€39,22 excl. VAT
Variant: G 5/8"x14 III
In stock (>10 pcs) | 041530030015300
€47,46
€39,22 excl. VAT
Variant: G 5/8"x14 SET
Currently unavailable | 041530030015800
€94,91
€78,44 excl. VAT
Variant: G 3/4"x14 I
In stock (>10 pcs) | 041530030017100
€57,48
€47,50 excl. VAT
Variant: G 3/4"x14 III
In stock (>10 pcs) | 041530030017300
€57,48
€47,50 excl. VAT
Variant: G 3/4"x14 SET
In stock (5 pcs) | 041530030017800
€114,95
€95 excl. VAT
Variant: G 7/8"x14 I
In stock (>10 pcs) | 041530030019100
€76,05
€62,85 excl. VAT
Variant: G 7/8"x14 III
In stock (>10 pcs) | 041530030019300
€76,05
€62,85 excl. VAT
Variant: G 7/8"x14 SET
In stock (3 pcs) | 041530030019800
€152,10
€125,70 excl. VAT
Variant: G 1"x11 I
In stock (>10 pcs) | 041530030021100
€93,86
€77,57 excl. VAT
Variant: G 1"x11 III
In stock (>10 pcs) | 041530030021300
€93,86
€77,57 excl. VAT
Variant: G 1"x11 SET
In stock (10 pcs) | 041530030021800
€187,72
€155,14 excl. VAT
Variant: G 1 1/8"x11 I
In stock (3 pcs) | 041530030022100
€141,91
€117,28 excl. VAT
Variant: G 1 1/8"x11 III
In stock (8 pcs) | 041530030022300
€141,91
€117,28 excl. VAT
Variant: G 1 1/8"x11 SET
Currently unavailable | 041530030022800
€283,82
€234,56 excl. VAT
Variant: G 1 1/4"x11 I
Currently unavailable | 041530030023100
€153,05
€126,49 excl. VAT
Variant: G 1 1/4"x11 III
Currently unavailable | 041530030023300
€153,05
€126,49 excl. VAT
Variant: G 1 1/4"x11 SET
In stock (2 pcs) | 041530030023800
€306,11
€252,98 excl. VAT
Variant: G 1 3/8"x11 I
In stock (2 pcs) | 041530030024100
€188,75
€155,99 excl. VAT
Variant: G 1 3/8"x11 III
Currently unavailable | 041530030024300
€188,75
€155,99 excl. VAT
Variant: G 1 3/8"x11 SET
In stock (1 pcs) | 041530030024800
€377,50
€311,98 excl. VAT
Variant: G 1 1/2"x11 I
In stock (5 pcs) | 041530030025100
€194,45
€160,70 excl. VAT
Variant: G 1 1/2"x11 III
In stock (3 pcs) | 041530030025300
€194,45
€160,70 excl. VAT
Variant: G 1 1/2"x11 SET
In stock (2 pcs) | 041530030025800
€388,89
€321,40 excl. VAT
Variant: G 1 3/4"x11 I
In stock (>10 pcs) | 041530030027100
€256,04
€211,60 excl. VAT
Variant: G 1 3/4"x11 III
In stock (>10 pcs) | 041530030027300
€256,04
€211,60 excl. VAT
Variant: G 1 3/4"x11 SET
In stock (3 pcs) | 041530030027800
€512,07
€423,20 excl. VAT
Variant: G 2"x11 I
In stock (>10 pcs) | 041530030029100
€288,68
€238,58 excl. VAT
Variant: G 2"x11 III
In stock (>10 pcs) | 041530030029300
€288,68
€238,58 excl. VAT
Variant: G 2"x11 SET
In stock (1 pcs) | 041530030029800
€577,36
€477,16 excl. VAT

Product detailed description

Catalogue number: 0302

Hand tap, british standard pipe thread, DIN 5157, suitable for structural steels, plain cast steels, free cutting steels, grey cast iron, spheroidal and malleable cast iron, aluminium alloys, short chipping copper alloys



Features:

Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: High speed steel HSSTap material:   High speed steel HSS

Tap standard: DIN 5157Tap standard:   DIN 5157

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm2
P1.2Plain cast steels <500N/mm2
P2.1Free-cutting steels <800N/mm2
P2.2Structural steels <800N/mm2
P2.3Plain cast steels <800N/mm2
K6.1Grey cast iron
K6.2Spher. graphite and mall. cast iron
N8.1Aluminium alloysSi<10%
N8.2Aluminium alloysSi<10%
N10.1Short chipping copper alloys



Dimensions:

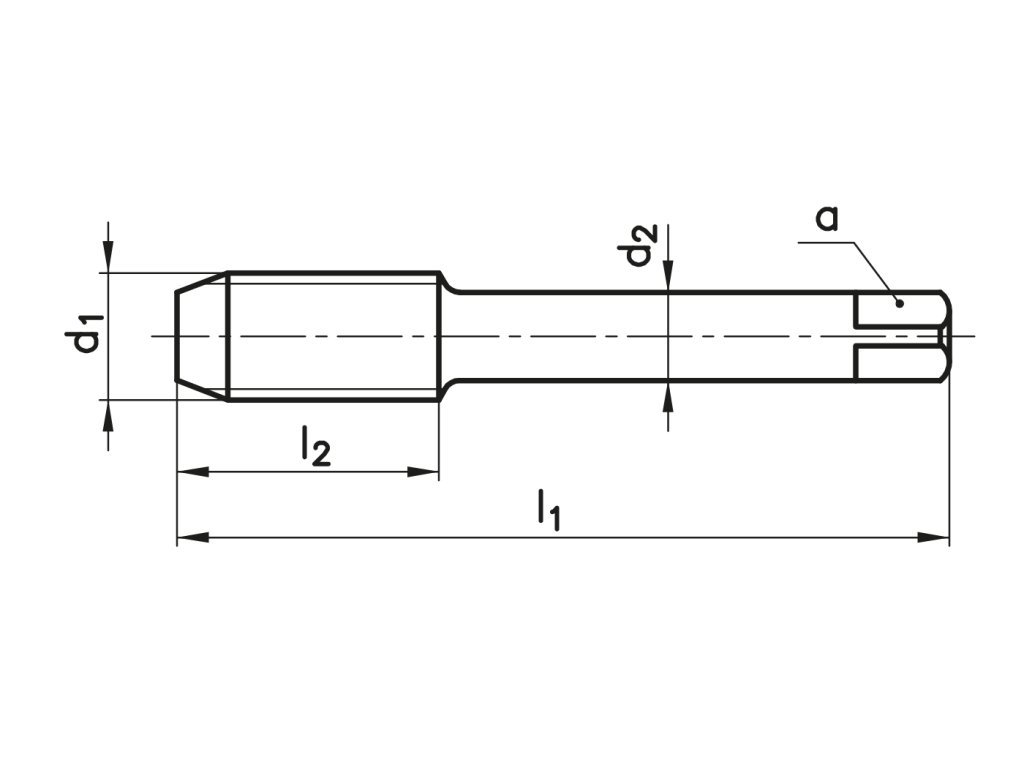

0302: kreslenka
d1Ptoll1l2d2ahole
G 1/8"28631875,58,8
G 1/4"19702011911,8
G 3/8"19702012915,25
G 1/2"148022161219
G 5/8"1480221814,521
G 3/4"149022201624,5
G 7/8"149022221828,25
G 1"1110025252030,75
G 1 1/8"1112530282235,5
G 1 1/4"1112530322439,5
G 1 3/8"1112530362941,8
G 1 1/2"1114030362945,25
G 1 3/4"1114032403251,3
G 2"1116036453557,2

Additional parameters

Category: Hand taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN 5157
Thread type: Pipe Thread
Tolerance: -
