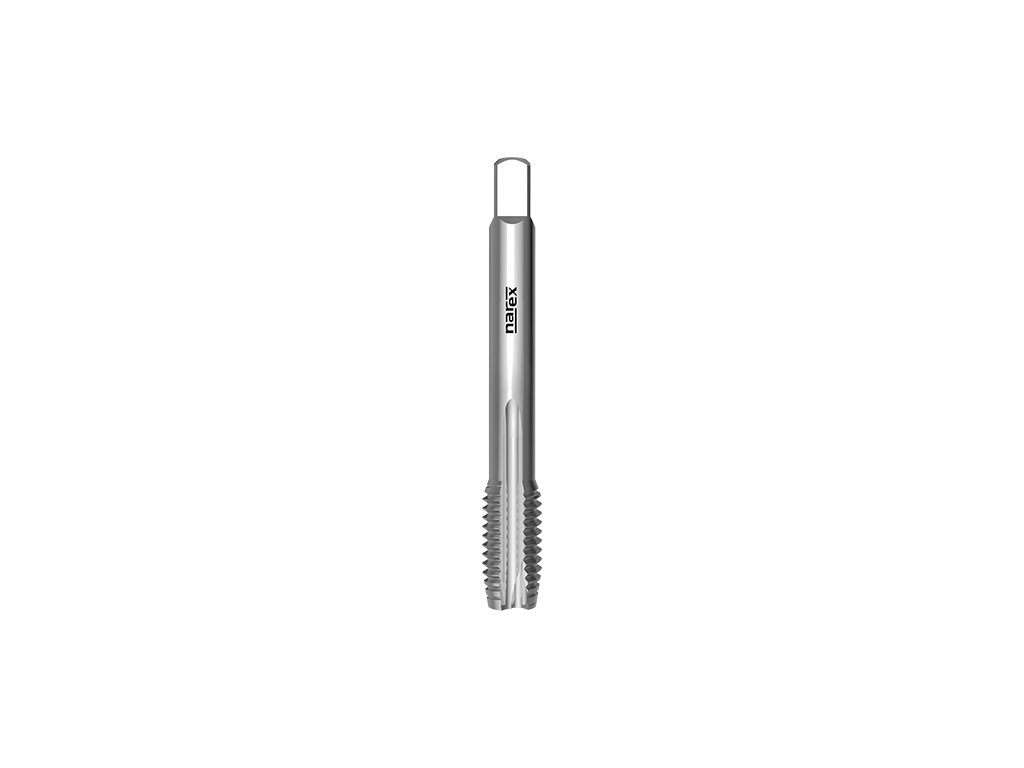

0550 - Short machine tap with straight flutes and spiral point

Code: 041530062030000
from €8,29 from €6,85 excl. VAT

Choose variant

Catalogue number: 0550

Short machine tap with straight flutes and spiral point, metric, DIN 352, suitable for structural steels, plain cast steels, free cutting steels, possible use in short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys Si<10 %



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 352Tap standard:   DIN 352

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 3x0,5 6H
In stock | 041530062030000
€8,29
€6,85 excl. VAT
Variant: M 4x0,7 6H
In stock | 041530062040000
€8,55
€7,07 excl. VAT
Variant: M 5x0,8 6H
In stock | 041530062050000
€8,97
€7,41 excl. VAT
Variant: M 6x1 6H
In stock | 041530062060000
€8,97
€7,41 excl. VAT
Variant: M 8x1,25 6H
In stock | 041530062080000
€10,27
€8,49 excl. VAT
Variant: M 10x1,5 6H
In stock | 041530062100000
€12,26
€10,13 excl. VAT
Variant: M 12x1,75 6H
In stock | 041530062120000
€14,52
€12 excl. VAT

Product detailed description

Catalogue number: 0550

Short machine tap with straight flutes and spiral point, metric, DIN 352, suitable for structural steels, plain cast steels, free cutting steels, possible use in short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys Si<10 %



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 352Tap standard:   DIN 352

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm25-8
P1.2Plain cast steels <500N/mm26-10
P2.1Free-cutting steels <800N/mm210-14
P2.2Structural steels <800N/mm210-14
P2.3Plain cast steels <800N/mm210-14
K6.2Spher. graphite and mall. cast iron4-7
N8.1Aluminium alloysSi<10%14-20
N8.2Aluminium alloysSi<10%12-15
N10.1Short chipping copper alloys12-20

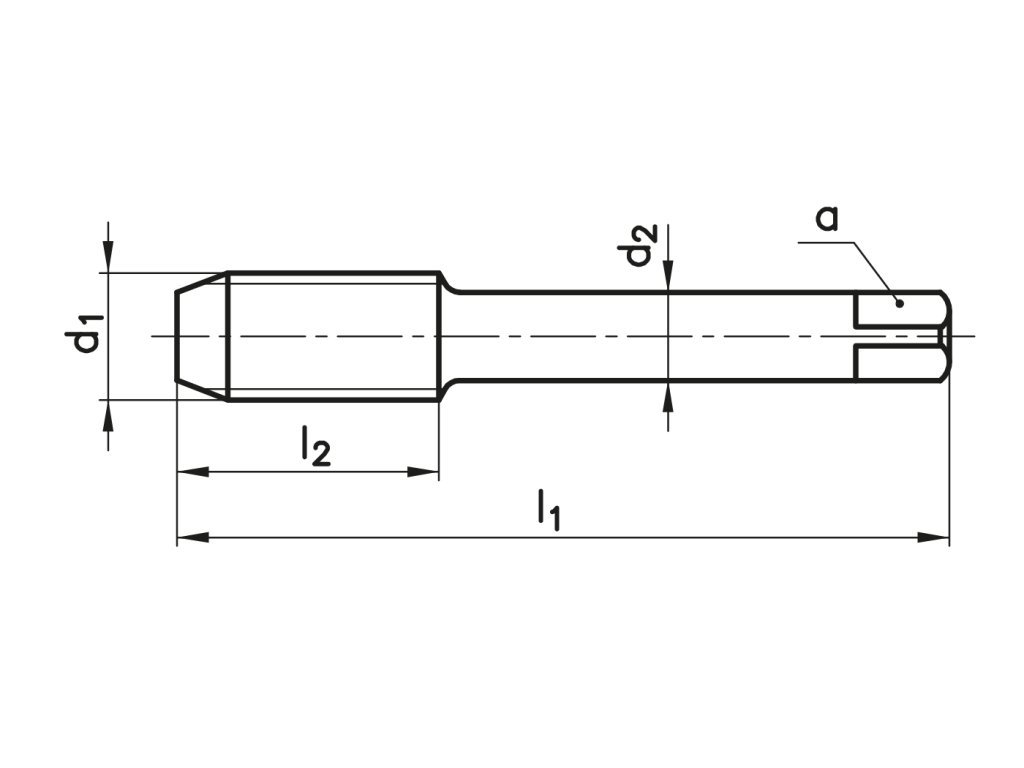

Dimensions:

0550: kreslenka
d1Ptoll1l2d2ahole
M 30,56H4093,52,72,5
M 40,76H45124,53,43,3
M 50,86H501364,94,2
M 616H561564,95
M 81,256H631864,96,8
M 101,56H702075,58,5
M 121,756H75239710,2

Additional parameters

Category: Machine taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN 352
Thread type: Metric ISO Thread
Tolerance: 6H
