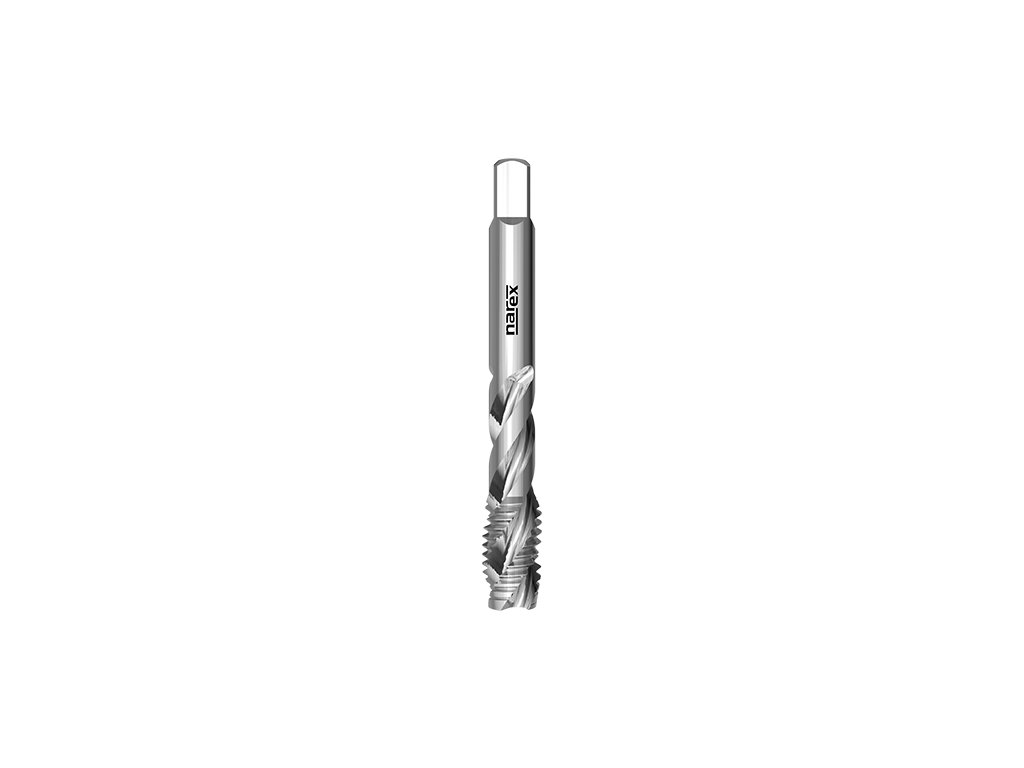

0600 - Short machine tap with right-hand spiral flutes 40°
Code: 041530066030000
Variant: M 3x0,5 6H
In stock
(>10 pcs)
| 041530066030000
€9,87
€8,16
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 041530066040000
€9,87
€8,16
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 041530066050000
€10,02
€8,28
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 041530066060000
€10,49
€8,67
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 041530066080000
€12,20
€10,08
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 041530066100000
€14,30
€11,82
excl. VAT
Variant: M 12x1,75 6H
In stock
(>10 pcs)
| 041530066120000
€17,58
€14,53
excl. VAT
Product detailed description
Catalogue number: 0600
Short machine tap with right-hand spiral flutes, metric, DIN 352, suitable for structural steels and heat-treated steels, plain casted steels,spheroidal graphite and malleable cast iron, alluminium alloys Si<10 % and long chipping copper alloys
Features:
![Thread M: ISO Metric coarse thread](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1001.png)
![Profile sketch: 60°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1085.png)
![Thread standard: DIN 13](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1040.png)
![Type N: Tap for steels up to 800 N/mm2](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1010.png)
![Tap material: Super high speed steel](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1050.png)
![Tap standard: DIN 352](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1025.png)
![Thread tolerance: ISO 2 - 6H](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1070.png)
![Chamfer C: Length 2-3 pitch](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1060.png)
![Spiral flute angle: 40°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1112.png)
![Hole type: Blind hole (thread length < 2 d1)](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1104.png)
Machined materials:
Group | Machined material | Cutting speed |
---|---|---|
P2.2 | Structural steels <800N/mm2 | 10-14 |
P2.3 | Plain cast steels <800N/mm2 | 10-14 |
K6.2 | Spher. graphite and mall. cast iron | 4-7 |
N8.1 | Aluminium alloysSi<10% | 14-20 |
N10.2 | Long chipping copper alloys | 6-10 |
Dimensions:
![0600: kreslenka](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/kreslenky/0200.png)
d1 | P | tol | l1 | l2 | d2 | a | hole |
---|---|---|---|---|---|---|---|
M 3 | 0,5 | 6H | 40 | 5 | 3,5 | 2,7 | 2,5 |
M 4 | 0,7 | 6H | 45 | 7 | 4,5 | 3,4 | 3,3 |
M 5 | 0,8 | 6H | 50 | 8 | 6 | 4,9 | 4,2 |
M 6 | 1 | 6H | 56 | 10 | 6 | 4,9 | 5 |
M 8 | 1,25 | 6H | 63 | 13 | 6 | 4,9 | 6,8 |
M 10 | 1,5 | 6H | 70 | 15 | 7 | 5,5 | 8,5 |
M 12 | 1,75 | 6H | 75 | 18 | 9 | 7 | 10,2 |
Additional parameters
Category: | Machine taps |
---|---|
Coating: | - |
Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
Machined material: | Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Long chipping copper alloys |
Product line: | NAREX Zdanice Product Line |
Standard: | DIN 352 |
Thread type: | Metric ISO Thread |
Tolerance: | 6H |
