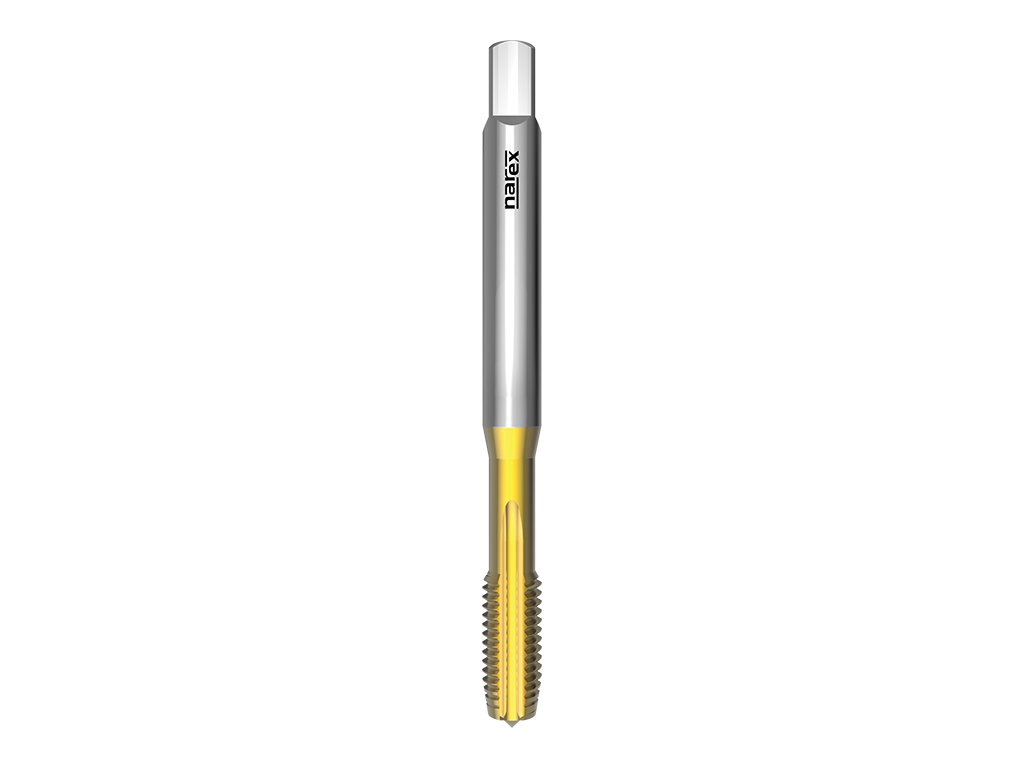

1014 - Machine tap with straight flutes

Code: 041535810003000
from €17,97 from €14,85 excl. VAT

Choose variant

Catalogue number: 1014

Machine tap with straight flutes, uniffied national coarse thread, DIN 371, TiN coated, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %.



Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 371Tap standard:   ~ DIN 371

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)


Detailed information

Variant: UNC 5x40 2B
In stock (3 pcs) | 041535810002000
€19,15
€15,83 excl. VAT
Variant: UNC 6x32 2B
Currently unavailable | 041535810003000
€17,97
€14,85 excl. VAT
Variant: UNC 8x32 2B
In stock (5 pcs) | 041535810004000
€17,97
€14,85 excl. VAT
Variant: UNC 10x24 2B
Currently unavailable | 041535810005000
€19,15
€15,83 excl. VAT
Variant: UNC 12x24 2B
In stock (6 pcs) | 041535810006000
€21,32
€17,62 excl. VAT
Variant: UNC 1/4x20 2B
In stock (3 pcs) | 041535810007000
€20,65
€17,07 excl. VAT
Variant: UNC 5/16x18 2B
In stock (2 pcs) | 041535810009000
€22,89
€18,92 excl. VAT
Variant: UNC 3/8x16 2B
In stock (>10 pcs) | 041535810011000
€25,36
€20,96 excl. VAT

Product detailed description

Catalogue number: 1014

Machine tap with straight flutes, uniffied national coarse thread, DIN 371, TiN coated, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %.



Features:

Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 371Tap standard:   ~ DIN 371

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm25-8
P2.1Free-cutting steels <800N/mm210-14
K6.1Grey cast iron8-12
N8.2Aluminium alloysSi<10%14-20
N10.1Short chipping copper alloys15-25



Dimensions:

1014: kreslenka
d1Ptoll1l2d2ahole
UNC 5402B5693,52,72,6
UNC 6322B5611432,85
UNC 8322B63124,53,43,5
UNC 10242B701364,93,9
UNC 12242B801564,94,5
UNC 1/4202B801575,25,2
UNC 5/16182B901886,26,6
UNC 3/8162B9020978

Additional parameters

Category: Machine taps
Coating: TiN
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <500N/mm2, Free-cutting steels <800N/mm2, Grey cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈371
Thread type: Unified Course Thread UNC
Tolerance: 2B
