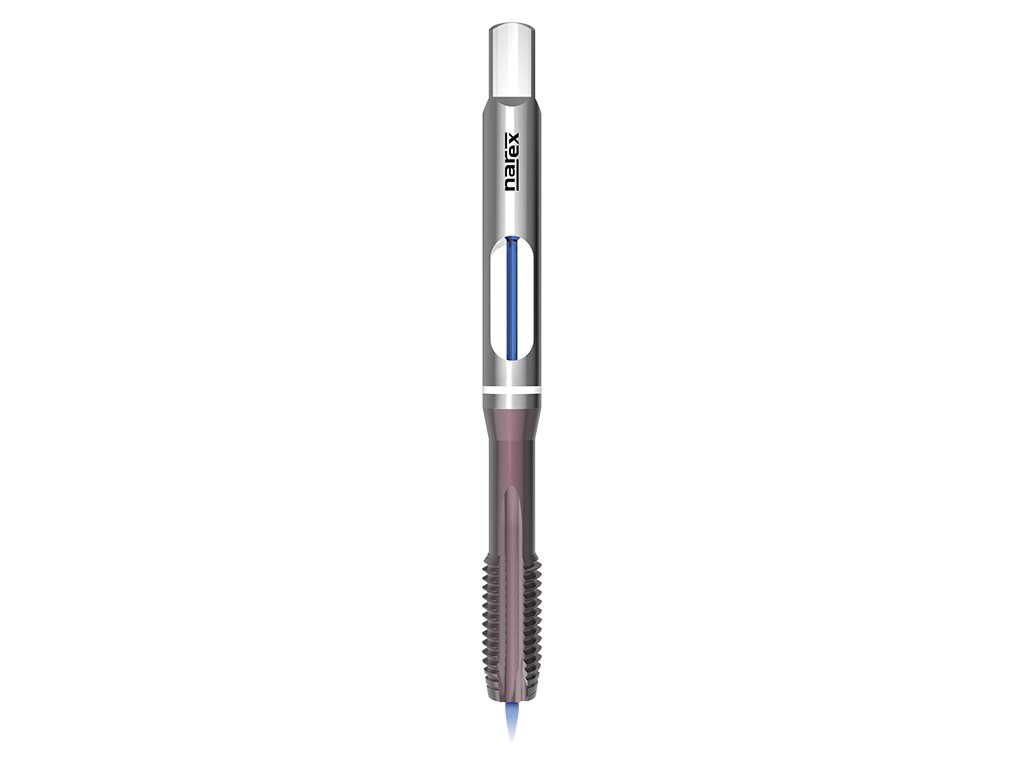

1080IKZ - Machine tap with straight flutes

Code: 041638029050000
from €45,86 from €37,90 excl. VAT

Choose variant

Catalogue number: 1080IKZ

Machine tap with straight flutes with axial internal cooling, metric, DIN 371, TiCN coated, suitable for grey cast iron, aluminium alloys with Si>10 %.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type GG: Tap for cast ironType GG:   Tap for cast iron

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Cooling method: Internal axial coolant supplyCooling method:   Internal axial coolant supply

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: M 5x0,8 6HX
Currently unavailable | 041638029050000
€45,86
€37,90 excl. VAT
Variant: M 6x1 6HX
In stock | 041638029060000
€49,31
€40,75 excl. VAT
Variant: M 8x1,25 6HX
In stock | 041638029080000
€51,49
€42,55 excl. VAT
Variant: M 10x1,5 6HX
In stock | 041638029100000
€59,11
€48,85 excl. VAT

Product detailed description

Catalogue number: 1080IKZ

Machine tap with straight flutes with axial internal cooling, metric, DIN 371, TiCN coated, suitable for grey cast iron, aluminium alloys with Si>10 %.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type GG: Tap for cast ironType GG:   Tap for cast iron

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Cooling method: Internal axial coolant supplyCooling method:   Internal axial coolant supply

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
K6.1Grey cast iron15-20
N8.2Aluminium alloysSi<10%12-20



Dimensions:

1080IKZ: kreslenka
d1Ptoll1l2d2ahole
M 50,86HX701364,94,2
M 616HX801564,95
M 81,256HX901886,26,8
M 101,56HX100201088,5

Additional parameters

Category: Machine taps
Coating: TiCN
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Grey cast iron, Aluminium alloysSi<10%
Product line: NAREX Zdanice Product Line
Standard: DIN 371
Thread type: Metric ISO Thread
Tolerance: 6HX
