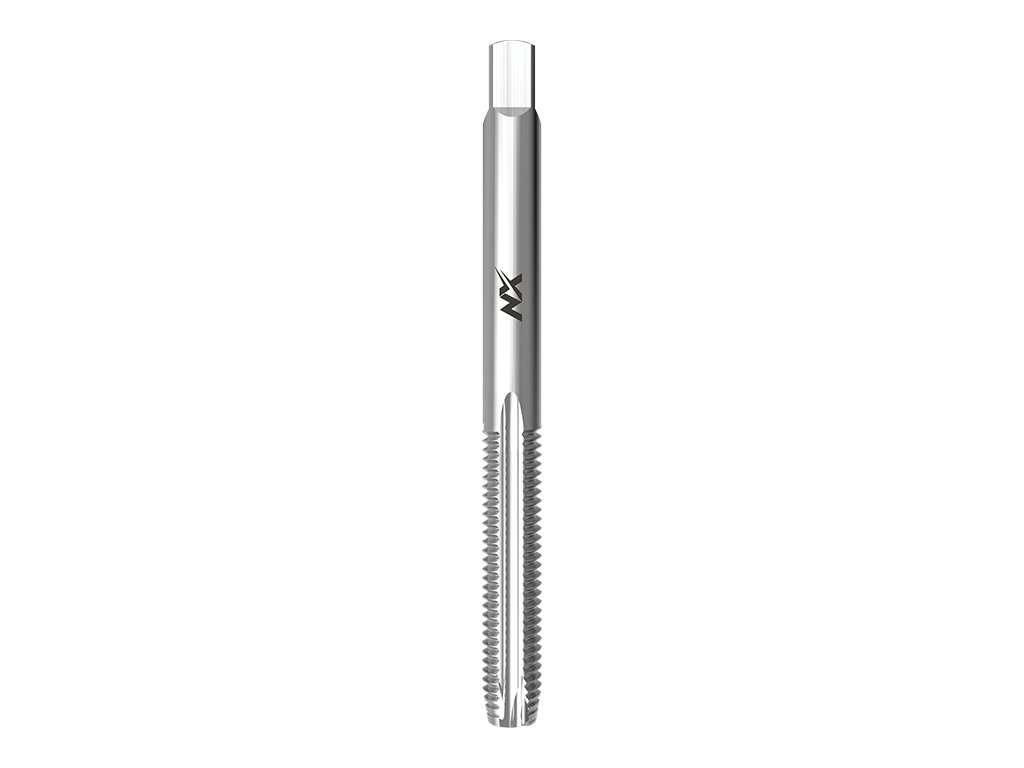

1350NX - Machine tap with straight flutes and spiral point
Code: 042031091030000
Variant: M 3x0,5 6H
In stock
| 042031091030000
€70,14
€57,97
excl. VAT
Variant: M 4x0,7 6H
Currently unavailable
| 042031091040000
€71,63
€59,20
excl. VAT
Variant: M 5x0,8 6H
In stock
| 042031091050000
€74,20
€61,32
excl. VAT
Variant: M 6x1 6H
In stock
| 042031091060000
€74,78
€61,80
excl. VAT
Variant: M 8x1,25 6H
In stock
| 042031091080000
€84,51
€69,84
excl. VAT
Variant: M 10x1,5 6H
In stock
| 042031091100000
€100,38
€82,96
excl. VAT
Product detailed description
Catalogue number: 1350NX
High precision machine tap, metric, with straight flutes and spiral point, DIN 371, for nickel alloys.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type Ni: Tap for nickel alloys
Tap material: Powder high speed steel
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| S13.1 | Nickel | 5-8 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 12 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 16 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 19 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 23 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 30 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 38 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | - |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Nickel |
| Product line: | NX Precision Taps Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
