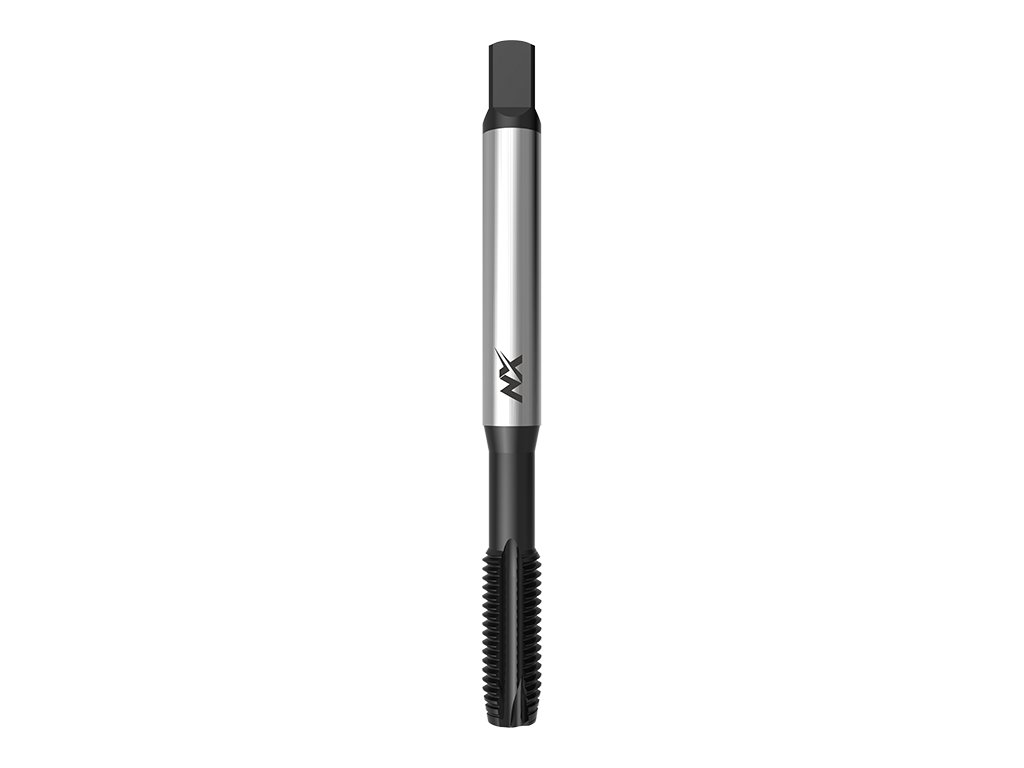

1440NX - Machine tap with straight flutes and spiral point
Code: 042037095030000
Variant: M 3x0,5 6H
In stock
(5 pcs)
| 042037095030000
EAN: 8595111982564
€54,12
€44,73
excl. VAT
Variant: M 4x0,7 6H
Currently unavailable
| 042037095040000
EAN: 8595111983462
€55,82
€46,13
excl. VAT
Variant: M 5x0,8 6H
In stock
(3 pcs)
| 042037095050000
EAN: 8595111983479
€57,26
€47,32
excl. VAT
Variant: M 6x1 6H
Currently unavailable
| 042037095060000
EAN: 8595111983486
€57,26
€47,32
excl. VAT
Variant: M 8x1,25 6H
In stock
(2 pcs)
| 042037095080000
EAN: 8595111983493
€66,15
€54,67
excl. VAT
Variant: M 10x1,5 6H
In stock
(2 pcs)
| 042037095100000
EAN: 8595111983509
€81,90
€67,69
excl. VAT
Product detailed description
Catalogue number: 1440NX
High precision machine tap, metric, with straight flutes and spiral point, DIN 371, steam oxided, for titanium alloys.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type Ti: Tap for titanium and titanium alloys
Tap material: Powder high speed steel
Coating: Oxidation
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| S12.1 | Titanium alloys | 5-8 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 11 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 13 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 16 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 19 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 22 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 24 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | OX |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Titanium alloys |
| Product line: | NX Precision Taps Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
