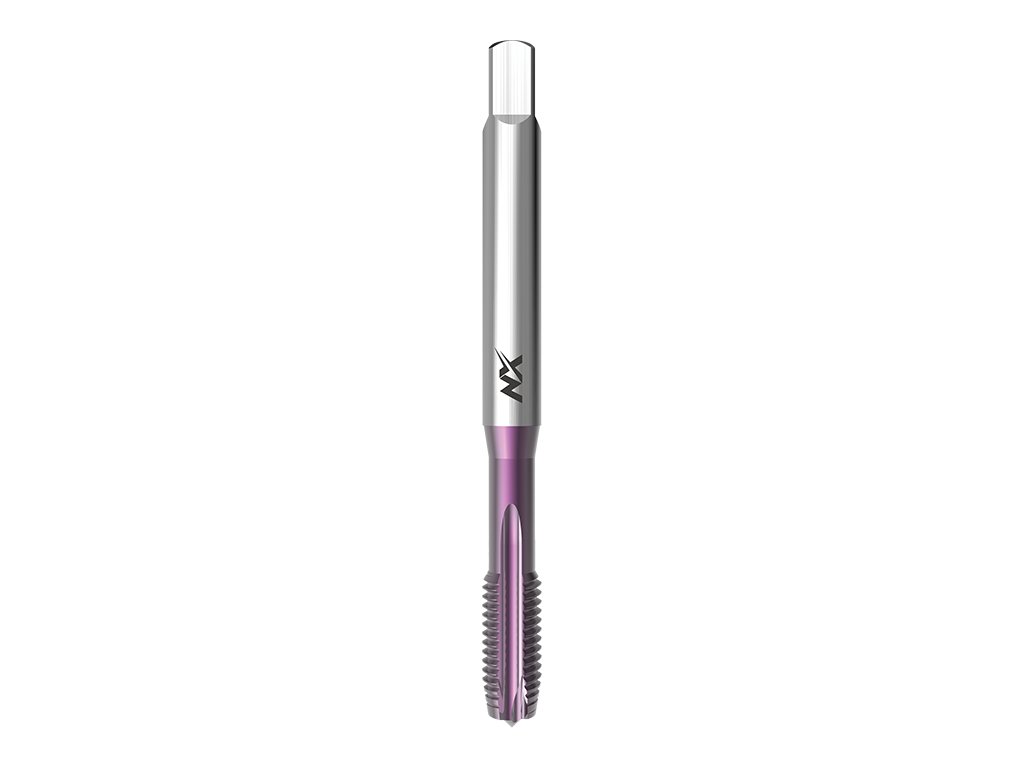

1520NX - Machine tap with straight flutes and spiral point
Code: 042036052030000
Variant: M 3x0,5 6H
In stock
| 042036052030000
€36,24
€29,95
excl. VAT
Variant: M 4x0,7 6H
In stock
| 042036052040000
€36,24
€29,95
excl. VAT
Variant: M 5x0,8 6H
In stock
| 042036052050000
€38,27
€31,63
excl. VAT
Variant: M 6x1 6H
In stock
| 042036052060000
€38,27
€31,63
excl. VAT
Variant: M 8x1,25 6H
In stock
| 042036052080000
€48,59
€40,16
excl. VAT
Variant: M 10x1,5 6H
In stock
| 042036052100000
€57,92
€47,87
excl. VAT
Product detailed description
Catalogue number: 1520NX
High precision machine tap, metric, with straight flute and spiral point, DIN 371, TiAlN coated, suitable for construction steels, cast steels, free cutting steels, structural steels.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Vanadium extra high speed steel HSSE V3
Coating: TiAlN
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 15-22 |
| P1.2 | Plain cast steels <500N/mm2 | 15-22 |
| P2.1 | Free-cutting steels <800N/mm2 | 12-20 |
| P2.2 | Structural steels <800N/mm2 | 12-20 |
| P2.3 | Plain cast steels <800N/mm2 | 12-20 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 11 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 13 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 16 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 19 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 22 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 24 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiAlN |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2 |
| Product line: | NX Precision Taps Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
