1540NX - Machine tap with straight flutes and spiral point
Code: 042037052030000
Variant: M 3x0,5 6H
In stock
(>10 pcs)
| 042037052030000
EAN: 8595111980164
€26,83
€22,17
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 042037052040000
EAN: 8595111980171
€27,10
€22,40
excl. VAT
Variant: M 5x0,8 6H
In stock
(6 pcs)
| 042037052050000
EAN: 8595111980188
€29,81
€24,64
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 042037052060000
EAN: 8595111980195
€29,81
€24,64
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 042037052080000
EAN: 8595111980201
€39,60
€32,73
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 042037052100000
EAN: 8595111980218
€47,07
€38,90
excl. VAT
Product detailed description
Catalogue number: 1540NX
High precision machine tap, metric, with straight flute and spiral point, DIN 371, steam oxided, suitable for construction steels, cast steels, free cutting steels, structural steels, aluminium alloys Si<10%.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Vanadium extra high speed steel HSSE V3
Coating: Oxidation
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 10-15 |
| P1.2 | Plain cast steels <500N/mm2 | 12-15 |
| P2.1 | Free-cutting steels <800N/mm2 | 10-15 |
| P2.2 | Structural steels <800N/mm2 | 10-15 |
| P2.3 | Plain cast steels <800N/mm2 | 10-15 |
| N7.1 | Unalloyed aluminium | 12-15 |
| N8.1 | Aluminium alloysSi<10% | 12-15 |
| N8.2 | Aluminium alloysSi<10% | 12-15 |

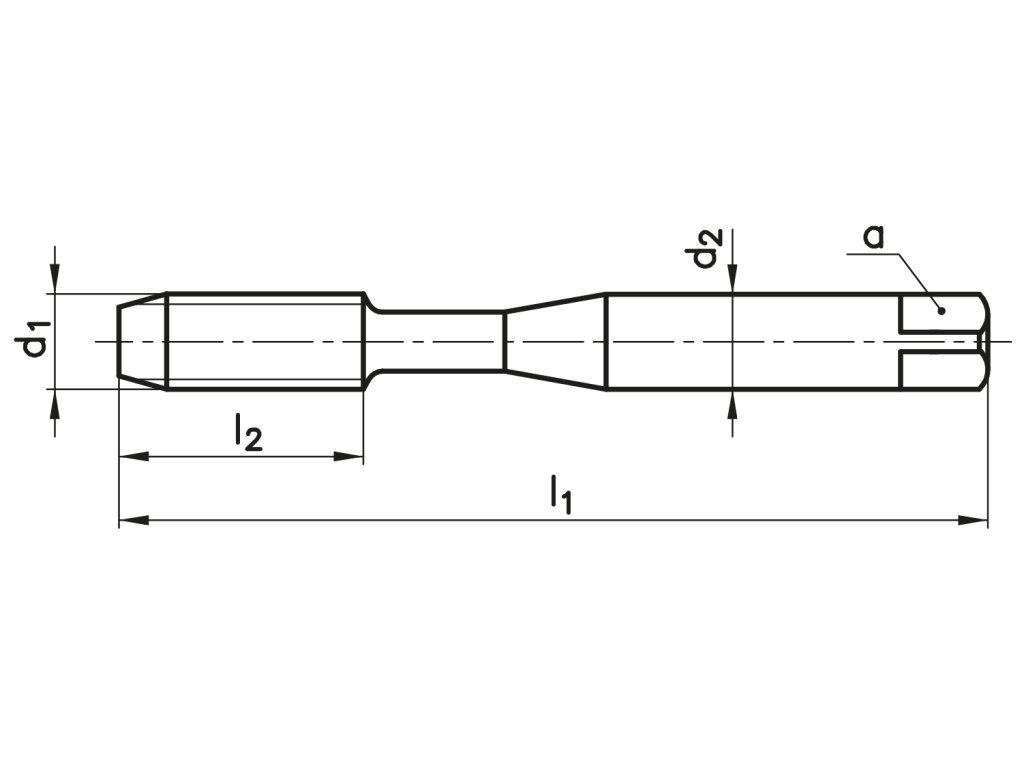

Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 11 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 13 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 16 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 19 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 22 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 24 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | OX |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Unalloyed aluminium |
| Product line: | NX Precision Taps Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
