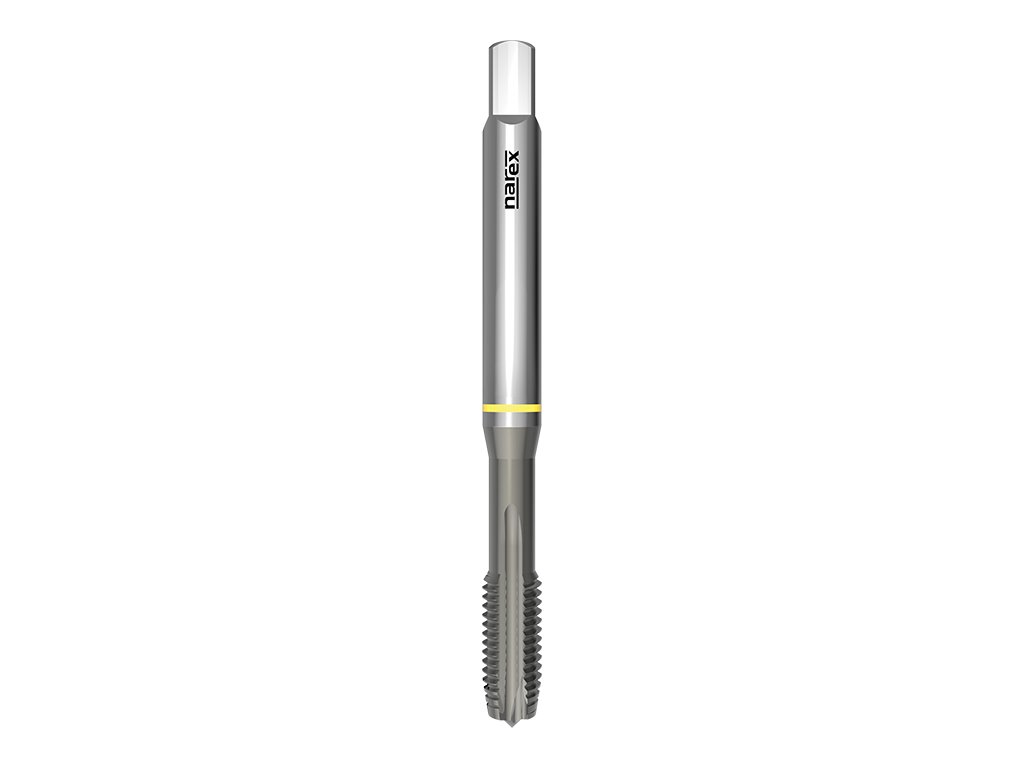

1570 - Machine tap with straight flutes and spiral point
Code: 041536066030000
Variant: M 3x0,5 6H
In stock
(8 pcs)
| 041536066030000
€25,89
€21,40
excl. VAT
Variant: M 4x0,7 6H
In stock
(8 pcs)
| 041536066040000
€26,12
€21,59
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 041536066050000
€27,02
€22,33
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 041536066060000
€27,02
€22,33
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 041536066080000
€31,67
€26,17
excl. VAT
Variant: M 10x1,5 6H
In stock
(10 pcs)
| 041536066100000
€36,98
€30,56
excl. VAT
Product detailed description
Catalogue number: 1570
Machine tap with straight flutes and spiral point, metric, DIN 371, AluSpeed coated, suitable for aluminium alloys with Si>10%.
Features:
![Thread M: ISO Metric coarse thread](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1001.png)
![Profile sketch: 60°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1085.png)
![Thread standard: DIN 13](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1040.png)
![Type AL: Tap for unalloyed aluminium](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1015.png)
![Tap material: Vanadium extra high speed steel HSSE V3](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1051.png)
![Coating: AluSpeed](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1095.png)
![Tap standard: DIN 371](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1020.png)
![Thread tolerance: ISO 2 - 6H](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1070.png)
![Chamfer B: Length 3,5-6 pitch](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1061.png)
![Hole type: Through hole (thread length L > 1,5xd1)](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1101.png)
Machined materials:
Group | Machined material | Cutting speed |
---|---|---|
N8.2 | Aluminium alloysSi<10% | 15-30 |
Dimensions:
![1570: kreslenka](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/kreslenky/1000.png)
d1 | P | tol | l1 | l2 | d2 | a | hole |
---|---|---|---|---|---|---|---|
M 3 | 0,5 | 6H | 56 | 9 | 3,5 | 2,7 | 2,5 |
M 4 | 0,7 | 6H | 63 | 12 | 4,5 | 3,4 | 3,3 |
M 5 | 0,8 | 6H | 70 | 13 | 6 | 4,9 | 4,2 |
M 6 | 1 | 6H | 80 | 15 | 6 | 4,9 | 5 |
M 8 | 1,25 | 6H | 90 | 18 | 8 | 6,2 | 6,8 |
M 10 | 1,5 | 6H | 100 | 20 | 10 | 8 | 8,5 |
Additional parameters
Category: | Machine taps |
---|---|
Coating: | ALS |
Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
Machined material: | Aluminium alloysSi<10% |
Product line: | NAREX Zdanice Product Line |
Standard: | DIN 371 |
Thread type: | Metric ISO Thread |
Tolerance: | 6H |
