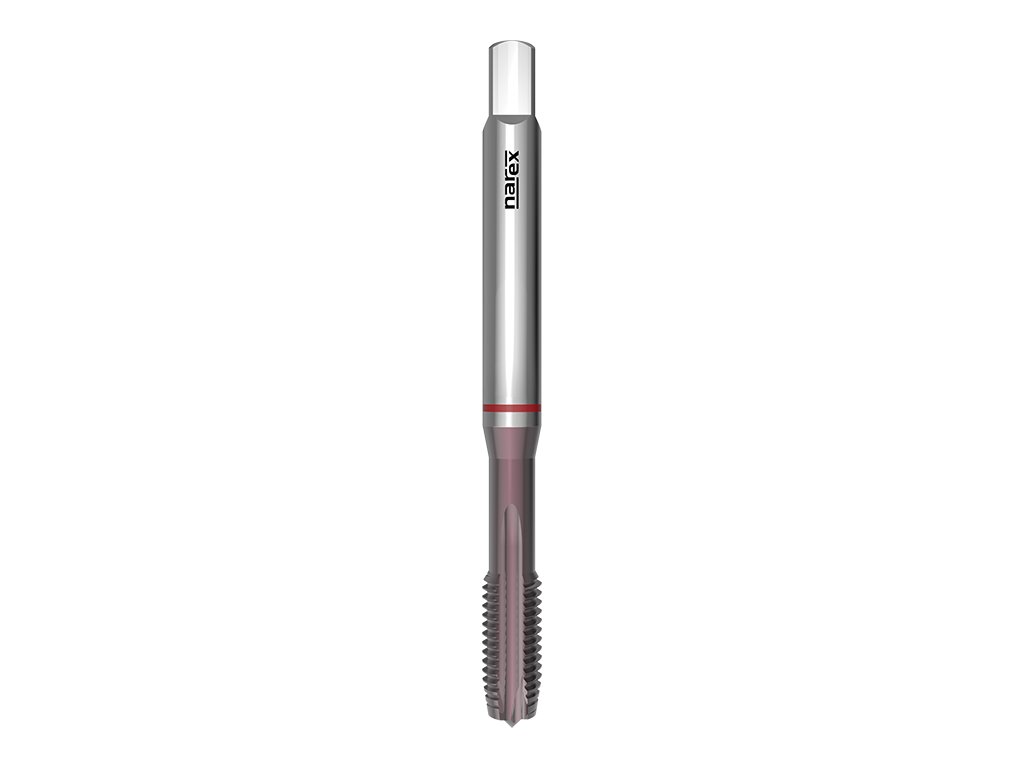

1580 - Machine tap with straight flutes and spiral point

Code: 041538066030000
from €20,75 from €17,15 excl. VAT

Choose variant

Catalogue number: 1580

Machine tap with straight flutes and spiral point, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, heat-treated steels, tool steels, spheroidal and malleable cast iron.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 3x0,5 6H
In stock | 041538066030000
€20,75
€17,15 excl. VAT
Variant: M 4x0,7 6H
In stock | 041538066040000
€20,95
€17,31 excl. VAT
Variant: M 5x0,8 6H
In stock | 041538066050000
€21,85
€18,06 excl. VAT
Variant: M 6x1 6H
In stock | 041538066060000
€21,91
€18,11 excl. VAT
Variant: M 8x1,25 6H
Currently unavailable | 041538066080000
€25,47
€21,05 excl. VAT
Variant: M 10x1,5 6H
In stock | 041538066100000
€29,72
€24,56 excl. VAT

Product detailed description

Catalogue number: 1580

Machine tap with straight flutes and spiral point, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, heat-treated steels, tool steels, spheroidal and malleable cast iron.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P3.1Case hardened and nitriding steels <1200N/mm24-8
P3.2Heat-treated steels <1200N/mm24-8
P3.3Tool steels <1200N/mm24-8
K6.2Spher. graphite and mall. cast iron7-10
N8.2Aluminium alloysSi<10%15-30



Dimensions:

1580: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5693,52,72,5
M 40,76H63124,53,43,3
M 50,86H701364,94,2
M 616H801564,95
M 81,256H901886,26,8
M 101,56H100201088,5

Additional parameters

Category: Machine taps
Coating: TiCN
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
Machined material: Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2
Product line: NAREX Zdanice Product Line
Standard: DIN 371
Thread type: Metric ISO Thread
Tolerance: 6H
