    Home / Taps / Machine taps / 1670NXFX - Machine tap with straight flutes and spiral point

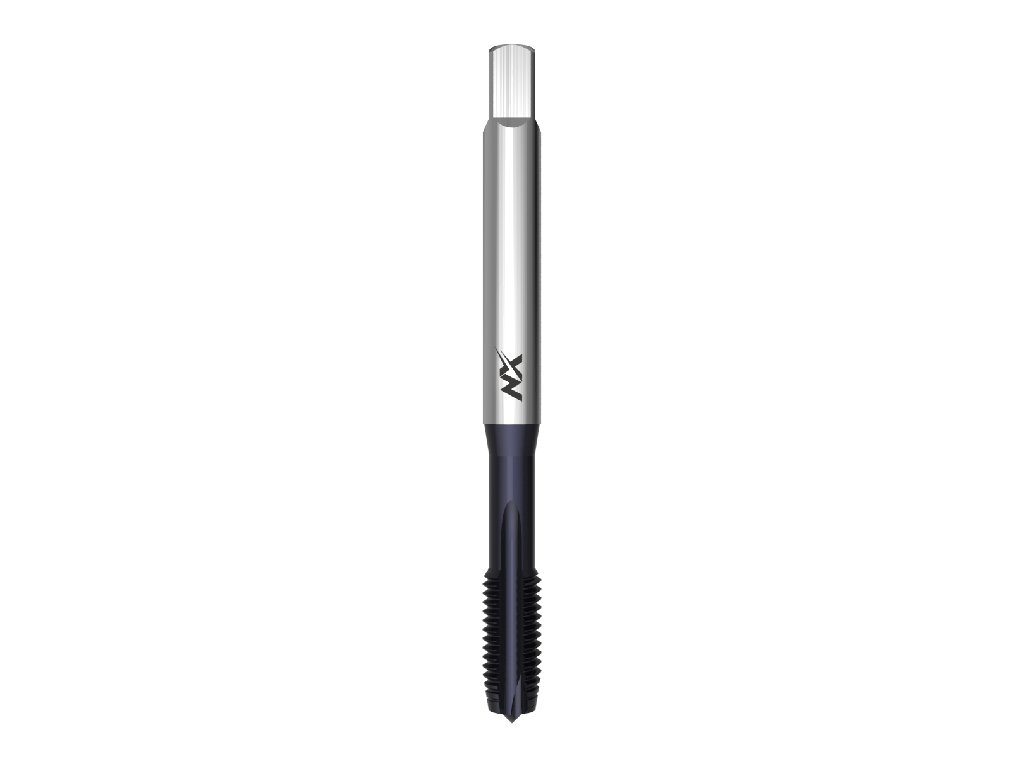

    1670NXFX - Machine tap with straight flutes and spiral point

    Catalogue number: 1670NXFX

    High performance machine tap with straight flutes and spiral point, metric, DIN 371, TIGAAN coated, suitable for structural steels, cast steels, case hardened and nitriding steels, high alloyed steels, tool steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: TIGCoating:   TIG

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Choose variant

    Code: 044036062030000
    from €38,07 from €31,46 excl. VAT Measure price:
    1670NXFX - Machine tap with straight flutes and spiral point
    1670NXFX - Machine tap with straight flutes and spiral point (Variant M 3x0,5 6H )
    New
    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 044036062030000 EAN: 8595111994895
    €38,07
    €31,46 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 044036062040000 EAN: 8595111994901
    €38,36
    €31,70 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 044036062050000 EAN: 8595111994918
    €39,60
    €32,73 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 044036062060000 EAN: 8595111994925
    €40,12
    €33,16 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 044036062080000 EAN: 8595111994932
    €50,31
    €41,58 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 044036062100000 EAN: 8595111994949
    €70,57
    €58,32 excl. VAT

    Catalogue number: 1670NXFX

    High performance machine tap with straight flutes and spiral point, metric, DIN 371, TIGAAN coated, suitable for structural steels, cast steels, case hardened and nitriding steels, high alloyed steels, tool steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: TIGCoating:   TIG

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm28-10
    P3.2Heat-treated steels <1200N/mm28-10
    P3.3Tool steels <1200N/mm28-10
    M5.1Stainless steels 450-800N/mm28-10
    M5.2Stainless steels 600-1000N/mm28-10
    K6.2Spher. graphite and mall. cast iron10-12
    N9.1Pure copper10-12
    N10.1Short chipping copper alloys10-12
    N10.2Long chipping copper alloys10-12
    N11.1Zinc and zinc alloys10-12

    * Recommended materials for best performance



    Dimensions:

    1670NXFX: kreslenka
    d1Ptoll1l2d2a⦾⦾*
    M 30,56H5693,52,72,52,6
    M 40,76H63124,53,43,33,4
    M 50,86H701364,94,24,3
    M 616H801564,955,1
    M 81,256H901886,26,86,9
    M 101,56H100201088,58,6

    ⦾ - hole diameter

    ⦾* - hole diameter for recommended materials

    Additional parameters

    Category: Machine taps
    Coating: TIG
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
    Machined material: Spher. graphite and mall. cast iron, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper
    Product line: NX FeniX Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
