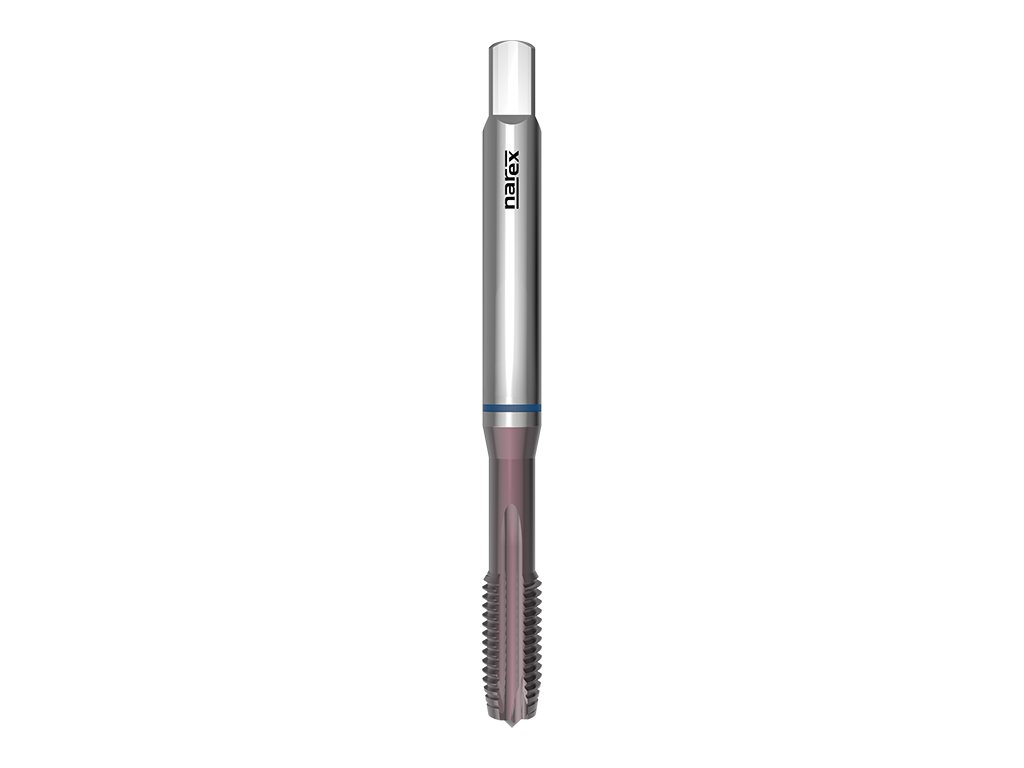

1680 - Machine tap with straight flutes and spiral point

Code: 041538062030000
from €27,62 from €22,83 excl. VAT

Choose variant

Catalogue number: 1680

Machine tap with straight flutes and spiral point, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, stainless steels with stength up to 1000 N/mm2, unalloyed copper and long chipping copper alloys.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 3x0,5 6H
In stock (>10 pcs) | 041538062030000
€27,62
€22,83 excl. VAT
Variant: M 4x0,7 6H
In stock (>10 pcs) | 041538062040000
€27,84
€23,01 excl. VAT
Variant: M 5x0,8 6H
In stock (>10 pcs) | 041538062050000
€28,74
€23,75 excl. VAT
Variant: M 6x1 6H
In stock (>10 pcs) | 041538062060000
€29,11
€24,06 excl. VAT
Variant: M 8x1,25 6H
In stock (>10 pcs) | 041538062080000
€33,90
€28,02 excl. VAT
Variant: M 10x1,5 6H
In stock (>10 pcs) | 041538062100000
€41,61
€34,39 excl. VAT

Product detailed description

Catalogue number: 1680

Machine tap with straight flutes and spiral point, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, stainless steels with stength up to 1000 N/mm2, unalloyed copper and long chipping copper alloys.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P3.1Case hardened and nitriding steels <1200N/mm24-8
M5.1Stainless steels 450-800N/mm28-12
M5.2Stainless steels 600-1000N/mm25-8
N9.1Pure copper8-12
N10.2Long chipping copper alloys10-15



Dimensions:

1680: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5693,52,72,5
M 40,76H63124,53,43,3
M 50,86H701364,94,2
M 616H801564,95
M 81,256H901886,26,8
M 101,56H100201088,5

Additional parameters

Category: Machine taps
Coating: TiCN
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Pure copper
Product line: NAREX Zdanice Product Line
Standard: DIN 371
Thread type: Metric ISO Thread
Tolerance: 6H
