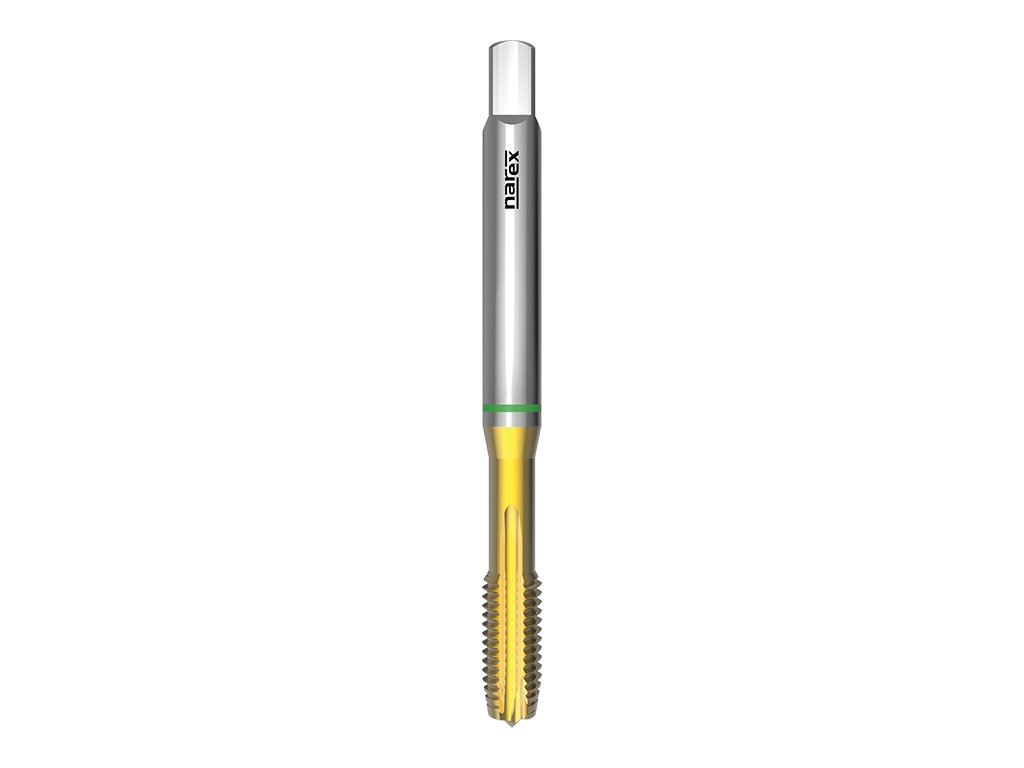

1710 - Machine tap with straight flutes and spiral point

Code: 041535046030000
from €19,11 from €15,79 excl. VAT

Choose variant

Catalogue number: 1710

Machine tap with straight flutes and spiral point, metric, DIN 371, TiN coated, suitable for universal use.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 3x0,5 6H
Currently unavailable | 041535046030000
€19,11
€15,79 excl. VAT
Variant: M 4x0,7 6H
In stock | 041535046040000
€19,31
€15,96 excl. VAT
Variant: M 5x0,8 6H
In stock | 041535046050000
€19,93
€16,47 excl. VAT
Variant: M 6x1 6H
In stock | 041535046060000
€20,06
€16,58 excl. VAT
Variant: M 8x1,25 6H
In stock | 041535046080000
€23,21
€19,18 excl. VAT
Variant: M 10x1,5 6H
In stock | 041535046100000
€27,26
€22,53 excl. VAT

Product detailed description

Catalogue number: 1710

Machine tap with straight flutes and spiral point, metric, DIN 371, TiN coated, suitable for universal use.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P2.1Free-cutting steels <800N/mm210-12
P2.2Structural steels <800N/mm210-12
P3.1Case hardened and nitriding steels <1200N/mm24-6
P3.2Heat-treated steels <1200N/mm24-6
P3.3Tool steels <1200N/mm24-6
M5.1Stainless steels 450-800N/mm26-10
M5.2Stainless steels 600-1000N/mm24-7
K6.1Grey cast iron8-12
K6.2Spher. graphite and mall. cast iron7-10
N8.1Aluminium alloysSi<10%12-20
N8.2Aluminium alloysSi<10%12-20
N10.2Long chipping copper alloys12-20



Dimensions:

1710: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5693,52,72,5
M 40,76H63124,53,43,3
M 50,86H701364,94,2
M 616H801564,95
M 81,256H901886,26,8
M 101,56H100201088,5

Additional parameters

Category: Machine taps
Coating: TiN
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
Machined material: Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2
Product line: NAREX Zdanice Product Line
Standard: DIN 371
Thread type: Metric ISO Thread
Tolerance: 6H
