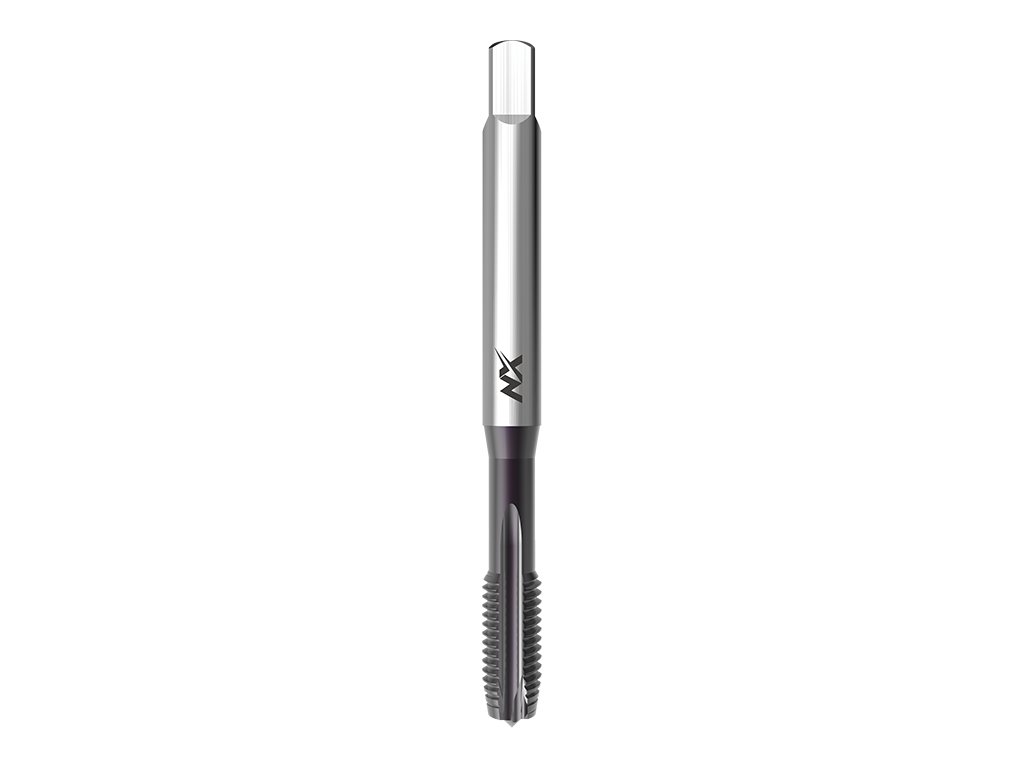

    1720NX - Machine tap with straight flutes and spiral point

    Code: 042036046030000
    1720NX - Machine tap with straight flutes and spiral point
    from €46,46 from €38,40 excl. VAT

    Choose variant

    Catalogue number: 1720NX

    High performance machine tap with straight flute and spiral point, metric, DIN 371, Balinit Hardlube coated, suitable for universal use.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Thread tolerance: ISO 3 - 6GXThread tolerance:   ISO 3 - 6GX

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 2x0,4 6HX
    In stock (>10 pcs) | 042036046020000 EAN: 8595111978376
    €49,17
    €40,64 excl. VAT
    Variant: M 2,5x0,45 6HX
    In stock (>10 pcs) | 042036046025000 EAN: 8595111978383
    €49,17
    €40,64 excl. VAT
    Variant: M 3x0,5 6HX
    In stock (>10 pcs) | 042036046030000 EAN: 8595111978390
    €46,46
    €38,40 excl. VAT
    Variant: M 4x0,7 6HX
    In stock (>10 pcs) | 042036046040000 EAN: 8595111978406
    €47,67
    €39,40 excl. VAT
    Variant: M 5x0,8 6HX
    In stock (>10 pcs) | 042036046050000 EAN: 8595111978413
    €49,17
    €40,64 excl. VAT
    Variant: M 6x1 6HX
    In stock (>10 pcs) | 042036046060000 EAN: 8595111978420
    €50,06
    €41,37 excl. VAT
    Variant: M 8x1,25 6HX
    In stock (>10 pcs) | 042036046080000 EAN: 8595111978437
    €74,71
    €61,74 excl. VAT
    Variant: M 10x1,5 6HX
    In stock (>10 pcs) | 042036046100000 EAN: 8595111978444
    €95,30
    €78,76 excl. VAT
    Variant: M 3x0,5 6GX
    In stock (4 pcs) | 042036048030000 EAN: 8595111978451
    €46,46
    €38,40 excl. VAT
    Variant: M 4x0,7 6GX
    In stock (7 pcs) | 042036048040000 EAN: 8595111978468
    €47,67
    €39,40 excl. VAT
    Variant: M 5x0,8 6GX
    In stock (3 pcs) | 042036048050000 EAN: 8595111978475
    €49,17
    €40,64 excl. VAT
    Variant: M 6x1 6GX
    In stock (>10 pcs) | 042036048060000 EAN: 8595111978482
    €71,52
    €59,11 excl. VAT
    Variant: M 8x1,25 6GX
    In stock (1 pcs) | 042036048080000 EAN: 8595111978499
    €81,83
    €67,63 excl. VAT
    Variant: M 10x1,5 6GX
    In stock (1 pcs) | 042036048100000 EAN: 8595111978505
    €99,09
    €81,89 excl. VAT

    Product detailed description

    Catalogue number: 1720NX

    High performance machine tap with straight flute and spiral point, metric, DIN 371, Balinit Hardlube coated, suitable for universal use.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Thread tolerance: ISO 3 - 6GXThread tolerance:   ISO 3 - 6GX

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm222-26
    P1.2Plain cast steels <500N/mm222-26
    P2.1Free-cutting steels <800N/mm218-22
    P2.2Structural steels <800N/mm218-22
    P2.3Plain cast steels <800N/mm218-22
    P3.1Case hardened and nitriding steels <1200N/mm215-18
    P3.2Heat-treated steels <1200N/mm215-18
    P3.3Tool steels <1200N/mm215-18
    P4.1High-alloyed steels <1400N/mm28-14
    P4.2Heat-treated steels <1400N/mm28-14
    M5.1Stainless steels 450-800N/mm212-15
    M5.2Stainless steels 600-1000N/mm212-15
    K6.1Grey cast iron15-22
    K6.2Spher. graphite and mall. cast iron15-22
    N7.1Unalloyed aluminium32-40
    N8.1Aluminium alloysSi<10%15-22
    N8.2Aluminium alloysSi<10%15-22
    N9.1Pure copper22-25
    N10.1Short chipping copper alloys10-12
    N10.2Long chipping copper alloys10-12
    N11.1Zinc and zinc alloys10-12



    Dimensions:

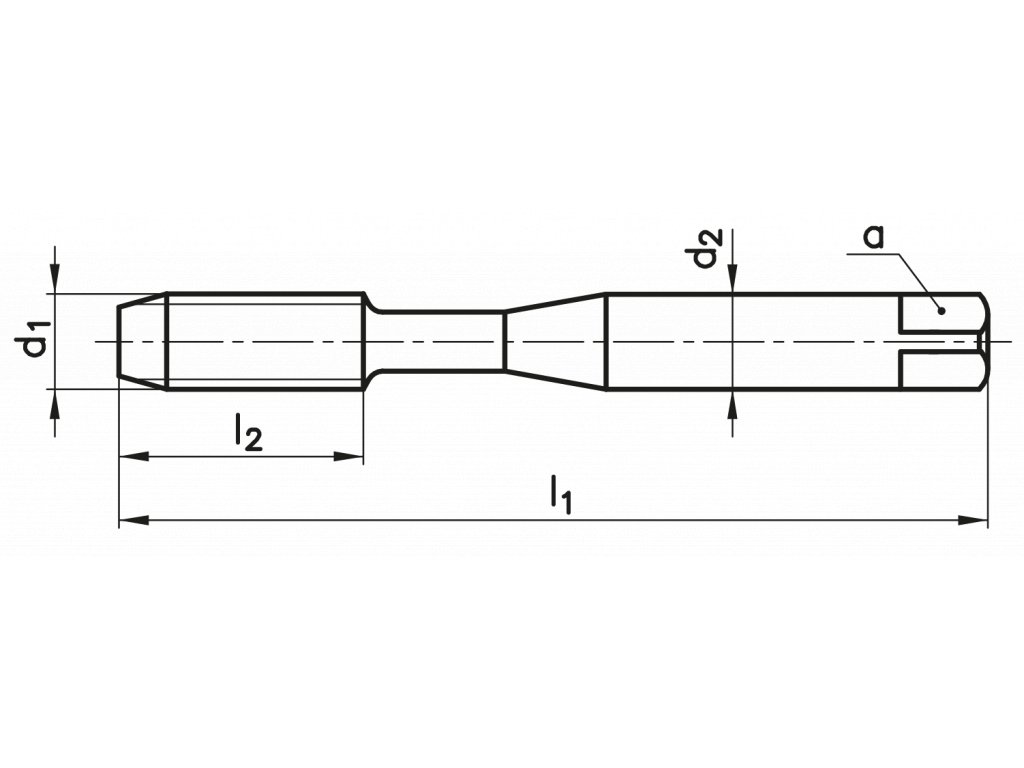

    1720NX: kreslenka
    d1Ptoll1l2d2ahole
    M 20,46HX4582,82,11,6
    M 2,50,456HX5092,82,12,05
    M 30,56GX56113,52,72,5
    M 30,56HX56113,52,72,5
    M 40,76GX63134,53,43,3
    M 40,76HX63134,53,43,3
    M 50,86GX701664,94,2
    M 50,86HX701664,94,2
    M 616HX801964,95
    M 616GX801964,95
    M 81,256GX902286,26,8
    M 81,256HX902286,26,8
    M 101,56GX100241088,5
    M 101,56HX100241088,5

    Additional parameters

    Category: Machine taps
    Coating: HL
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
    Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Unalloyed aluminium, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper, High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
    Product line: NX Precision Taps Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6HX, 6GX
