    1720NXIKZN - Machine tap with straight flutes and spiral point

    Code: 043036046060090
    1720NXIKZN - Machine tap with straight flutes and spiral point
    from €155,34 from €128,38 excl. VAT

    Choose variant

    Catalogue number: 1720NXIKZN

    High performance machine tap with straight flute and spiral point with radial cooling, metric, DIN 371, Balinit Hardlube coated, suitable for universal use.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Cooling method: Internal axial coolant supply with hole outlets in the flutesCooling method:   Internal axial coolant supply with hole outlets in the flutes

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 6x1 6HX
    In stock (10 pcs) | 043036046060090 EAN: 8595111978512
    €155,34
    €128,38 excl. VAT
    Variant: M 8x1,25 6HX
    In stock (8 pcs) | 043036046080090 EAN: 8595111978529
    €161,78
    €133,70 excl. VAT
    Variant: M 10x1,5 6HX
    In stock (2 pcs) | 043036046100090 EAN: 8595111978536
    €174,68
    €144,36 excl. VAT

    Product detailed description

    Catalogue number: 1720NXIKZN

    High performance machine tap with straight flute and spiral point with radial cooling, metric, DIN 371, Balinit Hardlube coated, suitable for universal use.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Cooling method: Internal axial coolant supply with hole outlets in the flutesCooling method:   Internal axial coolant supply with hole outlets in the flutes

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm225-30
    P1.2Plain cast steels <500N/mm225-30
    P2.1Free-cutting steels <800N/mm220-25
    P2.2Structural steels <800N/mm220-25
    P2.3Plain cast steels <800N/mm220-25
    P3.1Case hardened and nitriding steels <1200N/mm210-12
    P3.2Heat-treated steels <1200N/mm210-12
    P3.3Tool steels <1200N/mm210-12
    P4.1High-alloyed steels <1400N/mm210-16
    P4.2Heat-treated steels <1400N/mm210-16
    M5.1Stainless steels 450-800N/mm212-15
    M5.2Stainless steels 600-1000N/mm212-15
    K6.1Grey cast iron15-22
    K6.2Spher. graphite and mall. cast iron15-22
    N7.1Unalloyed aluminium40-50
    N8.1Aluminium alloysSi<10%15-22
    N8.2Aluminium alloysSi<10%15-22
    N9.1Pure copper25-30
    N10.1Short chipping copper alloys10-15
    N10.2Long chipping copper alloys12-15
    N11.1Zinc and zinc alloys12-15



    Dimensions:

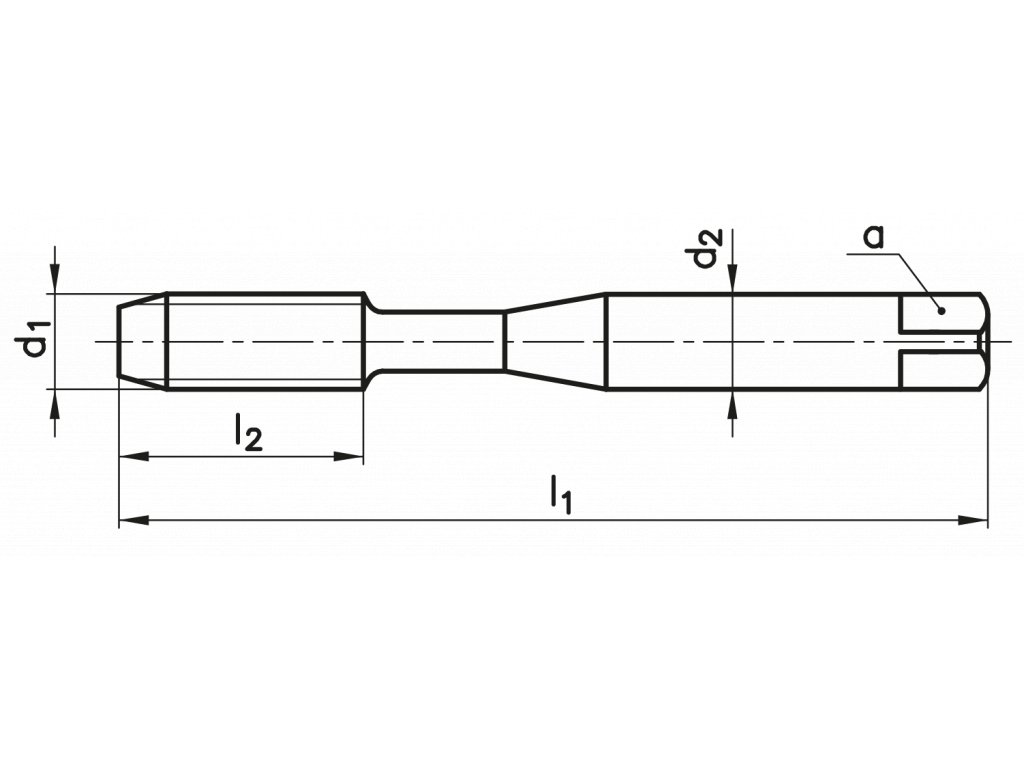

    1720NXIKZN: kreslenka
    d1Ptoll1l2d2ahole
    M 616HX801964,95
    M 81,256HX902286,26,8
    M 101,56HX100241088,5

    Additional parameters

    Category: Machine taps
    Coating: HL
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
    Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Unalloyed aluminium, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper, High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
    Product line: NX Precision Taps Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6HX
