    1870NXFX - Machine tap with straight flutes and spiral point

    Code: 044036084030000
    New

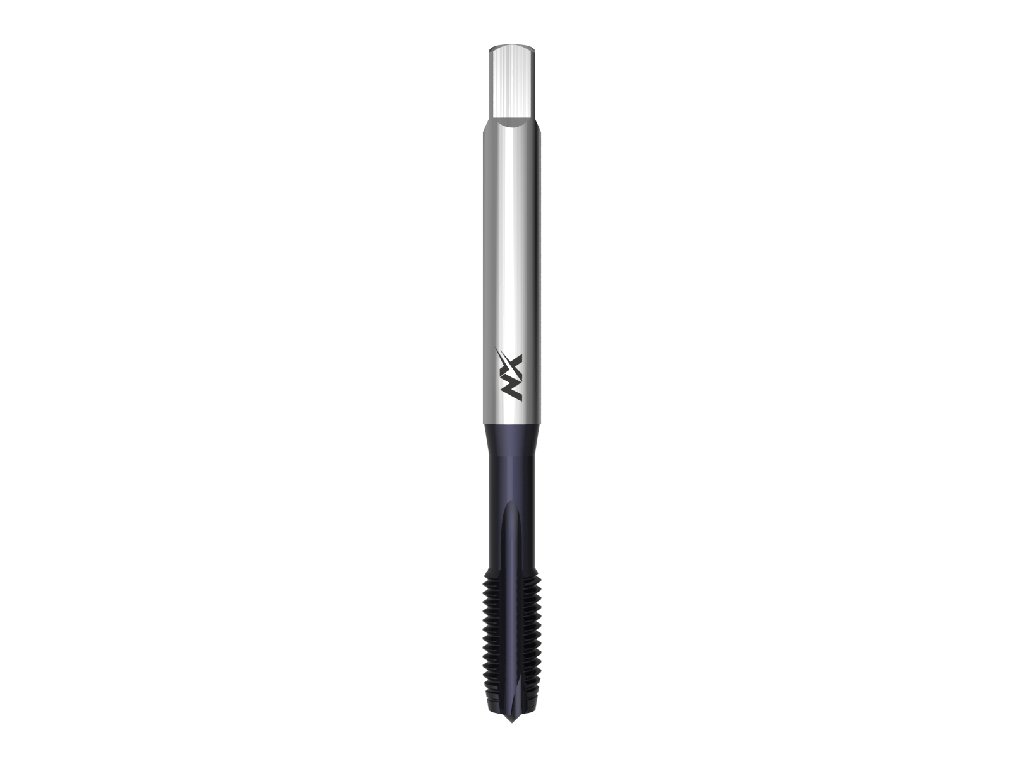

    1870NXFX - Machine tap with straight flutes and spiral point (Variant M 3x0,5 6H )
    from €39,20 from €32,40 excl. VAT

    Choose variant

    Catalogue number: 1870NXFX

    Ultra-high-performance machine tap from the premium FeniX series made of powder metallurgy high-speed steel for metric threads with a straight flute and spiral point, DIN 371, with TIGAAN next-gen coating, featuring special geometry designed for top performance when used in stainless steel with a strength of up to 1000 N/mm2. Can also be used in other materials (see table).



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: TIGCoating:   TIG

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 044036084030000 EAN: 8595111995007
    €39,20
    €32,40 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 044036084040000 EAN: 8595111995014
    €39,51
    €32,65 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 044036084050000 EAN: 8595111995021
    €40,79
    €33,71 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 044036084060000 EAN: 8595111995038
    €41,32
    €34,15 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 044036084080000 EAN: 8595111995045
    €51,82
    €42,83 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 044036084100000 EAN: 8595111995052
    €72,68
    €60,07 excl. VAT

    Product detailed description

    Catalogue number: 1870NXFX

    Ultra-high-performance machine tap from the premium FeniX series made of powder metallurgy high-speed steel for metric threads with a straight flute and spiral point, DIN 371, with TIGAAN next-gen coating, featuring special geometry designed for top performance when used in stainless steel with a strength of up to 1000 N/mm2. Can also be used in other materials (see table).



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: TIGCoating:   TIG

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm215-18
    P3.2Heat-treated steels <1200N/mm215-18
    P3.3Tool steels <1200N/mm215-18
    M5.1Stainless steels 450-800N/mm210-12
    M5.2Stainless steels 600-1000N/mm210-12
    K6.2Spher. graphite and mall. cast iron10-12
    N9.1Pure copper12-15
    N10.1Short chipping copper alloys10-12
    N10.2Long chipping copper alloys10-12
    N11.1Zinc and zinc alloys10-12

    * Recommended materials for best performance



    Dimensions:

    1870NXFX: kreslenka
    d1Ptoll1l2d2a⦾⦾*
    M 30,56H5693,52,72,52,6
    M 40,76H63124,53,43,33,4
    M 50,86H701364,94,24,3
    M 616H801564,955,1
    M 81,256H901886,26,86,9
    M 101,56H100201088,58,6

    ⦾ - hole diameter

    ⦾* - hole diameter for recommended materials

    Additional parameters

    Category: Machine taps
    Coating: TIG
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
    Machined material: Spher. graphite and mall. cast iron, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper
    Product line: NX FeniX Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
