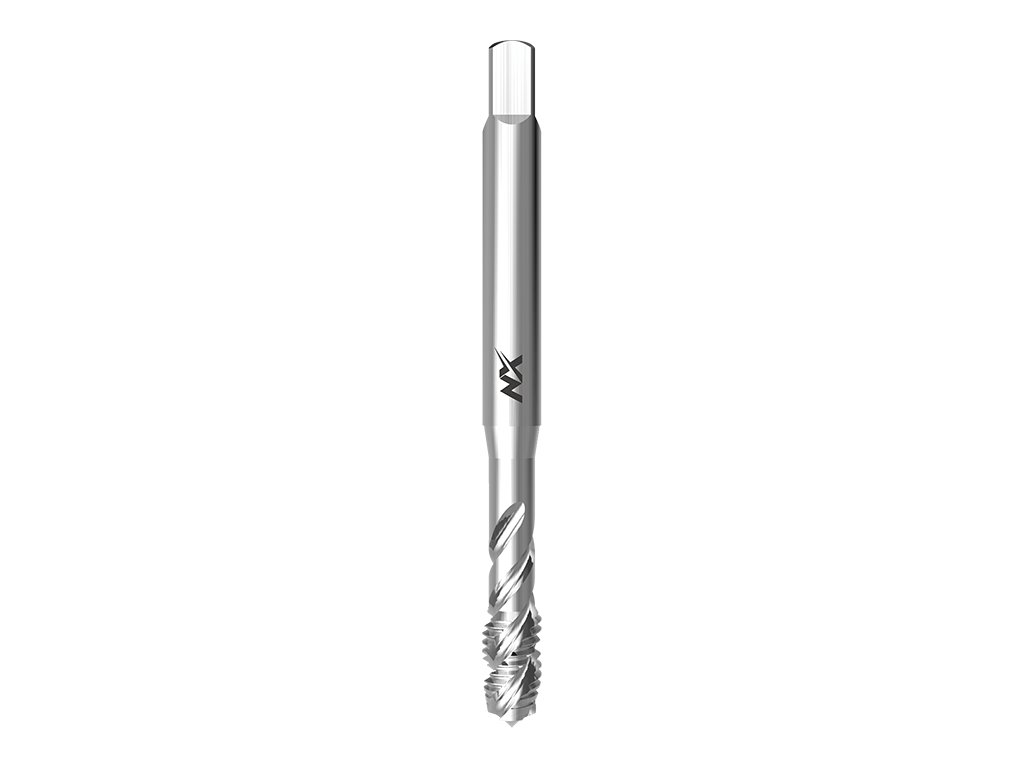

2050NX - Machine tap with right-hand spiral flutes 40°
Code: 042031118030000
Variant: M 3x0,5 6H
In stock
(>10 pcs)
| 042031118030000
€27,77
€22,95
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 042031118040000
€27,77
€22,95
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 042031118050000
€29,89
€24,70
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 042031118060000
€29,89
€24,70
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 042031118080000
€40,81
€33,73
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 042031118100000
€47,67
€39,40
excl. VAT
Product detailed description
Catalogue number: 2050NX
High precision machine tap with 40° spiral, metric, DIN 371, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 %, long chipping copper alloys.
Features:
![Thread M: ISO Metric coarse thread](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1001.png)
![Profile sketch: 60°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1085.png)
![Thread standard: DIN 13](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1040.png)
![Type N: Tap for steels up to 800 N/mm2](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1010.png)
![Tap material: Vanadium extra high speed steel HSSE V3](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1051.png)
![Tap standard: DIN 371](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1020.png)
![Thread tolerance: ISO 2 - 6H](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1070.png)
![Chamfer C: Length 2-3 pitch](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1060.png)
![Spiral flute angle: 40°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1112.png)
![Hole type: Blind hole (thread length < 2 d1)](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1104.png)
Machined materials:
Group | Machined material | Cutting speed |
---|---|---|
P1.1 | Structural steels <500N/mm2 | 8-10 |
P1.2 | Plain cast steels <500N/mm2 | 8-10 |
P2.1 | Free-cutting steels <800N/mm2 | 8-10 |
P2.2 | Structural steels <800N/mm2 | 8-10 |
P2.3 | Plain cast steels <800N/mm2 | 8-10 |
N7.1 | Unalloyed aluminium | 8-10 |
N8.1 | Aluminium alloysSi<10% | 8-10 |
N8.2 | Aluminium alloysSi<10% | 8-10 |
Dimensions:
![2050NX: kreslenka](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/kreslenky/1000.png)
d1 | P | tol | l1 | l2 | d2 | a | hole |
---|---|---|---|---|---|---|---|
M 3 | 0,5 | 6H | 56 | 5 | 3,5 | 2,7 | 2,5 |
M 4 | 0,7 | 6H | 63 | 7 | 4,5 | 3,4 | 3,3 |
M 5 | 0,8 | 6H | 70 | 8 | 6 | 4,9 | 4,2 |
M 6 | 1 | 6H | 80 | 10 | 6 | 4,9 | 5 |
M 8 | 1,25 | 6H | 90 | 13 | 8 | 6,2 | 6,8 |
M 10 | 1,5 | 6H | 100 | 15 | 10 | 8 | 8,5 |
Additional parameters
Category: | Machine taps |
---|---|
Coating: | - |
Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1) |
Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Unalloyed aluminium |
Product line: | NX Precision Taps Product Line |
Standard: | DIN 371 |
Thread type: | Metric ISO Thread |
Tolerance: | 6H |
