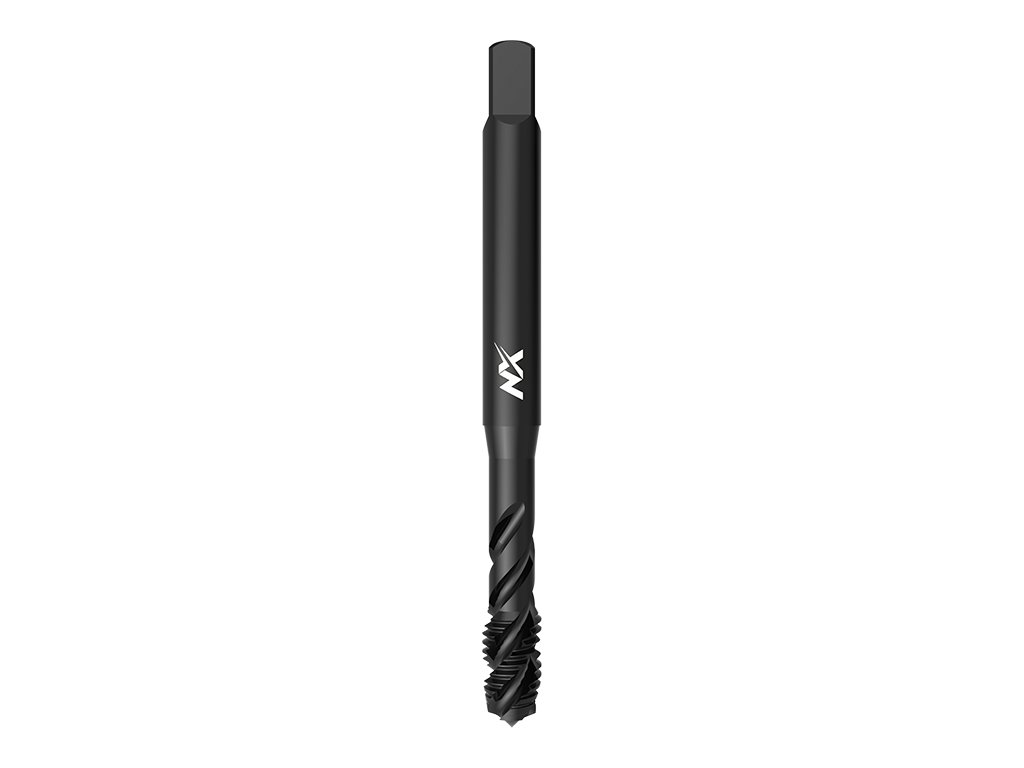

2090NX - Machine tap with right-hand spiral flutes 40°

Code: 042037118030000
from €28,28 from €23,37 excl. VAT

Choose variant

Catalogue number: 2090NX

High precision machine tap with 40° spiral, metric, DIN 371, steam oxided, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 %, long chipping copper alloys.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: OxidationCoating:   Oxidation

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: M 3x0,5 6H
Currently unavailable | 042037118030000
€28,28
€23,37 excl. VAT
Variant: M 4x0,7 6H
Currently unavailable | 042037118040000
€28,28
€23,37 excl. VAT
Variant: M 5x0,8 6H
In stock | 042037118050000
€30,43
€25,15 excl. VAT
Variant: M 6x1 6H
In stock | 042037118060000
€30,43
€25,15 excl. VAT
Variant: M 8x1,25 6H
In stock | 042037118080000
€41,41
€34,22 excl. VAT
Variant: M 10x1,5 6H
In stock | 042037118100000
€48,59
€40,16 excl. VAT

Product detailed description

Catalogue number: 2090NX

High precision machine tap with 40° spiral, metric, DIN 371, steam oxided, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 %, long chipping copper alloys.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: OxidationCoating:   Oxidation

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm210-12
P1.2Plain cast steels <500N/mm210-12
P2.1Free-cutting steels <800N/mm210-12
P2.2Structural steels <800N/mm210-12
P2.3Plain cast steels <800N/mm210-12
N7.1Unalloyed aluminium10-15
N8.1Aluminium alloysSi<10%10-15
N8.2Aluminium alloysSi<10%10-15



Dimensions:

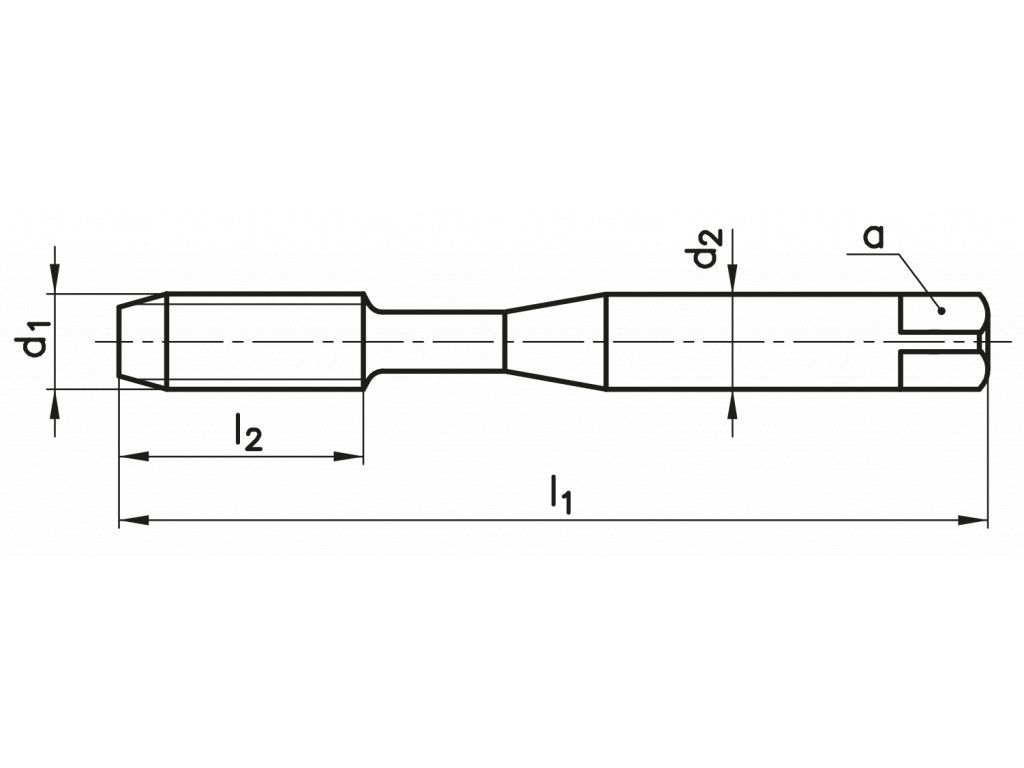

2090NX: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5653,52,72,5
M 40,76H6374,53,43,3
M 50,86H70864,94,2
M 616H801064,95
M 81,256H901386,26,8
M 101,56H100151088,5

Additional parameters

Category: Machine taps
Coating: OX
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Unalloyed aluminium
Product line: NX Precision Taps Product Line
Standard: DIN 371
Thread type: Metric ISO Thread
Tolerance: 6H
