2100NX - Machine tap with right-hand spiral flutes 10°
Code: 042031164030000
Variant: M 3x0,5 6H
In stock
(2 pcs)
| 042031164030000
€74,50
€61,57
excl. VAT
Variant: M 4x0,7 6H
In stock
(2 pcs)
| 042031164040000
€76,53
€63,25
excl. VAT
Variant: M 5x0,8 6H
In stock
(4 pcs)
| 042031164050000
€78,99
€65,28
excl. VAT
Variant: M 6x1 6H
In stock
(5 pcs)
| 042031164060000
€79,93
€66,06
excl. VAT
Variant: M 8x1,25 6H
In stock
(2 pcs)
| 042031164080000
€90,21
€74,55
excl. VAT
Variant: M 10x1,5 6H
Currently unavailable
| 042031164100000
€107,58
€88,91
excl. VAT
Product detailed description
Catalogue number: 2100NX
High precision machine tap, metric, with right-hand spiral flutes, DIN 371, for nickel alloys.
Features:
![Thread M: ISO Metric coarse thread](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1001.png)
![Profile sketch: 60°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1085.png)
![Thread standard: DIN 13](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1040.png)
![Type Ni: Tap for nickel alloys](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1018.png)
![Tap material: Powder high speed steel](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1052.png)
![Tap standard: DIN 371](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1020.png)
![Thread tolerance: ISO 2 - 6H](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1070.png)
![Chamfer C: Length 2-3 pitch](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1060.png)
![Spiral flute angle: 10°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1115.png)
![Hole type: Blind hole (thread length < 1,5 d1)](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1103.png)
Machined materials:
Group | Machined material | Cutting speed |
---|---|---|
S13.1 | Nickel | 3-6 |

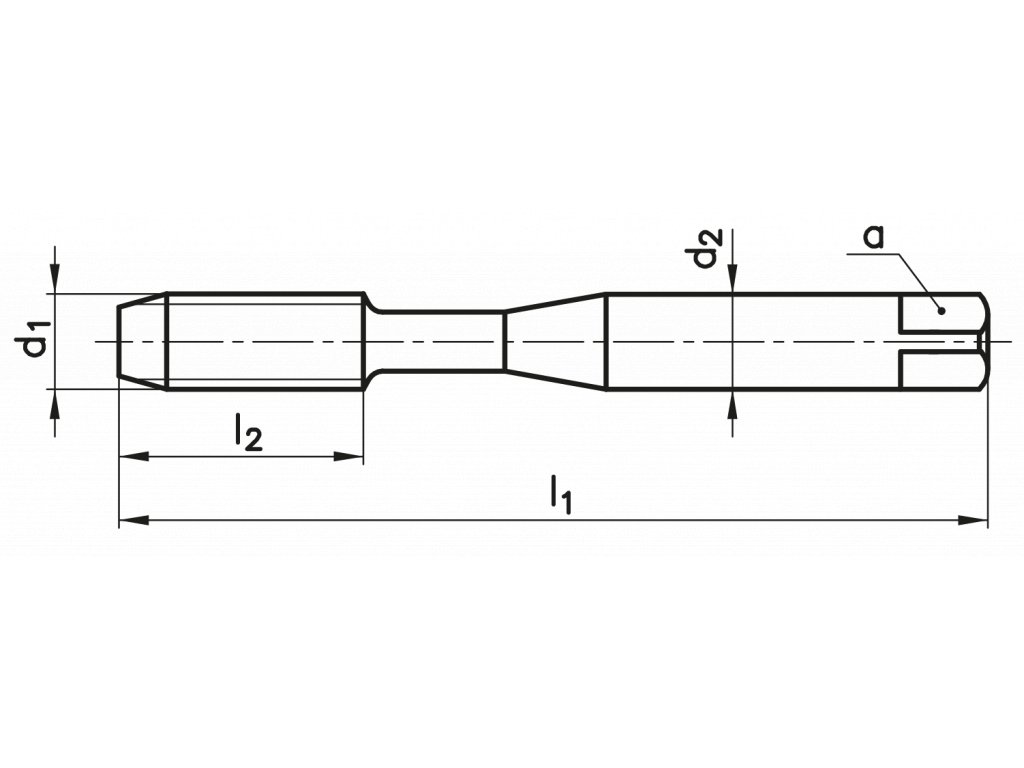

Dimensions:
![2100NX: kreslenka](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/kreslenky/1000.png)
d1 | P | tol | l1 | l2 | d2 | a | hole |
---|---|---|---|---|---|---|---|
M 3 | 0,5 | 6H | 56 | 11 | 3,5 | 2,7 | 2,5 |
M 4 | 0,7 | 6H | 63 | 14 | 4,5 | 3,4 | 3,3 |
M 5 | 0,8 | 6H | 70 | 17 | 6 | 4,9 | 4,2 |
M 6 | 1 | 6H | 80 | 21 | 6 | 4,9 | 5 |
M 8 | 1,25 | 6H | 90 | 28 | 8 | 6,2 | 6,8 |
M 10 | 1,5 | 6H | 100 | 35 | 10 | 8 | 8,5 |
Additional parameters
Category: | Machine taps |
---|---|
Coating: | - |
Hole type: | blind hole (thread length L < 1,5xd1) |
Machined material: | Nickel |
Product line: | NX Precision Taps Product Line |
Standard: | DIN 371 |
Thread type: | Metric ISO Thread |
Tolerance: | 6H |
