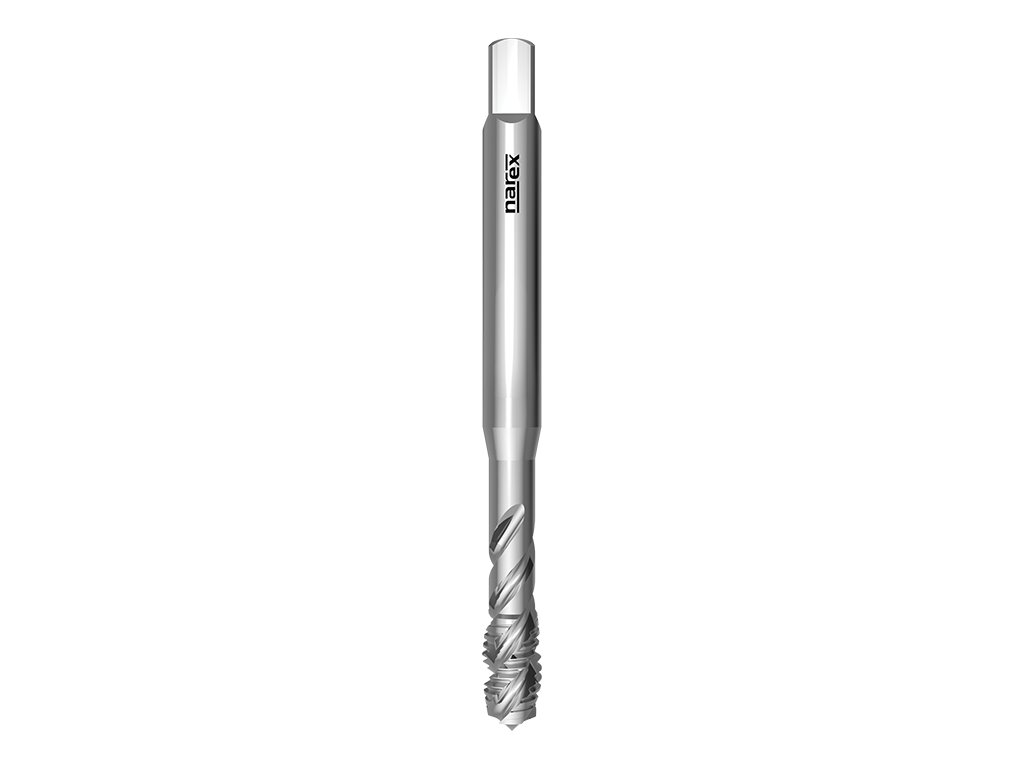

2250CYC - Machine tap with right-hand spiral flutes 40°

Code: 041529910050000
New
from €19,11 from €15,79 excl. VAT

Choose variant

Catalogue number: 2250CYC

Machine tap with spiral flutes, for tyre valve threads, DIN 371, suitable for universal use.



Thread Vg: Valve threadThread Vg:   Valve thread

Profile sketch: 60°Profile sketch:   60°

Tap standard: DIN 7756Tap standard:   DIN 7756

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 371Tap standard:   ~ DIN 371

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: Vg 5x0,705
In stock | 041529910050000
€19,11
€15,79 excl. VAT
Variant: Vg 8x0,794
In stock | 041529910080000
€20,88
€17,26 excl. VAT

Product detailed description

Catalogue number: 2250CYC

Machine tap with spiral flutes, for tyre valve threads, DIN 371, suitable for universal use.



Features:

Thread Vg: Valve threadThread Vg:   Valve thread

Profile sketch: 60°Profile sketch:   60°

Tap standard: DIN 7756Tap standard:   DIN 7756

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 371Tap standard:   ~ DIN 371

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P3.1Case hardened and nitriding steels <1200N/mm23-5
M5.1Stainless steels 450-800N/mm24-7
M5.2Stainless steels 600-1000N/mm23-5

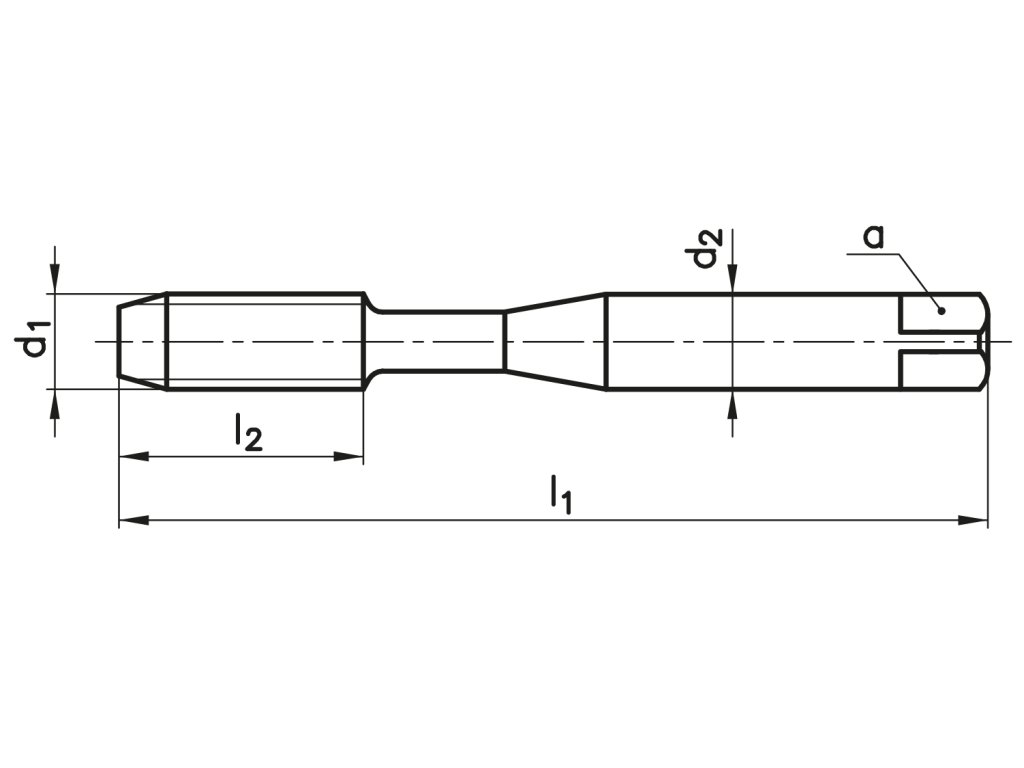

Dimensions:

2250CYC: kreslenka
d1Ptoll1l2d2ahole
Vg 50,705801064,94,7
Vg 80,794901386,26,9

Additional parameters

Category: Machine taps
Coating: -
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Case hardened and nitriding steels <1200N/mm2
Product line: NAREX Zdanice Product Line
Standard: DIN ≈371
Thread type: Valve thread
Tolerance: -
