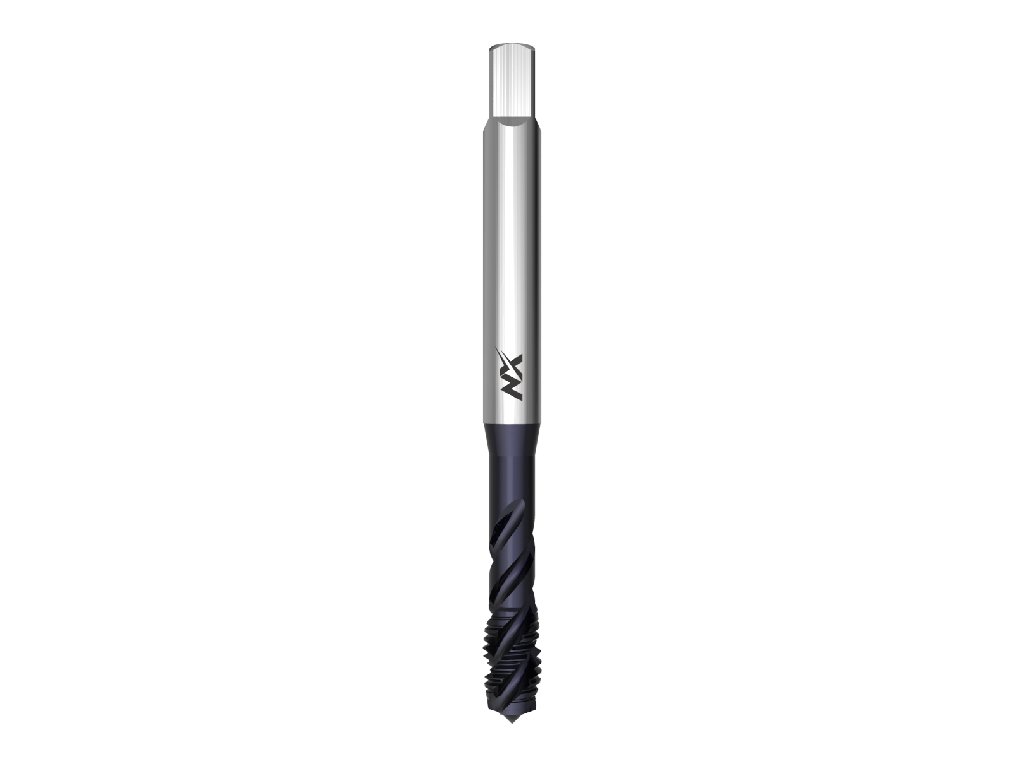

2270NXFX - Machine tap with right-hand spiral flutes 45°
Code: 044036132030000
Variant: M 3x0,5 6H
In stock
(>10 pcs)
| 044036132030000
EAN: 8595111995311
€41,35
€34,17
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 044036132040000
EAN: 8595111995328
€41,35
€34,17
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 044036132050000
EAN: 8595111995335
€42,29
€34,95
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 044036132060000
EAN: 8595111995342
€44,13
€36,47
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 044036132080000
EAN: 8595111995359
€55,09
€45,53
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 044036132100000
EAN: 8595111995366
€74
€61,16
excl. VAT
Product detailed description
Catalogue number: 2270NXFX
High performance machine tap with spiral flutes, metric, DIN 371, TIGAAN coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type VA: Tap for stainless steels
Tap material: Super high speed steel
Coating: TIG
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Spiral flute angle: 45°
Hole type: Blind hole (thread length < 2,5 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 10-15 |
| P3.2 | Heat-treated steels <1200N/mm2 | 10-15 |
| P3.3 | Tool steels <1200N/mm2 | 8-12 |
| M5.1 | Stainless steels 450-800N/mm2 | 8-10 |
| M5.2 | Stainless steels 600-1000N/mm2 | 8-10 |
| N9.1 | Pure copper | 10-12 |
| N10.2 | Long chipping copper alloys | 10-12 |

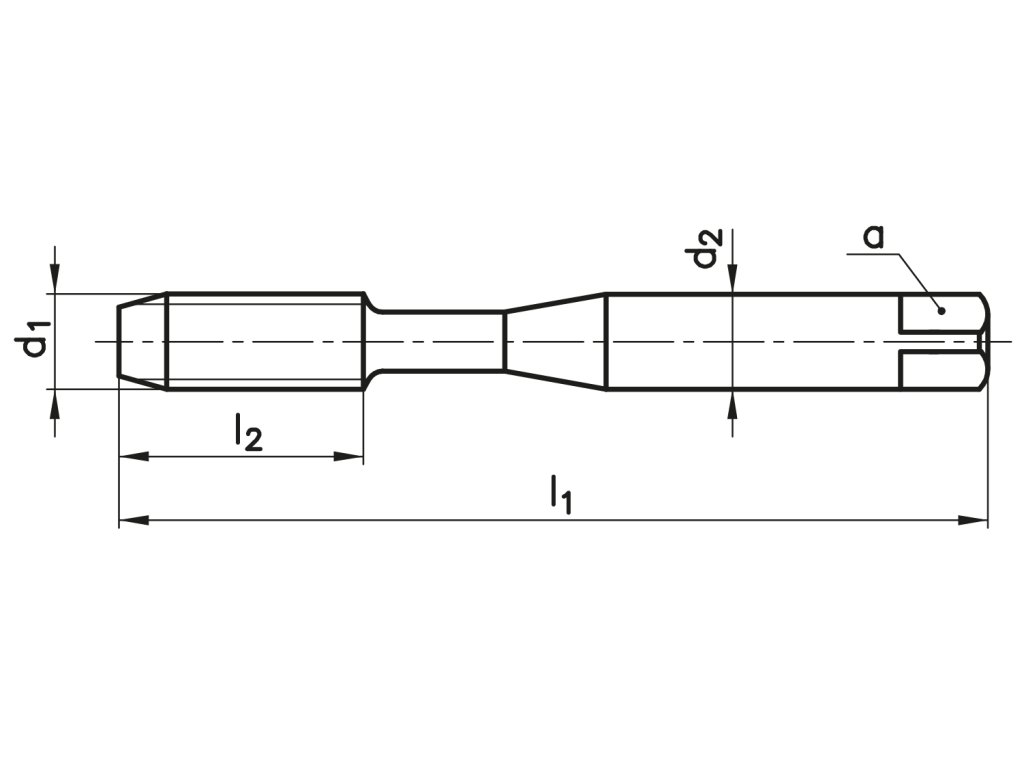

Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 5 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 7 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 8 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 10 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 13 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 15 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TIG |
| Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper |
| Product line: | NX FeniX Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
