    Home / Taps / Machine taps / 2290EG - Machine tap with right-hand spiral flutes 40°

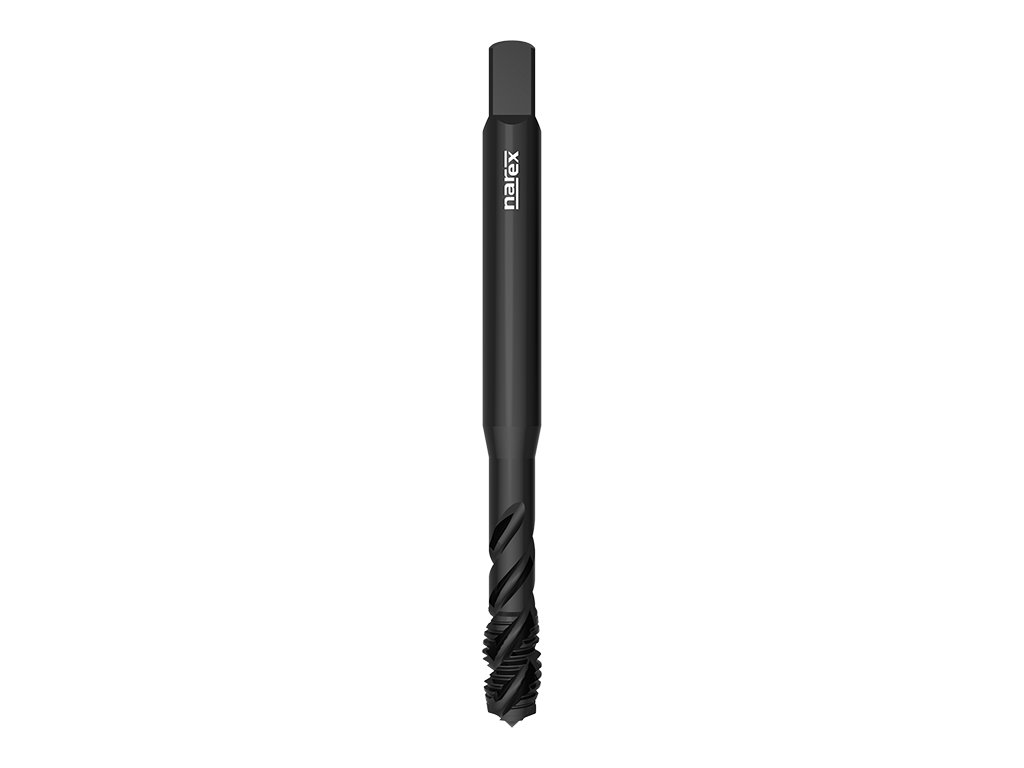

    2290EG - Machine tap with right-hand spiral flutes 40°

    Code: 041937132030000
    2290EG - Machine tap with right-hand spiral flutes 40°
    from €19,61 from €16,21 excl. VAT

    Choose variant

    Catalogue number: 2290EG

    Tap for wire thread inserts with spiral flutes, metric, DIN 40435, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Thread EG-M: ISO Metric coarse thread for wire thread insertsThread EG-M:   ISO Metric coarse thread for wire thread inserts

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 8140/2Thread standard:   DIN 8140/2

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 40435Tap standard:   DIN 40435

    Thread tolerance: ISO 2 - 6H modThread tolerance:   ISO 2 - 6H mod

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


    Detailed information

    Variant: EG-M 3x0,5 6H mod
    In stock | 041937132030000
    €19,61
    €16,21 excl. VAT
    Variant: EG-M 4x0,7 6H mod
    In stock | 041937132040000
    €19,61
    €16,21 excl. VAT
    Variant: EG-M 5x0,8 6H mod
    In stock | 041937132050000
    €20,35
    €16,82 excl. VAT
    Variant: EG-M 6x1 6H mod
    In stock | 041937132060000
    €20,95
    €17,31 excl. VAT
    Variant: EG-M 8x1,25 6H mod
    In stock | 041937132080000
    €24,18
    €19,98 excl. VAT

    Product detailed description

    Catalogue number: 2290EG

    Tap for wire thread inserts with spiral flutes, metric, DIN 40435, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Features:

    Thread EG-M: ISO Metric coarse thread for wire thread insertsThread EG-M:   ISO Metric coarse thread for wire thread inserts

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 8140/2Thread standard:   DIN 8140/2

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 40435Tap standard:   DIN 40435

    Thread tolerance: ISO 2 - 6H modThread tolerance:   ISO 2 - 6H mod

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm23-5
    M5.1Stainless steels 450-800N/mm24-7
    M5.2Stainless steels 600-1000N/mm23-5



    Dimensions:

    2290EG: kreslenka
    d1Ptoll1l2d2ahole
    EG-M 30,56H mod6374,53,43,15
    EG-M 3,50,66H mod70864,93,7
    EG-M 40,76H mod70864,94,2
    EG-M 50,86H mod801064,95,25
    EG-M 616H mod901386,26,3
    EG-M 81,256H mod100151088,4

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
    Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Case hardened and nitriding steels <1200N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: DIN 40435
    Thread type: ISO metric coarse thread for screw thread insert
    Tolerance: 6H mod
