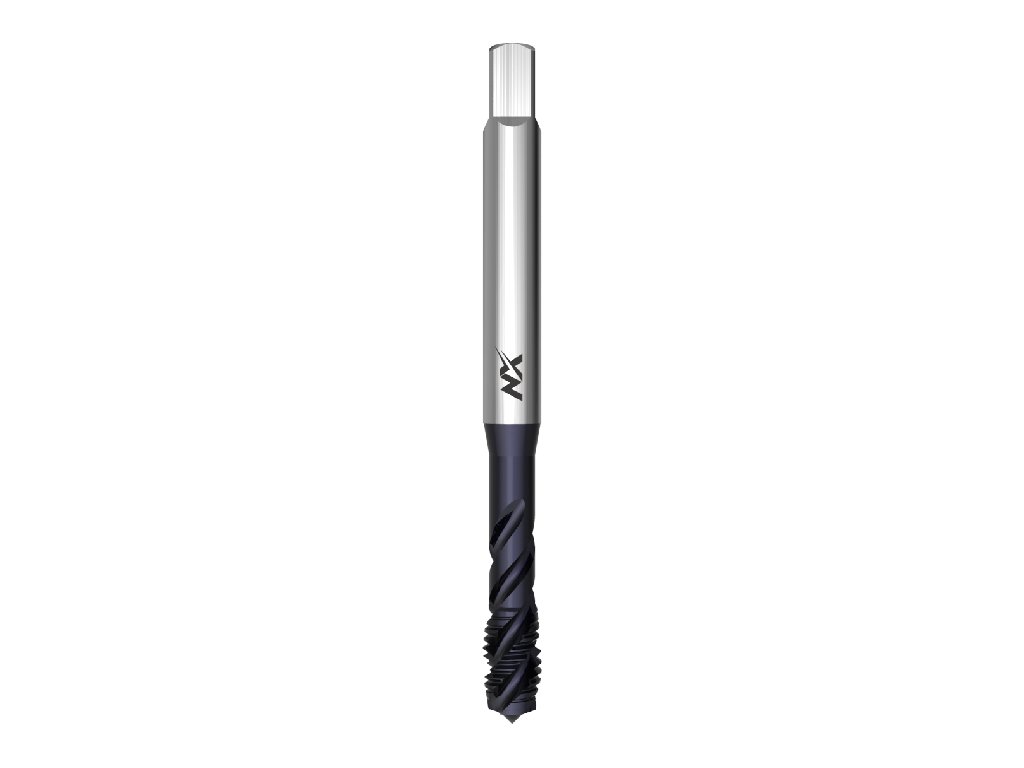

2320NXFX - Machine tap with right-hand spiral flutes 45°
Code: 044036182030000
Variant: M 3x0,5 6H
In stock
(>10 pcs)
| 044036182030000
EAN: 8595111995427
€42,59
€35,20
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 044036182040000
EAN: 8595111995434
€42,59
€35,20
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 044036182050000
EAN: 8595111995441
€43,56
€36
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 044036182060000
EAN: 8595111995458
€45,45
€37,56
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 044036182080000
EAN: 8595111995465
€56,75
€46,90
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 044036182100000
EAN: 8595111995472
€76,22
€62,99
excl. VAT
Product detailed description
Catalogue number: 2320NXFX
Ultra-high-performance machine tap from the premium FeniX series made of powder metallurgy high-speed steel for metric threads with a spiral flute 45°, DIN 371, with TIGAAN next-gen coating, featuring special geometry designed for top performance when used in stainless steel with a strength of up to 1000 N/mm2. Can also be used in other materials (see table).
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type VA: Tap for stainless steels
Tap material: Powder high speed steel
Coating: TIG
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Spiral flute angle: 45°
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 15-18 |
| P3.2 | Heat-treated steels <1200N/mm2 | 15-18 |
| P3.3 | Tool steels <1200N/mm2 | 15-18 |
| M5.1 | Stainless steels 450-800N/mm2 | 10-12 |
| M5.2 | Stainless steels 600-1000N/mm2 | 10-12 |
| N9.1 | Pure copper | 12-15 |
| N10.2 | Long chipping copper alloys | 10-12 |
* Recommended materials for best performance

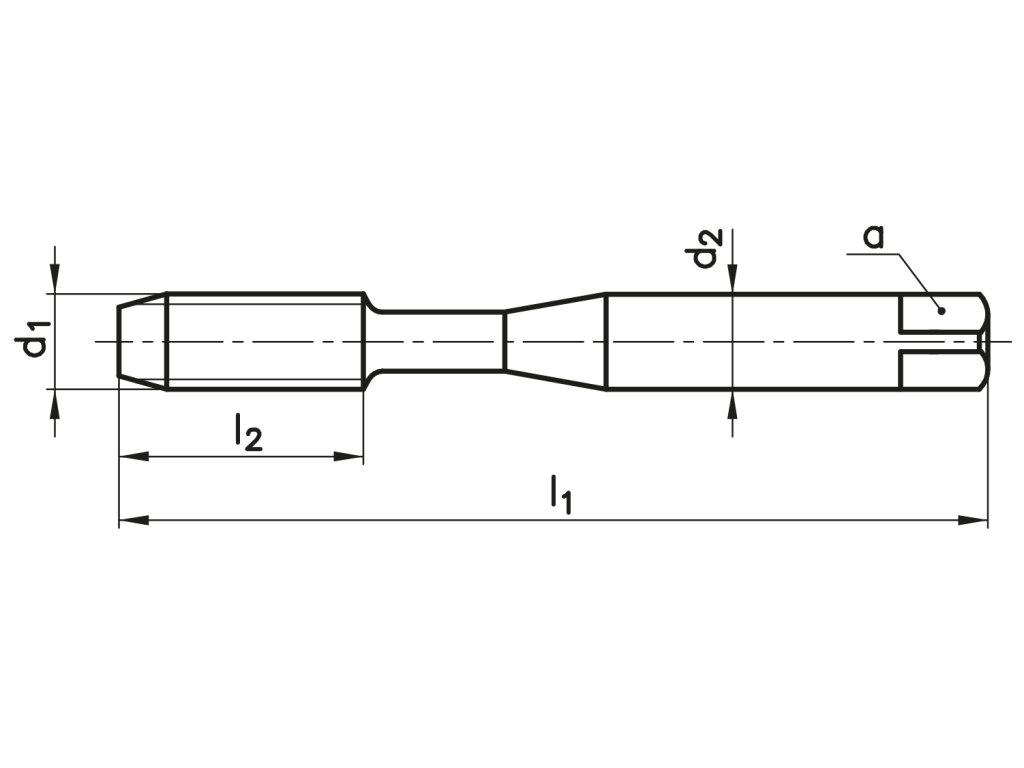

Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | ⦾ | ⦾* |
|---|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 5 | 3,5 | 2,7 | 2,5 | 2,6 |
| M 4 | 0,7 | 6H | 63 | 7 | 4,5 | 3,4 | 3,3 | 3,4 |
| M 5 | 0,8 | 6H | 70 | 8 | 6 | 4,9 | 4,2 | 4,3 |
| M 6 | 1 | 6H | 80 | 10 | 6 | 4,9 | 5 | 5,1 |
| M 8 | 1,25 | 6H | 90 | 13 | 8 | 6,2 | 6,8 | 6,9 |
| M 10 | 1,5 | 6H | 100 | 15 | 10 | 8 | 8,5 | 8,6 |
⦾ - hole diameter
⦾* - hole diameter for recommended materials
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TIG |
| Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper |
| Product line: | NX FeniX Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
