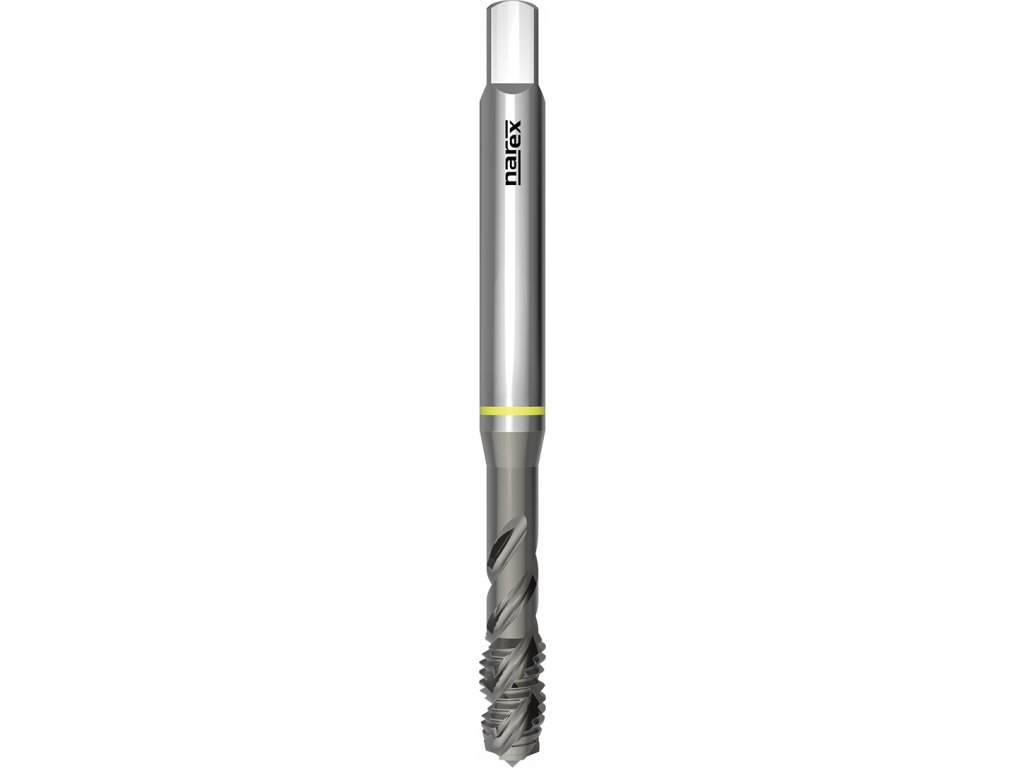

2720 - Machine tap with right-hand spiral flutes 45°
Code: 041536160030000
Variant: M 3x0,5 6H
In stock
| 041536160030000
€18,49
€15,28
excl. VAT
Variant: M 4x0,7 6H
In stock
| 041536160040000
€18,49
€15,28
excl. VAT
Variant: M 5x0,8 6H
In stock
| 041536160050000
€18,90
€15,62
excl. VAT
Variant: M 6x1 6H
In stock
| 041536160060000
€19,51
€16,12
excl. VAT
Variant: M 8x1,25 6H
In stock
| 041536160080000
€22,87
€18,90
excl. VAT
Variant: M 10x1,5 6H
In stock
| 041536160100000
€26,84
€22,18
excl. VAT
Product detailed description
Catalogue number: 2720
Machine tap with spiral flute, metric, DIN 371, AluSpeed coated, suitable for unalloyed aluminium.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type AL: Tap for unalloyed aluminium
Tap material: Super high speed steel
Coating: AluSpeed
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Spiral flute angle: 45°
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| N7.1 | Unalloyed aluminium | 15-35 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 5 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 7 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 8 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 10 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 13 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 15 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | ALS |
| Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1) |
| Machined material: | Unalloyed aluminium |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
