    2820 - Machine tap with right-hand spiral flutes 15°

    Code: 041536172030000
    2820 - Machine tap with right-hand spiral flutes 15°
    from €33,75 from €27,89 excl. VAT

    Choose variant

    Catalogue number: 2820

    Machine tap with spiral flute, metric, DIN 371, Futura Nano Top coated, suitable for short chipping high-alloyed and heat-treated steels



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type H: Tap for steels up to 1400 N/mm2Type H:   Tap for steels up to 1400 N/mm2

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Futura Nano Top coating (titanium aluminiumnitride)Coating:   Balinit® Futura Nano Top coating (titanium aluminiumnitride)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer D: Length 3,5-5 pitchChamfer D:   Length 3,5-5 pitch

    Spiral flute angle: 15°Spiral flute angle:   15°

    Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)


    Detailed information

    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 041536172030000
    €33,75
    €27,89 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 041536172040000
    €33,75
    €27,89 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 041536172050000
    €34,51
    €28,52 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 041536172060000
    €36
    €29,75 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 041536172080000
    €41,83
    €34,57 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 041536172100000
    €49,55
    €40,95 excl. VAT

    Product detailed description

    Catalogue number: 2820

    Machine tap with spiral flute, metric, DIN 371, Futura Nano Top coated, suitable for short chipping high-alloyed and heat-treated steels



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type H: Tap for steels up to 1400 N/mm2Type H:   Tap for steels up to 1400 N/mm2

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Futura Nano Top coating (titanium aluminiumnitride)Coating:   Balinit® Futura Nano Top coating (titanium aluminiumnitride)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer D: Length 3,5-5 pitchChamfer D:   Length 3,5-5 pitch

    Spiral flute angle: 15°Spiral flute angle:   15°

    Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P4.1High-alloyed steels <1400N/mm23-6
    P4.2Heat-treated steels <1400N/mm24-8

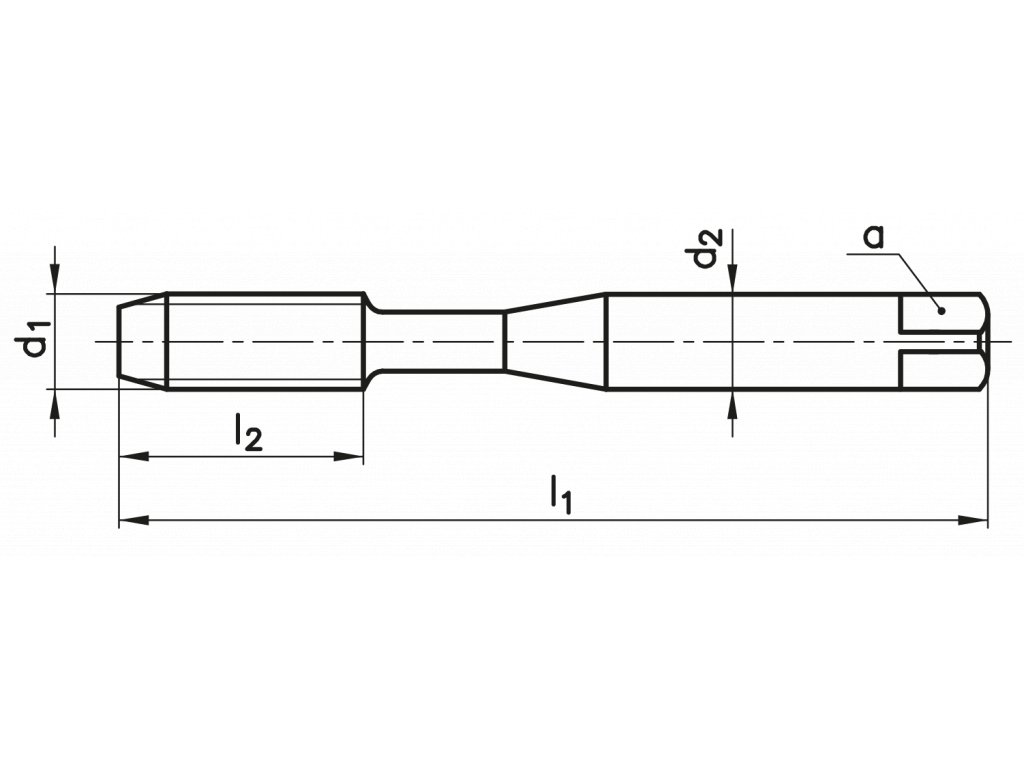

    Dimensions:

    2820: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5653,52,72,5
    M 40,76H6374,53,43,3
    M 50,86H70864,94,2
    M 616H801064,95
    M 81,256H901386,26,8
    M 101,56H100151088,5

    Additional parameters

    Category: Machine taps
    Coating: FNT
    Hole type: blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
    Machined material: High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
