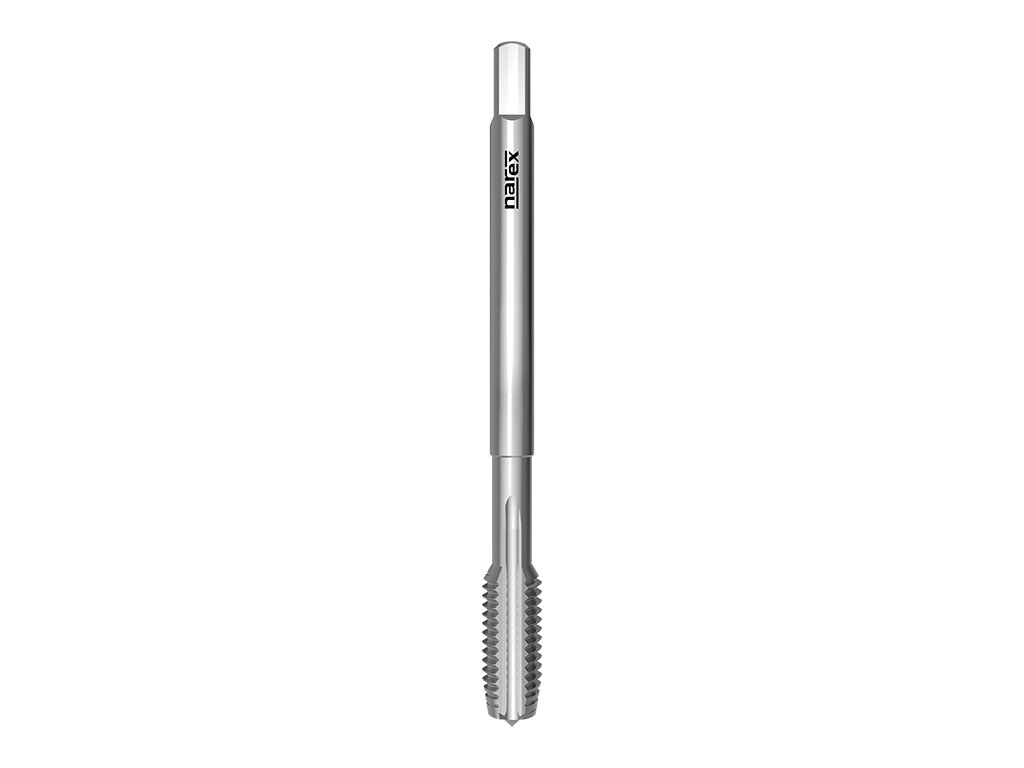

3004 - Machine tap with straight flutes

Code: 041531910012000
from €23,35 from €19,30 excl. VAT

Choose variant

Catalogue number: 3004

Machine tap with straight flutes, unified national coarse thread, DIN 376, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %



Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)


Detailed information

Variant: UNC 7/16x14 2B
Currently unavailable | 041531910012000
€23,35
€19,30 excl. VAT
Variant: UNC 1/2x13 2B
Currently unavailable | 041531910013000
€24,10
€19,92 excl. VAT
Variant: UNC 9/16x12 2B
Currently unavailable | 041531910014000
€33,96
€28,07 excl. VAT
Variant: UNC 5/8x11 2B
In stock | 041531910015000
€31,57
€26,09 excl. VAT
Variant: UNC 3/4x10 2B
Currently unavailable | 041531910017000
€41,30
€34,13 excl. VAT
Variant: UNC 7/8x9 2B
In stock | 041531910019000
€52,45
€43,35 excl. VAT
Variant: UNC 1x8 2B
Currently unavailable | 041531910021000
€69,64
€57,55 excl. VAT
Variant: UNC 1 1/8x7 2B
Currently unavailable | 041531910022000
€90,80
€75,04 excl. VAT

Product detailed description

Catalogue number: 3004

Machine tap with straight flutes, unified national coarse thread, DIN 376, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %



Features:

Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm24-6
P2.1Free-cutting steels <800N/mm28-10
K6.1Grey cast iron7-10
N8.2Aluminium alloysSi<10%12-15
N10.1Short chipping copper alloys10-15



Dimensions:

3004: kreslenka
d1Ptoll1l2d2ahole
UNC 7/16142B1002086,29,4
UNC 1/2132B110239710,75
UNC 9/16122B1102511912,25
UNC 5/8112B1102512913,5
UNC 3/4102B12530141116,5
UNC 7/892B140301814,519,5
UNC 182B160361814,522,25
UNC 1 1/872B18040221825

Additional parameters

Category: Machine taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <500N/mm2, Free-cutting steels <800N/mm2, Grey cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈376
Thread type: Unified Course Thread UNC
Tolerance: 2B
