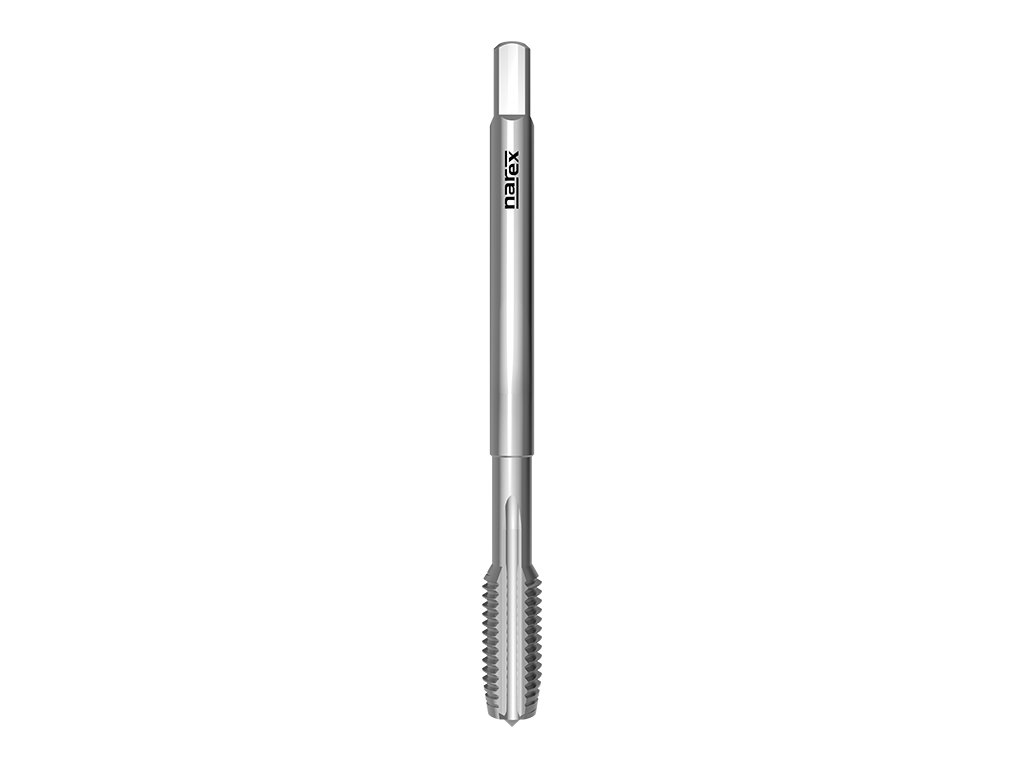

3005 - Machine tap with straight flutes

Code: 041531910103000
from €14,45 from €11,94 excl. VAT

Choose variant

Catalogue number: 3005

Machine tap with straight flutes, unified national fine thread, DIN 374 suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %



Thread UNF: Unified fine threadThread UNF:   Unified fine thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 374Tap standard:   ~ DIN 374

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)


Detailed information

Variant: UNF 5x44 2B
Currently unavailable | 041531910102000
€15,20
€12,56 excl. VAT
Variant: UNF 6x40 2B
Currently unavailable | 041531910103000
€14,45
€11,94 excl. VAT
Variant: UNF 8x36 2B
In stock | 041531910104000
€15,06
€12,45 excl. VAT
Variant: UNF 10x32 2B
In stock | 041531910105000
€16,02
€13,24 excl. VAT
Variant: UNF 12x28 2B
Currently unavailable | 041531910106000
€17,80
€14,71 excl. VAT
Variant: UNF 1/4x28 2B
Currently unavailable | 041531910107000
€18
€14,88 excl. VAT
Variant: UNF 5/16x24 2B
In stock | 041531910109000
€17,94
€14,83 excl. VAT
Variant: UNF 3/8x24 2B
Currently unavailable | 041531910111000
€19,59
€16,19 excl. VAT
Variant: UNF 7/16x20 2B
Currently unavailable | 041531910112000
€25,06
€20,71 excl. VAT
Variant: UNF 1/2x20 2B
Currently unavailable | 041531910113000
€24,10
€19,92 excl. VAT
Variant: UNF 9/16x18 2B
In stock | 041531910114000
€39,03
€32,26 excl. VAT
Variant: UNF 5/8x18 2B
In stock | 041531910115000
€31,91
€26,37 excl. VAT
Variant: UNF 3/4x16 2B
In stock | 041531910117000
€43,75
€36,16 excl. VAT
Variant: UNF 7/8x14 2B
Currently unavailable | 041531910119000
€54,85
€45,33 excl. VAT
Variant: UNF 1x12 2B
In stock | 041531910121000
€74,02
€61,17 excl. VAT

Product detailed description

Catalogue number: 3005

Machine tap with straight flutes, unified national fine thread, DIN 374 suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %



Features:

Thread UNF: Unified fine threadThread UNF:   Unified fine thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 374Tap standard:   ~ DIN 374

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm24-6
P2.1Free-cutting steels <800N/mm28-10
K6.1Grey cast iron7-10
N8.2Aluminium alloysSi<10%12-15
N10.1Short chipping copper alloys10-15



Dimensions:

3005: kreslenka
d1Ptoll1l2d2ahole
UNF 5442B5692,2-2,7
UNF 6402B56112,52,13
UNF 8362B63122,82,13,5
UNF 10322B70133,52,74,1
UNF 12282B8015434,65
UNF 1/4282B80154,53,45,5
UNF 5/16242B901864,96,9
UNF 3/8242B902075,58,5
UNF 7/16202B1002086,29,9
UNF 1/2202B100219711,5
UNF 9/16182B1002111912,9
UNF 5/8182B1002112914,5
UNF 3/4162B11024141117,5
UNF 7/8142B125241814,520,5
UNF 1122B140261814,523,25

Additional parameters

Category: Machine taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <500N/mm2, Free-cutting steels <800N/mm2, Grey cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈374
Thread type: Unified Fine Thread UNF
Tolerance: 2B
