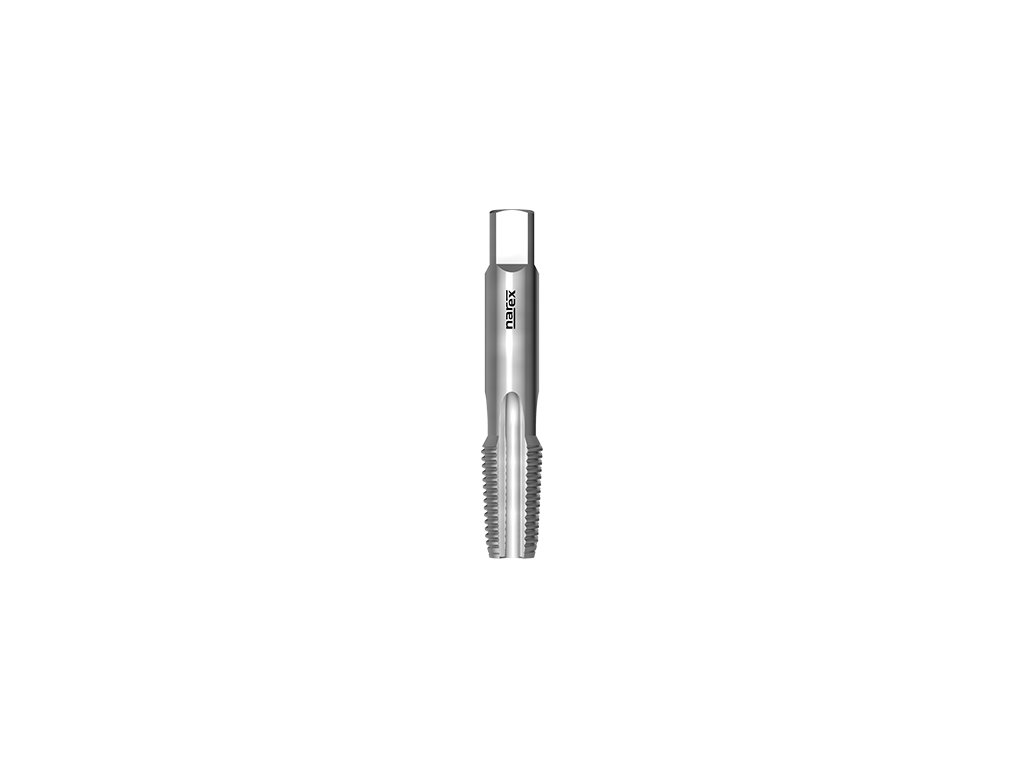

300NPT - Machine tap with straight flutes

Code: 041529920003000
from €57,72 from €47,70 excl. VAT

Choose variant

Catalogue number: 300NPT

Machine tap with straight flutes, American Taper Pipe Thread, DIN 2181, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %



Thread NPT: Standard american taper pipe threadThread NPT:   Standard american taper pipe thread

Profile sketch: 60°Profile sketch:   60°

Taper thread 1:16: Taper thread 1:16Taper thread 1:16:   Taper thread 1:16

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 2181Tap standard:   ~ DIN 2181

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch


Detailed information

Variant: NPT 1/8x27
Currently unavailable | 041529920003000
€57,72
€47,70 excl. VAT
Variant: NPT 1/4x18
In stock | 041529920007000
€64,09
€52,97 excl. VAT
Variant: NPT 3/8x18
In stock | 041529920011000
€78,35
€64,75 excl. VAT
Variant: NPT 1/2x14
In stock | 041529920013000
€115,72
€95,64 excl. VAT
Variant: NPT 3/4x14
Currently unavailable | 041529920017000
€147,78
€122,13 excl. VAT
Variant: NPT 1x11 1/2
In stock | 041529920021000
€242,13
€200,11 excl. VAT
Variant: NPT 1 1/4x11 1/2
Currently unavailable | 041529920023000
€361,77
€298,98 excl. VAT
Variant: NPT 1 1/2x11 1/2
In stock | 041529920025000
€441,54
€364,91 excl. VAT
Variant: NPT 2x11 1/2
In stock | 041529920029000
€502,82
€415,55 excl. VAT

Product detailed description

Catalogue number: 300NPT

Machine tap with straight flutes, American Taper Pipe Thread, DIN 2181, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %



Features:

Thread NPT: Standard american taper pipe threadThread NPT:   Standard american taper pipe thread

Profile sketch: 60°Profile sketch:   60°

Taper thread 1:16: Taper thread 1:16Taper thread 1:16:   Taper thread 1:16

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 2181Tap standard:   ~ DIN 2181

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm22-6
P2.1Free-cutting steels <800N/mm22-6
K6.1Grey cast iron1-5
N8.2Aluminium alloysSi<10%2-10
N10.1Short chipping copper alloys2-10



Dimensions:

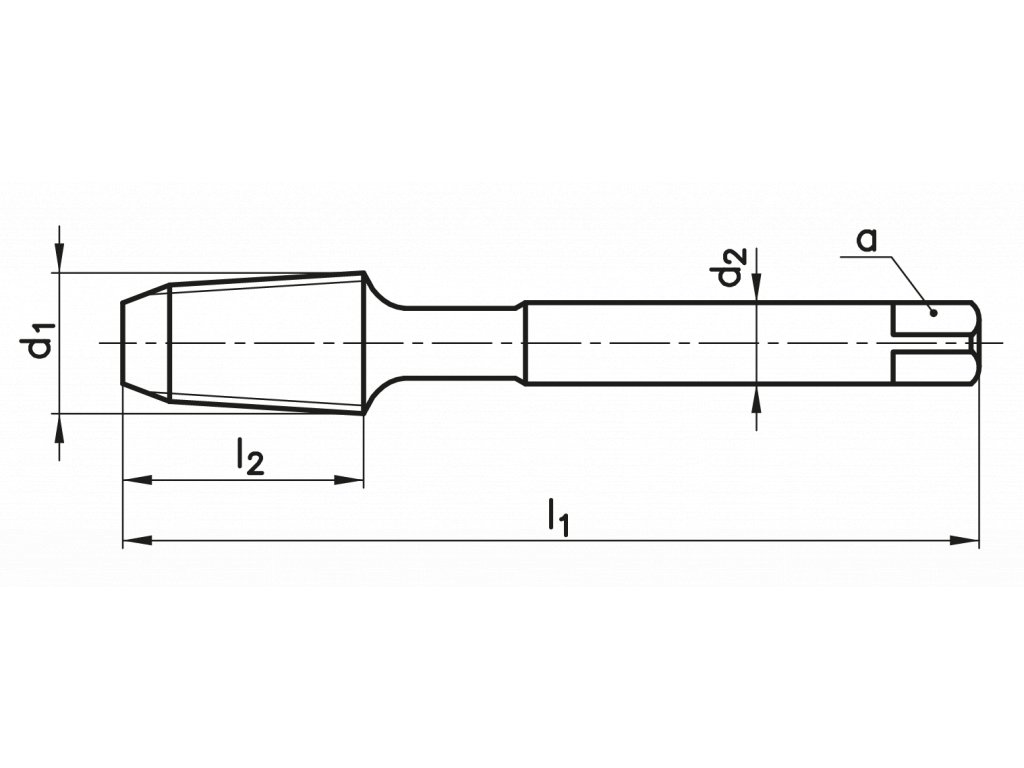

300NPT: kreslenka
d1Ptoll1l2d2ahole
NPT 1/827651575,58,5
NPT 1/418702211911
NPT 3/818752312914,4
NPT 1/2148030161217,8
NPT 3/41410031201623,15
NPT 111 1/211036252029,05
NPT 1 1/411 1/212536322437,8
NPT 1 1/211 1/214036362943,85
NPT 211 1/216036362955,85

Additional parameters

Category: Machine taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <500N/mm2, Free-cutting steels <800N/mm2, Grey cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈2181
Thread type: American Taper Pipe Thread
Tolerance: -
