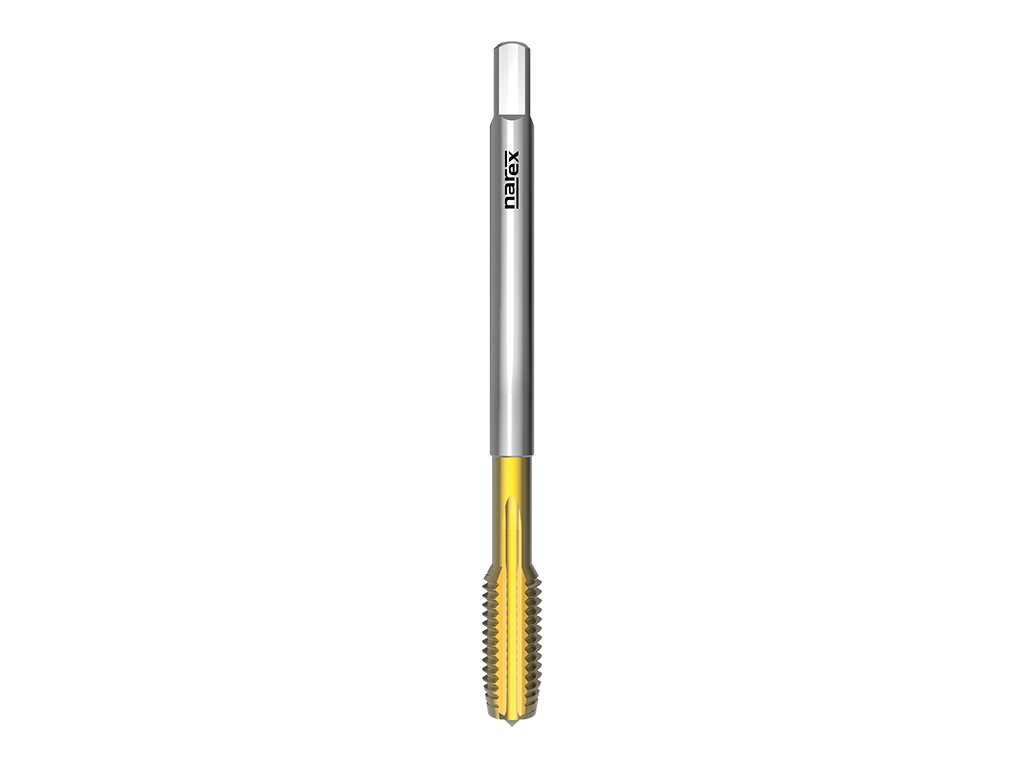

3014 - Machine tap with straight flutes

Code: 041535910012000
from €30,48 from €25,19 excl. VAT

Choose variant

Catalogue number: 3014

Machine tap with straight flutes, uniffied national coarse thread, DIN 376, TiN coated, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10%.



Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)


Detailed information

Variant: UNC 7/16x14 2B
Currently unavailable | 041535910012000
€30,48
€25,19 excl. VAT
Variant: UNC 1/2x13 2B
In stock | 041535910013000
€31,36
€25,92 excl. VAT
Variant: UNC 9/16x12 2B
Currently unavailable | 041535910014000
€44,17
€36,50 excl. VAT
Variant: UNC 5/8x11 2B
In stock | 041535910015000
€41,09
€33,96 excl. VAT
Variant: UNC 3/4x10 2B
In stock | 041535910017000
€53,75
€44,42 excl. VAT
Variant: UNC 7/8x9 2B
Currently unavailable | 041535910019000
€68,21
€56,37 excl. VAT
Variant: UNC 1x8 2B
Currently unavailable | 041535910021000
€90,60
€74,88 excl. VAT
Variant: UNC 1 1/8x7 2B
Currently unavailable | 041535910022000
€118,12
€97,62 excl. VAT

Product detailed description

Catalogue number: 3014

Machine tap with straight flutes, uniffied national coarse thread, DIN 376, TiN coated, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10%.



Features:

Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Hole type: Through hole (thread length L < 1,5xd1)Hole type:   Through hole (thread length L < 1,5xd1)

Hole type: Blind hole (thread length < 1,5 d1)Hole type:   Blind hole (thread length < 1,5 d1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm25-8
P2.1Free-cutting steels <800N/mm210-14
K6.1Grey cast iron8-12
N8.2Aluminium alloysSi<10%14-20
N10.1Short chipping copper alloys15-25



Dimensions:

3014: kreslenka
d1Ptoll1l2d2ahole
UNC 7/16142B1002086,29,4
UNC 1/2132B110239710,75
UNC 9/16122B1102511912,25
UNC 5/8112B1102512913,5
UNC 3/4102B12530141116,5
UNC 7/892B140301814,519,5
UNC 182B160361814,522,25
UNC 1 1/872B18040221825

Additional parameters

Category: Machine taps
Coating: TiN
Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <500N/mm2, Free-cutting steels <800N/mm2, Grey cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈376
Thread type: Unified Course Thread UNC
Tolerance: 2B
