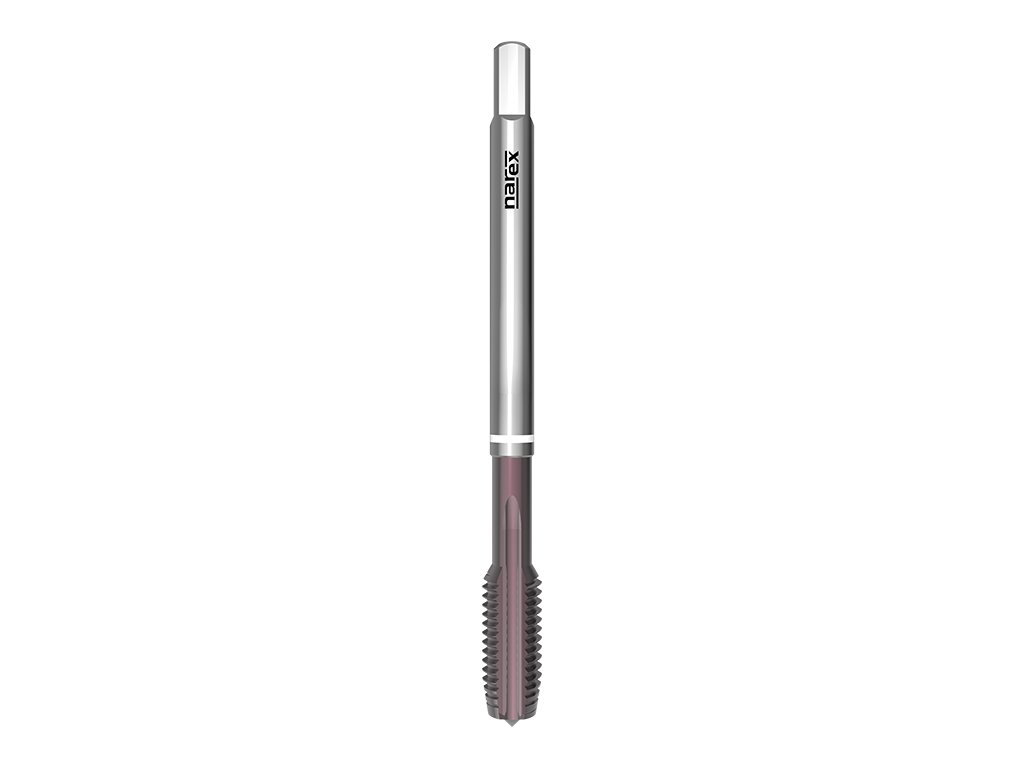

    3080 - Machine tap with straight flutes

    Code: 041538228030000
    3080 - Machine tap with straight flutes
    from €20,75 from €17,15 excl. VAT

    Choose variant

    Catalogue number: 3080

    Machine tap with straight flutes, metric, DIN 376, DIN 374 TiCN coated, suitable for grey cast iron, aluminium alloys with Si>10%.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type GG: Tap for cast ironType GG:   Tap for cast iron

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


    Detailed information

    Variant: M 3x0,5 6HX
    Currently unavailable | 041538228030000
    €20,75
    €17,15 excl. VAT
    Variant: M 4x0,7 6HX
    In stock | 041538228040000
    €21,03
    €17,38 excl. VAT
    Variant: M 5x0,8 6HX
    In stock | 041538228050000
    €21,43
    €17,71 excl. VAT
    Variant: M 6x0,75 6HX
    In stock | 041538428068000
    €33,42
    €27,62 excl. VAT
    Variant: M 6x1 6HX
    In stock | 041538228060000
    €21,57
    €17,83 excl. VAT
    Variant: M 8x1 6HX
    In stock | 041538428087000
    €33,63
    €27,79 excl. VAT
    Variant: M 8x1,25 6HX
    In stock | 041538228080000
    €24,45
    €20,21 excl. VAT
    Variant: M 10x1 6HX
    In stock | 041538428107000
    €33,96
    €28,07 excl. VAT
    Variant: M 10x1,25 6HX
    In stock | 041538428106000
    €44,24
    €36,56 excl. VAT
    Variant: M 10x1,5 6HX
    In stock | 041538228100000
    €28,14
    €23,26 excl. VAT
    Variant: M 12x1 6HX
    In stock | 041538428127000
    €40,20
    €33,22 excl. VAT
    Variant: M 12x1,25 6HX
    In stock | 041538428126000
    €45,34
    €37,47 excl. VAT
    Variant: M 12x1,5 6HX
    In stock | 041538428125000
    €39,65
    €32,77 excl. VAT
    Variant: M 12x1,75 6HX
    In stock | 041538228120000
    €33,83
    €27,96 excl. VAT
    Variant: M 14x1,5 6HX
    In stock | 041538428145000
    €51,15
    €42,27 excl. VAT
    Variant: M 14x2 6HX
    In stock | 041538228140000
    €42,18
    €34,86 excl. VAT
    Variant: M 16x1,5 6HX
    In stock | 041538428165000
    €56,29
    €46,52 excl. VAT
    Variant: M 16x2 6HX
    In stock | 041538228160000
    €49,92
    €41,26 excl. VAT
    Variant: M 18x1,5 6HX
    In stock | 041538428185000
    €70,40
    €58,18 excl. VAT
    Variant: M 18x2,5 6HX
    In stock | 041538228180000
    €71,69
    €59,25 excl. VAT
    Variant: M 20x1,5 6HX
    Currently unavailable | 041538428205000
    €82,04
    €67,80 excl. VAT
    Variant: M 20x2,5 6HX
    In stock | 041538228200000
    €76,63
    €63,33 excl. VAT
    Variant: M 22x2,5 6HX
    In stock | 041538228220000
    €103,06
    €85,17 excl. VAT
    Variant: M 24x3 6HX
    In stock | 041538228240000
    €96,49
    €79,74 excl. VAT
    Variant: M 27x3 6HX
    In stock | 041538228270000
    €126,34
    €104,41 excl. VAT
    Variant: M 30x3,5 6HX
    In stock | 041538228300000
    €155,91
    €128,85 excl. VAT

    Product detailed description

    Catalogue number: 3080

    Machine tap with straight flutes, metric, DIN 376, DIN 374 TiCN coated, suitable for grey cast iron, aluminium alloys with Si>10%.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type GG: Tap for cast ironType GG:   Tap for cast iron

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




    Machined materials:

    GroupMachined materialCutting speed
    K6.1Grey cast iron15-20
    N8.2Aluminium alloysSi<10%12-20



    Dimensions:

    3080: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56HX5692,2-2,5
    M 40,76HX63122,82,13,3
    M 50,86HX70133,52,74,2
    M 60,756HX80154,53,45,2
    M 616HX80154,53,45
    M 816HX901864,97
    M 81,256HX901864,96,8
    M 101,56HX1002075,58,5
    M 1016HX902075,59
    M 101,256HX1002075,58,8
    M 1216HX100219711
    M 121,756HX110239710,2
    M 121,56HX100219710,5
    M 121,256HX100219710,8
    M 141,56HX1002111912,5
    M 1426HX1102511912
    M 1626HX1102512914
    M 161,56HX1002112914,5
    M 181,56HX11024141116,5
    M 182,56HX12530141115,5
    M 201,56HX12524161218,5
    M 202,56HX14030161217,5
    M 222,56HX140301814,519,5
    M 2436HX160361814,521
    M 2736HX16036201624
    M 303,56HX18040221826,5

    Additional parameters

    Category: Machine taps
    Coating: TiCN
    Hole type: through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
    Machined material: Grey cast iron, Aluminium alloysSi<10%
    Product line: NAREX Zdanice Product Line
    Standard: DIN 374, DIN 376
    Thread type: Metric ISO Thread, Metric ISO Fine Thread
    Tolerance: 6HX
