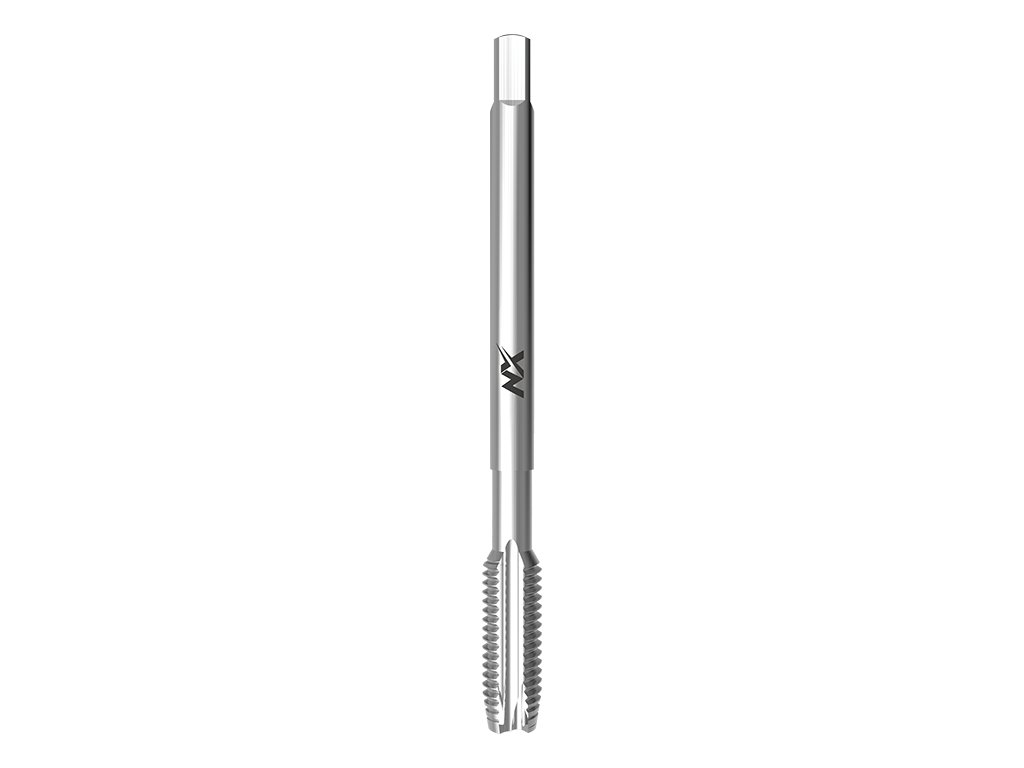

3350NX - Machine tap with straight flutes and spiral point

Code: 042031291120000
€129,11 €106,70 excl. VAT

Choose variant

Catalogue number: 3350NX

High precision machine tap, metric, with straight flutes and spiral point, DIN 376, for nickel alloys.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type Ni: Tap for nickel alloysType Ni:   Tap for nickel alloys

Tap material: Powder high speed steelTap material:   Powder high speed steel

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 12x1,75 6H
In stock | 042031291120000
€129,11
€106,70 excl. VAT

Product detailed description

Catalogue number: 3350NX

High precision machine tap, metric, with straight flutes and spiral point, DIN 376, for nickel alloys.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type Ni: Tap for nickel alloysType Ni:   Tap for nickel alloys

Tap material: Powder high speed steelTap material:   Powder high speed steel

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
S13.1Nickel5-8



Dimensions:

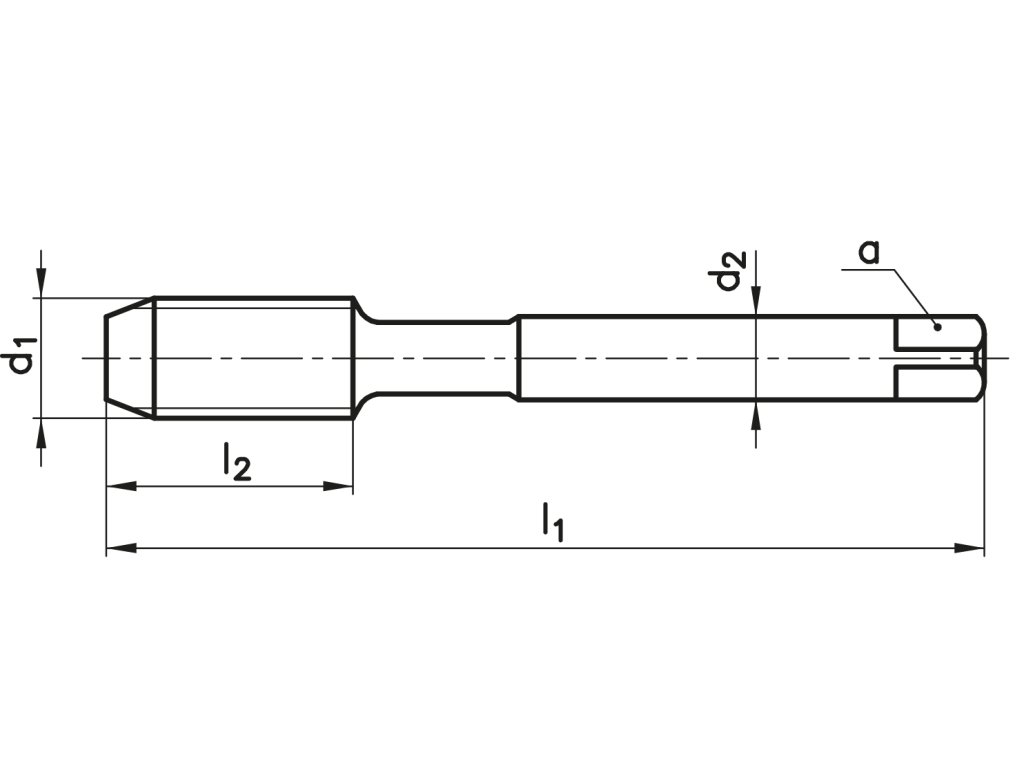

3350NX: kreslenka
d1Ptoll1l2d2ahole
M 121,756H110289710,2

Additional parameters

Category: Machine taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
Machined material: Nickel
Product line: NX Precision Taps Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6H
