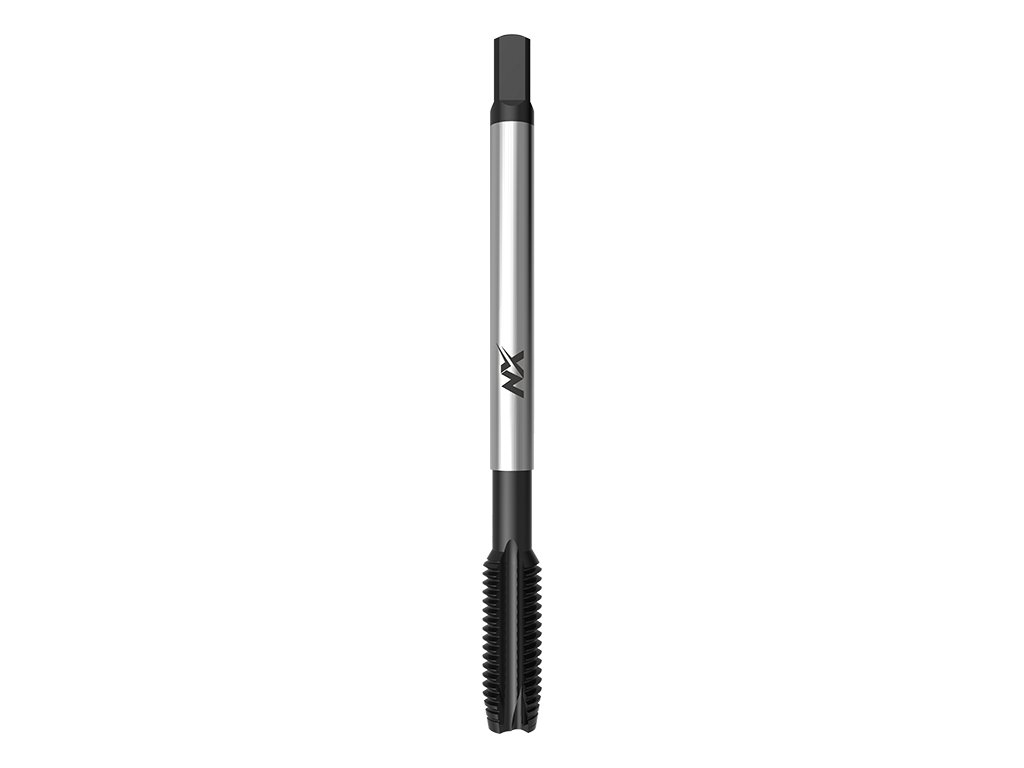

3440NX - Machine tap with straight flutes and spiral point
Code: 042037295120000
Variant: M 12x1,75 6H
Currently unavailable
| 042037295120000
€102,83
€84,98
excl. VAT
Product detailed description
Catalogue number: 3440NX
High precision machine tap, metric, with straight flutes and spiral point, DIN 376, steam oxided, for titanium alloys.
Features:
![Thread M: ISO Metric coarse thread](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1001.png)
![Profile sketch: 60°](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1085.png)
![Thread standard: DIN 13](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1040.png)
![Type Ti: Tap for titanium and titanium alloys](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1017.png)
![Tap material: Powder high speed steel](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1052.png)
![Coating: Oxidation](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1094.png)
![Tap standard: DIN 376](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1021.png)
![Thread tolerance: ISO 2 - 6H](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1070.png)
![Chamfer B: Length 3,5-6 pitch](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1061.png)
![Hole type: Through hole (thread length L > 1,5xd1)](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/piktogramy/1101.png)
Machined materials:
Group | Machined material | Cutting speed |
---|---|---|
S12.1 | Titanium alloys | 5-8 |
Dimensions:
![3440NX: kreslenka](https://cdn.myshoptet.com/usr/www.narexzd.com/user/documents/pics/kreslenky/3000.png)
d1 | P | tol | l1 | l2 | d2 | a | hole |
---|---|---|---|---|---|---|---|
M 12 | 1,75 | 6H | 110 | 28 | 9 | 7 | 10,2 |
Additional parameters
Category: | Machine taps |
---|---|
Coating: | OX |
Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
Machined material: | Titanium alloys |
Product line: | NX Precision Taps Product Line |
Standard: | DIN 376 |
Thread type: | Metric ISO Thread |
Tolerance: | 6H |
