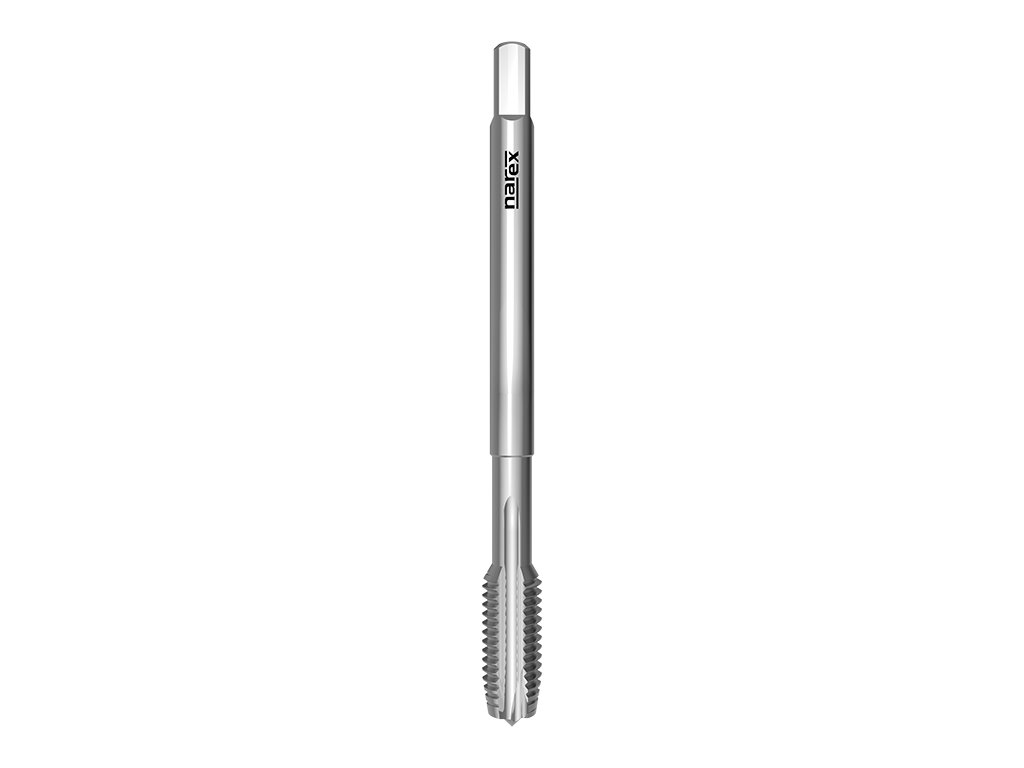

3505 - Machine tap with straight flutes and spiral point

Code: 041531920103000
from €17,45 from €14,42 excl. VAT

Choose variant

Catalogue number: 3505

Machine tap with straight flutes and spiral point, unified national fine thread, DIN 374, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10 %



Thread UNF: Unified fine threadThread UNF:   Unified fine thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 374Tap standard:   ~ DIN 374

Thread tolerance: 2BThread tolerance:   2B

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: UNF 5x44 2B
In stock (>10 pcs) | 041531920102000
€19,31
€15,96 excl. VAT
Variant: UNF 6x40 2B
In stock (>10 pcs) | 041531920103000
€17,45
€14,42 excl. VAT
Variant: UNF 8x36 2B
In stock (>10 pcs) | 041531920104000
€17,45
€14,42 excl. VAT
Variant: UNF 10x32 2B
In stock (>10 pcs) | 041531920105000
€18,10
€14,96 excl. VAT
Variant: UNF 12x28 2B
In stock (>10 pcs) | 041531920106000
€21,32
€17,62 excl. VAT
Variant: UNF 1/4x28 2B
In stock (>10 pcs) | 041531920107000
€20,15
€16,65 excl. VAT
Variant: UNF 5/16x24 2B
In stock (>10 pcs) | 041531920109000
€21,42
€17,70 excl. VAT
Variant: UNF 3/8x24 2B
In stock (>10 pcs) | 041531920111000
€22,68
€18,74 excl. VAT
Variant: UNF 7/16x20 2B
In stock (>10 pcs) | 041531920112000
€29,20
€24,13 excl. VAT
Variant: UNF 1/2x20 2B
In stock (>10 pcs) | 041531920113000
€28,74
€23,75 excl. VAT
Variant: UNF 9/16x18 2B
In stock (>10 pcs) | 041531920114000
€43,34
€35,82 excl. VAT
Variant: UNF 5/8x18 2B
In stock (>10 pcs) | 041531920115000
€38,85
€32,11 excl. VAT
Variant: UNF 3/4x16 2B
In stock (>10 pcs) | 041531920117000
€51,20
€42,31 excl. VAT
Variant: UNF 7/8x14 2B
In stock (>10 pcs) | 041531920119000
€62,42
€51,59 excl. VAT
Variant: UNF 1x12 2B
In stock (>10 pcs) | 041531920121000
€84,64
€69,95 excl. VAT

Product detailed description

Catalogue number: 3505

Machine tap with straight flutes and spiral point, unified national fine thread, DIN 374, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10 %



Features:

Thread UNF: Unified fine threadThread UNF:   Unified fine thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 374Tap standard:   ~ DIN 374

Thread tolerance: 2BThread tolerance:   2B

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm25-8
P1.2Plain cast steels <500N/mm26-10
P2.1Free-cutting steels <800N/mm210-14
P2.2Structural steels <800N/mm210-14
P2.3Plain cast steels <800N/mm210-14
K6.2Spher. graphite and mall. cast iron4-7
N8.1Aluminium alloysSi<10%14-20
N8.2Aluminium alloysSi<10%12-15
N10.1Short chipping copper alloys12-20



Dimensions:

3505: kreslenka
d1Ptoll1l2d2ahole
UNF 5442B5692,2-2,7
UNF 6402B56112,52,13
UNF 8362B63122,82,13,5
UNF 10322B70133,52,74,1
UNF 12282B8015434,65
UNF 1/4282B80154,53,45,5
UNF 5/16242B901864,96,9
UNF 3/8242B902075,58,5
UNF 7/16202B1002086,29,9
UNF 1/2202B100219711,5
UNF 9/16182B1002111912,9
UNF 5/8182B1002112914,5
UNF 3/4162B11024141117,5
UNF 7/8142B125241814,520,5
UNF 1122B140261814,523,25

Additional parameters

Category: Machine taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈374
Thread type: Unified Fine Thread UNF
Tolerance: 2B
