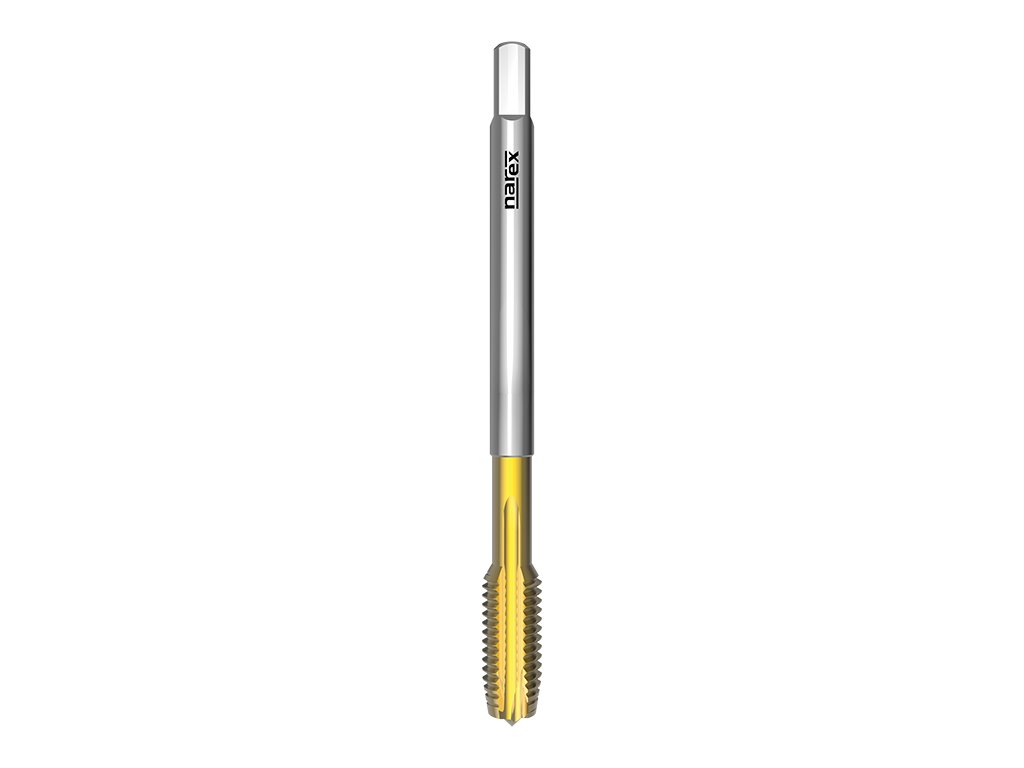

3510 - Machine tap with straight flutes and spiral point

Code: 041535252050000
from €21,03 from €17,38 excl. VAT

Choose variant

Catalogue number: 3510

Machine tap with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, TiN coated, suitable for structural steels, plain cast steels, free cutting steels, possible use in short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys Si<10 %



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: DIN 376Tap standard:   DIN 376

Tap standard: DIN 374Tap standard:   DIN 374

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 3x0,5 6H
Currently unavailable | 041535252030000
€21,56
€17,82 excl. VAT
Variant: M 4x0,5 6H
In stock (>10 pcs) | 041535452041000
€28,52
€23,57 excl. VAT
Variant: M 4x0,7 6H
In stock (>10 pcs) | 041535252040000
€21,93
€18,12 excl. VAT
Variant: M 5x0,5 6H
In stock (>10 pcs) | 041535452051000
€30,17
€24,93 excl. VAT
Variant: M 5x0,8 6H
In stock (>10 pcs) | 041535252050000
€21,03
€17,38 excl. VAT
Variant: M 6x0,5 6H
In stock (>10 pcs) | 041535452069000
€30,47
€25,18 excl. VAT
Variant: M 6x0,75 6H
In stock (>10 pcs) | 041535452068000
€30,07
€24,85 excl. VAT
Variant: M 6x1 6H
In stock (>10 pcs) | 041535252060000
€21,48
€17,75 excl. VAT
Variant: M 7x0,75 6H
In stock (2 pcs) | 041535452078000
€33,01
€27,28 excl. VAT
Variant: M 7x1 6H
In stock (4 pcs) | 041535252070000
€25,97
€21,46 excl. VAT
Variant: M 8x0,75 6H
In stock (>10 pcs) | 041535452088000
€33,69
€27,84 excl. VAT
Variant: M 8x1 6H
In stock (>10 pcs) | 041535452087000
€30,47
€25,18 excl. VAT
Variant: M 8x1,25 6H
In stock (>10 pcs) | 041535252080000
€22,83
€18,87 excl. VAT
Variant: M 10x0,75 6H
In stock (6 pcs) | 041535452108000
€43,71
€36,12 excl. VAT
Variant: M 10x1 6H
In stock (>10 pcs) | 041535452107000
€31,74
€26,23 excl. VAT
Variant: M 10x1,25 6H
In stock (>10 pcs) | 041535452106000
€40,04
€33,09 excl. VAT
Variant: M 10x1,5 6H
In stock (>10 pcs) | 041535252100000
€26,20
€21,65 excl. VAT
Variant: M 12x1 6H
In stock (>10 pcs) | 041535452127000
€37,12
€30,68 excl. VAT
Variant: M 12x1,25 6H
In stock (>10 pcs) | 041535452126000
€41,61
€34,39 excl. VAT
Variant: M 12x1,5 6H
In stock (>10 pcs) | 041535452125000
€34,87
€28,82 excl. VAT
Variant: M 12x1,75 6H
In stock (>10 pcs) | 041535252120000
€31,88
€26,35 excl. VAT
Variant: M 14x1 6H
In stock (2 pcs) | 041535452147000
€49,17
€40,64 excl. VAT
Variant: M 14x1,25 6H
In stock (9 pcs) | 041535452146000
€46,78
€38,66 excl. VAT
Variant: M 14x1,5 6H
In stock (>10 pcs) | 041535452145000
€46,25
€38,22 excl. VAT
Variant: M 14x2 6H
In stock (>10 pcs) | 041535252140000
€39,74
€32,84 excl. VAT
Variant: M 15x1 6H
In stock (6 pcs) | 041535452157000
€58,38
€48,25 excl. VAT
Variant: M 15x1,5 6H
In stock (2 pcs) | 041535452155000
€75,07
€62,04 excl. VAT
Variant: M 16x1 6H
In stock (4 pcs) | 041535452167000
€55,22
€45,64 excl. VAT
Variant: M 16x1,5 6H
In stock (>10 pcs) | 041535452165000
€52,77
€43,61 excl. VAT
Variant: M 16x2 6H
In stock (>10 pcs) | 041535252160000
€45,28
€37,42 excl. VAT
Variant: M 18x1 6H
In stock (1 pcs) | 041535452187000
€71,34
€58,96 excl. VAT
Variant: M 18x1,5 6H
In stock (5 pcs) | 041535452185000
€65,50
€54,13 excl. VAT
Variant: M 18x2 6H
In stock (4 pcs) | 041535452184000
€73,35
€60,62 excl. VAT
Variant: M 18x2,5 6H
In stock (>10 pcs) | 041535252180000
€63,39
€52,39 excl. VAT
Variant: M 20x1 6H
In stock (7 pcs) | 041535452207000
€76,94
€63,59 excl. VAT
Variant: M 20x1,5 6H
In stock (>10 pcs) | 041535452205000
€73,51
€60,75 excl. VAT
Variant: M 20x2 6H
In stock (9 pcs) | 041535452204000
€100,07
€82,70 excl. VAT
Variant: M 20x2,5 6H
In stock (>10 pcs) | 041535252200000
€67,43
€55,73 excl. VAT
Variant: M 22x1 6H
Currently unavailable | 041535452227000
€107,02
€88,45 excl. VAT
Variant: M 22x1,5 6H
In stock (>10 pcs) | 041535452225000
€77,84
€64,33 excl. VAT
Variant: M 22x2 6H
In stock (7 pcs) | 041535452224000
€107,02
€88,45 excl. VAT
Variant: M 22x2,5 6H
In stock (5 pcs) | 041535252220000
€93,99
€77,68 excl. VAT
Variant: M 24x1 6H
In stock (2 pcs) | 041535452247000
€114,37
€94,52 excl. VAT
Variant: M 24x1,5 6H
In stock (5 pcs) | 041535452245000
€85,47
€70,64 excl. VAT
Variant: M 24x2 6H
In stock (1 pcs) | 041535452244000
€96,03
€79,36 excl. VAT
Variant: M 24x3 6H
In stock (>10 pcs) | 041535252240000
€89,07
€73,61 excl. VAT
Variant: M 25x1,5 6H
In stock (5 pcs) | 041535452255000
€153,57
€126,92 excl. VAT
Variant: M 26x1,5 6H
In stock (1 pcs) | 041535452265000
€110,10
€90,99 excl. VAT
Variant: M 27x1 6H
Currently unavailable | 041535452277000
€142,27
€117,58 excl. VAT
Variant: M 27x1,5 6H
In stock (2 pcs) | 041535452275000
€122,60
€101,32 excl. VAT
Variant: M 27x2 6H
In stock (3 pcs) | 041535452274000
€129,70
€107,19 excl. VAT
Variant: M 27x3 6H
In stock (10 pcs) | 041535252270000
€119,02
€98,36 excl. VAT
Variant: M 28x1,5 6H
Currently unavailable | 041535452285000
€126,41
€104,47 excl. VAT
Variant: M 28x2 6H
Currently unavailable | 041535452284000
€136,52
€112,83 excl. VAT
Variant: M 30x1 6H
In stock (2 pcs) | 041535452307000
€158,74
€131,19 excl. VAT
Variant: M 30x1,5 6H
In stock (2 pcs) | 041535452305000
€135,85
€112,27 excl. VAT
Variant: M 30x2 6H
In stock (2 pcs) | 041535452304000
€148,13
€122,42 excl. VAT
Variant: M 30x3,5 6H
In stock (>10 pcs) | 041535252300000
€143,77
€118,82 excl. VAT
Variant: M 32x1,5 6H
In stock (3 pcs) | 041535452325000
€162,06
€133,93 excl. VAT
Variant: M 33x1,5 6H
In stock (1 pcs) | 041535452335000
€180,52
€149,19 excl. VAT
Variant: M 33x2 6H
In stock (2 pcs) | 041535452334000
€182,03
€150,44 excl. VAT
Variant: M 33x3,5 6H
Currently unavailable | 041535252330000
€170,20
€140,66 excl. VAT
Variant: M 35x1,5 6H
In stock (1 pcs) | 041535452355000
€220,43
€182,17 excl. VAT
Variant: M 36x1,5 6H
Currently unavailable | 041535452365000
€200,45
€165,66 excl. VAT
Variant: M 36x2 6H
In stock (1 pcs) | 041535452364000
€225,07
€186,01 excl. VAT
Variant: M 36x3 6H
Currently unavailable | 041535452363000
€249,68
€206,35 excl. VAT
Variant: M 36x4 6H
In stock (6 pcs) | 041535252360000
€211,44
€174,74 excl. VAT
Variant: M 12x1,75 6G
In stock (>10 pcs) | 041535254120000
€31,88
€26,35 excl. VAT
Variant: M 14x2 6G
Currently unavailable | 041535254140000
€39,74
€32,84 excl. VAT
Variant: M 16x2 6G
Currently unavailable | 041535254160000
€45,28
€37,42 excl. VAT

Product detailed description

Catalogue number: 3510

Machine tap with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, TiN coated, suitable for structural steels, plain cast steels, free cutting steels, possible use in short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys Si<10 %



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: DIN 376Tap standard:   DIN 376

Tap standard: DIN 374Tap standard:   DIN 374

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm26-10
P1.2Plain cast steels <500N/mm28-12
P2.1Free-cutting steels <800N/mm210-14
P2.2Structural steels <800N/mm212-15
P2.3Plain cast steels <800N/mm212-15
K6.2Spher. graphite and mall. cast iron6-8
N8.1Aluminium alloysSi<10%15-30
N8.2Aluminium alloysSi<10%14-20
N10.1Short chipping copper alloys15-25



Dimensions:

3510: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5692,2-2,5
M 40,56H63122,82,13,5
M 40,76H63122,82,13,3
M 50,86H70133,52,74,2
M 50,56H70133,52,74,5
M 60,56H80154,53,45,5
M 616H80154,53,45
M 60,756H80154,53,45,2
M 70,756H80155,54,36,2
M 716H80155,54,36
M 80,756H801564,97,2
M 81,256H901864,96,8
M 816H901864,97
M 100,756H902075,59,2
M 101,256H1002075,58,8
M 101,56H1002075,58,5
M 1016H902075,59
M 1216H100219711
M 121,56H100219710,5
M 121,756H110239710,2
M 121,256H100219710,8
M 121,756G110239710,2
M 1416H1002111913
M 1426H1102511912
M 1426G1102511912
M 141,56H1002111912,5
M 141,256H1002111912,8
M 151,56H1002112913,5
M 1516H1002112914
M 1616H1002112915
M 1626H1102512914
M 1626G1102512914
M 161,56H1002112914,5
M 1816H11024141117
M 1826H12524141116
M 182,56H12530141115,5
M 181,56H11024141116,5
M 2016H12524161219
M 2026H14030161218
M 201,56H12524161218,5
M 202,56H14030161217,5
M 2216H125241814,521
M 222,56H140301814,519,5
M 2226H140301814,520
M 221,56H125241814,520,5
M 2416H140261814,523
M 2426H140261814,522
M 2436H160361814,521
M 241,56H140261814,522,5
M 251,56H140261814,523,5
M 261,56H140261814,524,5
M 2726H14026201625
M 271,56H14026201625,5
M 2716H14026201626
M 2736H16036201624
M 2826H14026201626
M 281,56H14026201626,5
M 301,56H15028221828,5
M 303,56H18040221826,5
M 3016H15028221829
M 3026H15028221828
M 321,56H15028221830,5
M 331,56H16030252031,5
M 333,56H18042252029,5
M 3326H16030252031
M 351,56H17030282233,5
M 3626H17030282234
M 361,56H17030282234,5
M 3646H20050282232
M 3636H20042282233

Additional parameters

Category: Machine taps
Coating: TiN
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN 374, DIN 376
Thread type: Metric ISO Thread, Metric ISO Fine Thread
Tolerance: 6H
