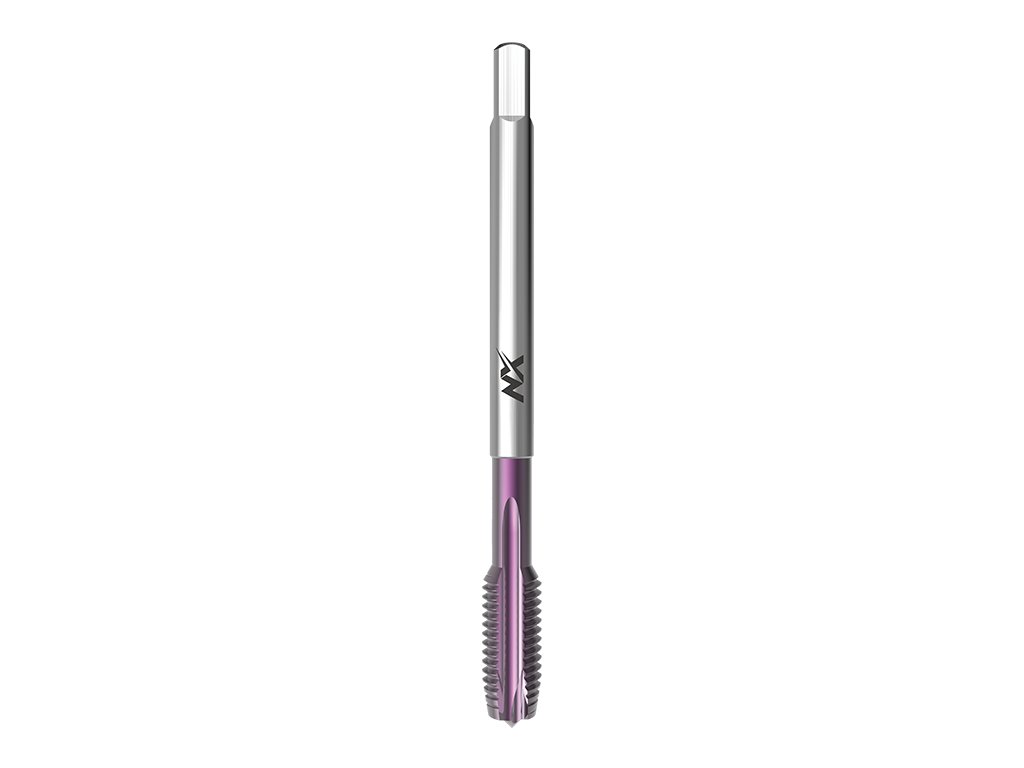

3520NX - Machine tap with straight flutes and spiral point

Code: 042036252120000
from €72,88 from €60,23 excl. VAT

Choose variant

Catalogue number: 3520NX

High precision machine tap, metric, with straight flutes and spiral point, DIN 376, TiAlN coated, suitable for construction steels, cast steels, free cutting steels, structural steels.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: TiAlNCoating:   TiAlN

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 12x1,75 6H
In stock | 042036252120000
€72,88
€60,23 excl. VAT
Variant: M 14x2 6H
In stock | 042036252140000
€74,38
€61,47 excl. VAT
Variant: M 16x2 6H
In stock | 042036252160000
€101,54
€83,92 excl. VAT
Variant: M 18x2,5 6H
In stock | 042036252180000
€150,73
€124,57 excl. VAT
Variant: M 20x2,5 6H
In stock | 042036252200000
€160,65
€132,77 excl. VAT

Product detailed description

Catalogue number: 3520NX

High precision machine tap, metric, with straight flutes and spiral point, DIN 376, TiAlN coated, suitable for construction steels, cast steels, free cutting steels, structural steels.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: TiAlNCoating:   TiAlN

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm215-22
P1.2Plain cast steels <500N/mm215-22
P2.1Free-cutting steels <800N/mm212-20
P2.2Structural steels <800N/mm212-20
P2.3Plain cast steels <800N/mm212-20



Dimensions:

3520NX: kreslenka
d1Ptoll1l2d2ahole
M 121,756H110289710,2
M 1426H1103011912
M 1626H1103212914
M 182,56H12534141115,5
M 202,56H14034161217,5

Additional parameters

Category: Machine taps
Coating: TiAlN
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2
Product line: NX Precision Taps Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6H
