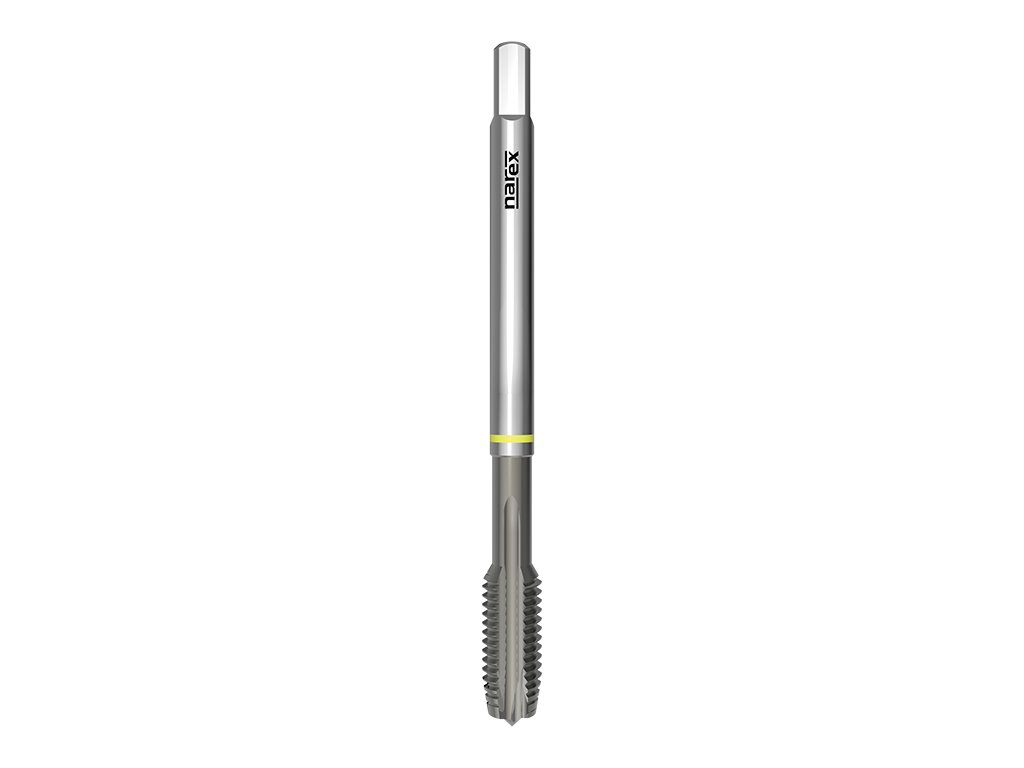

3570 - Machine tap with straight flutes and spiral point

Code: 041536266050000
from €29,04 from €24 excl. VAT

Choose variant

Catalogue number: 3570

Machine tap with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, AluSpeed coated, suitable for aluminium alloys with Si>10%.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type AL: Tap for unalloyed aluminiumType AL:   Tap for unalloyed aluminium

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: AluSpeedCoating:   AluSpeed

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 3x0,5 6H
Currently unavailable | 041536266030000
€29,92
€24,73 excl. VAT
Variant: M 4x0,7 6H
In stock | 041536266040000
€30,69
€25,36 excl. VAT
Variant: M 5x0,8 6H
In stock | 041536266050000
€29,04
€24 excl. VAT
Variant: M 6x1 6H
In stock | 041536266060000
€29,92
€24,73 excl. VAT
Variant: M 8x1,25 6H
In stock | 041536266080000
€31,98
€26,43 excl. VAT
Variant: M 10x1,5 6H
In stock | 041536266100000
€36,57
€30,22 excl. VAT
Variant: M 12x1,75 6H
In stock | 041536266120000
€42,93
€35,48 excl. VAT
Variant: M 14x2 6H
In stock | 041536266140000
€56,01
€46,29 excl. VAT
Variant: M 16x2 6H
Currently unavailable | 041536266160000
€61,96
€51,21 excl. VAT
Variant: M 18x2,5 6H
In stock | 041536266180000
€88,48
€73,12 excl. VAT
Variant: M 20x2,5 6H
In stock | 041536266200000
€91,49
€75,61 excl. VAT

Product detailed description

Catalogue number: 3570

Machine tap with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, AluSpeed coated, suitable for aluminium alloys with Si>10%.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type AL: Tap for unalloyed aluminiumType AL:   Tap for unalloyed aluminium

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: AluSpeedCoating:   AluSpeed

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
N8.2Aluminium alloysSi<10%15-30



Dimensions:

3570: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5692,22,5
M 40,76H63122,82,13,3
M 50,86H70133,52,74,2
M 616H80154,53,45
M 81,256H901864,96,8
M 101,56H1002075,58,5
M 121,756H110239710,2
M 1426H1102511912
M 1626H1102512914
M 182,56H12530141115,5
M 202,56H14030161217,5

Additional parameters

Category: Machine taps
Coating: ALS
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
Machined material: Aluminium alloysSi<10%
Product line: NAREX Zdanice Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6H
