    Home / Taps / Machine taps / 3590 - Machine tap with straight flutes and spiral point

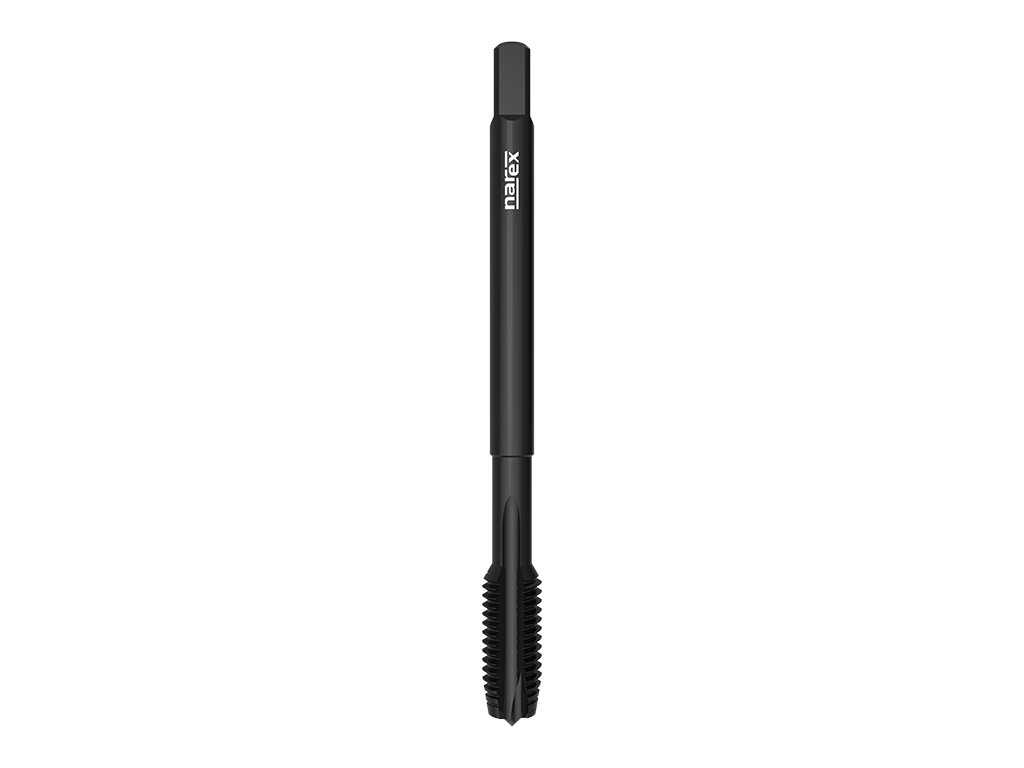

    3590 - Machine tap with straight flutes and spiral point

    Code: 041537266050000
    3590 - Machine tap with straight flutes and spiral point
    from €20,58 from €17,01 excl. VAT

    Choose variant

    Catalogue number: 3590

    machine tap with sraight flute and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for heat-treated steels, tool steels and aluminium alloys with Si>10%.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 3x0,5 6H
    Currently unavailable | 041537266030000
    €21,10
    €17,44 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 041537266040000
    €21,56
    €17,82 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 041537266050000
    €20,58
    €17,01 excl. VAT
    Variant: M 6x0,75 6H
    In stock (1 pcs) | 041537466068000
    €29,11
    €24,06 excl. VAT
    Variant: M 6x1 6H
    In stock (2 pcs) | 041537266060000
    €21,10
    €17,44 excl. VAT
    Variant: M 8x0,75 6H
    Currently unavailable | 041537466088000
    €32,26
    €26,66 excl. VAT
    Variant: M 8x1 6H
    In stock (9 pcs) | 041537466087000
    €29,33
    €24,24 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 041537266080000
    €22,60
    €18,68 excl. VAT
    Variant: M 10x1 6H
    Currently unavailable | 041537466107000
    €30,60
    €25,29 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 041537266100000
    €25,75
    €21,28 excl. VAT
    Variant: M 12x1 6H
    Currently unavailable | 041537466127000
    €35,40
    €29,26 excl. VAT
    Variant: M 12x1,5 6H
    Currently unavailable | 041537466125000
    €33,44
    €27,64 excl. VAT
    Variant: M 12x1,75 6H
    In stock (>10 pcs) | 041537266120000
    €30,17
    €24,93 excl. VAT
    Variant: M 14x1,5 6H
    Currently unavailable | 041537466145000
    €44,38
    €36,68 excl. VAT
    Variant: M 14x2 6H
    In stock (>10 pcs) | 041537266140000
    €39,43
    €32,59 excl. VAT
    Variant: M 16x1,5 6H
    In stock (1 pcs) | 041537466165000
    €50,66
    €41,87 excl. VAT
    Variant: M 16x2 6H
    In stock (>10 pcs) | 041537266160000
    €43,40
    €35,87 excl. VAT
    Variant: M 18x1,5 6H
    Currently unavailable | 041537466185000
    €62,87
    €51,96 excl. VAT
    Variant: M 18x2,5 6H
    In stock (>10 pcs) | 041537266180000
    €62,12
    €51,34 excl. VAT
    Variant: M 20x1,5 6H
    Currently unavailable | 041537466205000
    €70,36
    €58,15 excl. VAT
    Variant: M 20x2,5 6H
    In stock (>10 pcs) | 041537266200000
    €64,29
    €53,13 excl. VAT
    Variant: M 22x2,5 6H
    Currently unavailable | 041537266220000
    €92,52
    €76,46 excl. VAT
    Variant: M 24x3 6H
    Currently unavailable | 041537266240000
    €87,12
    €72 excl. VAT
    Variant: M 27x3 6H
    In stock (1 pcs) | 041537266270000
    €116,38
    €96,18 excl. VAT
    Variant: M 30x3,5 6H
    In stock (5 pcs) | 041537266300000
    €140,64
    €116,23 excl. VAT

    Product detailed description

    Catalogue number: 3590

    machine tap with sraight flute and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for heat-treated steels, tool steels and aluminium alloys with Si>10%.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm24-8
    P3.2Heat-treated steels <1200N/mm24-8
    N8.2Aluminium alloysSi<10%12-15



    Dimensions:

    3590: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5692,2-2,5
    M 40,76H63122,82,13,3
    M 50,86H70133,52,74,2
    M 60,756H80154,53,45,2
    M 616H80154,53,45
    M 816H901864,97
    M 81,256H901864,96,8
    M 80,756H801564,97,2
    M 101,56H1002075,58,5
    M 1016H902075,59
    M 121,756H110239710,2
    M 121,56H100219710,5
    M 1216H100219711
    M 141,56H1002111912,5
    M 1426H1102511912
    M 1626H1102512914
    M 161,56H1002112914,5
    M 182,56H12530141115,5
    M 181,56H11024141116,5
    M 201,56H12524161218,5
    M 202,56H14030161217,5
    M 222,56H140301814,519,5
    M 2436H160361814,521
    M 2736H16036201624
    M 303,56H18040221826,5

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
    Machined material: Aluminium alloysSi<10%, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: DIN 374, DIN 376
    Thread type: Metric ISO Thread, Metric ISO Fine Thread
    Tolerance: 6H
