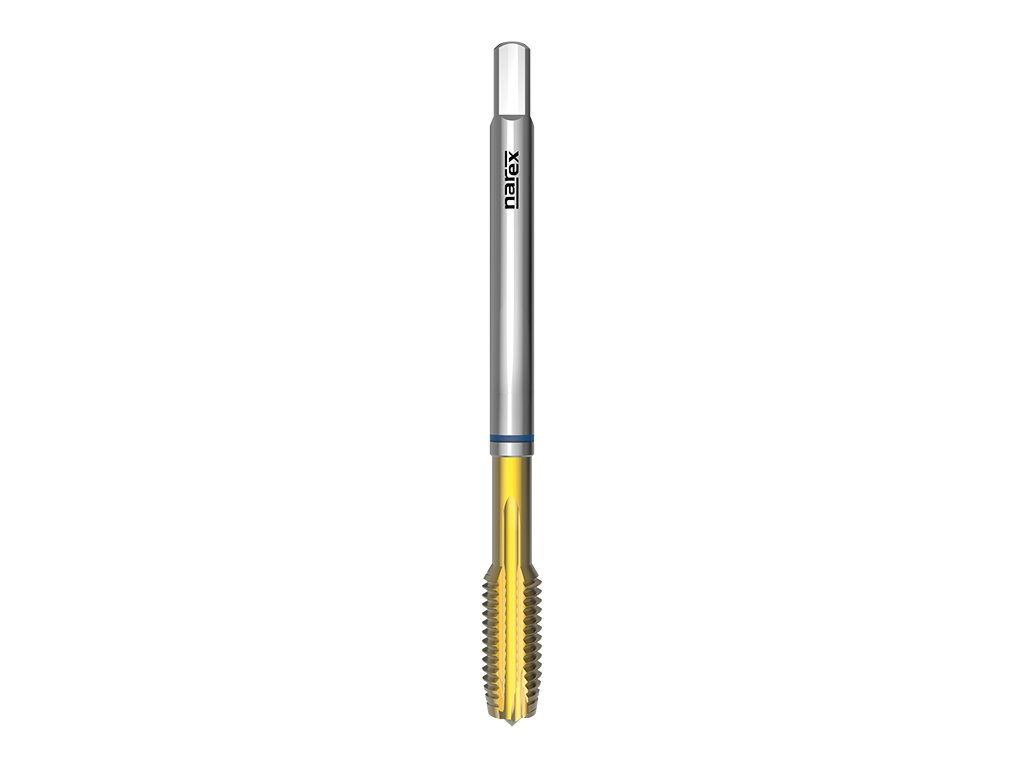

3662 - Machine tap with straight flutes and spiral point

Code: 041535622003000
from €42,52 from €35,14 excl. VAT

Choose variant

Catalogue number: 3662

Machine tap with straight flutes and spiral point, british standard pipe thread, DIN 5156, TiN coated, suitable for case hardened and nitriding steels, stainless steels with stength up to 1000 N/mm2, unalloyed copper and long chipping copper alloys.



Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: DIN 5156Tap standard:   DIN 5156

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: G 1/8"x28
In stock | 041535622003000
€42,52
€35,14 excl. VAT
Variant: G 1/4"x19
In stock | 041535622007000
€57,86
€47,82 excl. VAT
Variant: G 3/8"x19
In stock | 041535622011000
€71,01
€58,69 excl. VAT
Variant: G 1/2"x14
In stock | 041535622013000
€95,74
€79,12 excl. VAT
Variant: G 5/8"x14
In stock | 041535622015000
€118,94
€98,30 excl. VAT
Variant: G 3/4"x14
In stock | 041535622017000
€151,26
€125,01 excl. VAT
Variant: G 7/8"x14
Currently unavailable | 041535622019000
€193,66
€160,05 excl. VAT
Variant: G 1"x11
In stock | 041535622021000
€212,06
€175,26 excl. VAT
Variant: G 1 1/8"x11
Currently unavailable | 041535622022000
€292,06
€241,37 excl. VAT
Variant: G 1 1/4"x11
Currently unavailable | 041535622023000
€351,21
€290,26 excl. VAT
Variant: G 1 1/2"x11
In stock | 041535622025000
€486,46
€402,03 excl. VAT

Product detailed description

Catalogue number: 3662

Machine tap with straight flutes and spiral point, british standard pipe thread, DIN 5156, TiN coated, suitable for case hardened and nitriding steels, stainless steels with stength up to 1000 N/mm2, unalloyed copper and long chipping copper alloys.



Features:

Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: DIN 5156Tap standard:   DIN 5156

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P3.1Case hardened and nitriding steels <1200N/mm24-8
M5.1Stainless steels 450-800N/mm28-12
M5.2Stainless steels 600-1000N/mm25-8
N9.1Pure copper8-12
N10.2Long chipping copper alloys10-15



Dimensions:

3662: kreslenka
d1Ptoll1l2d2ahole
G 1/8"28902075,58,8
G 1/4"191002111911,8
G 3/8"191002112915,25
G 1/2"1412524161219
G 5/8"14125241814,521
G 3/4"1414026201624,5
G 7/8"1415028221828,25
G 1"1116030252030,75
G 1 1/8"1117030282235,5
G 1 1/4"1117030322439,5
G 1 1/2"1119032362945,25

Additional parameters

Category: Machine taps
Coating: TiN
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Pure copper
Product line: NAREX Zdanice Product Line
Standard: DIN 5156
Thread type: Pipe Thread
Tolerance: -
