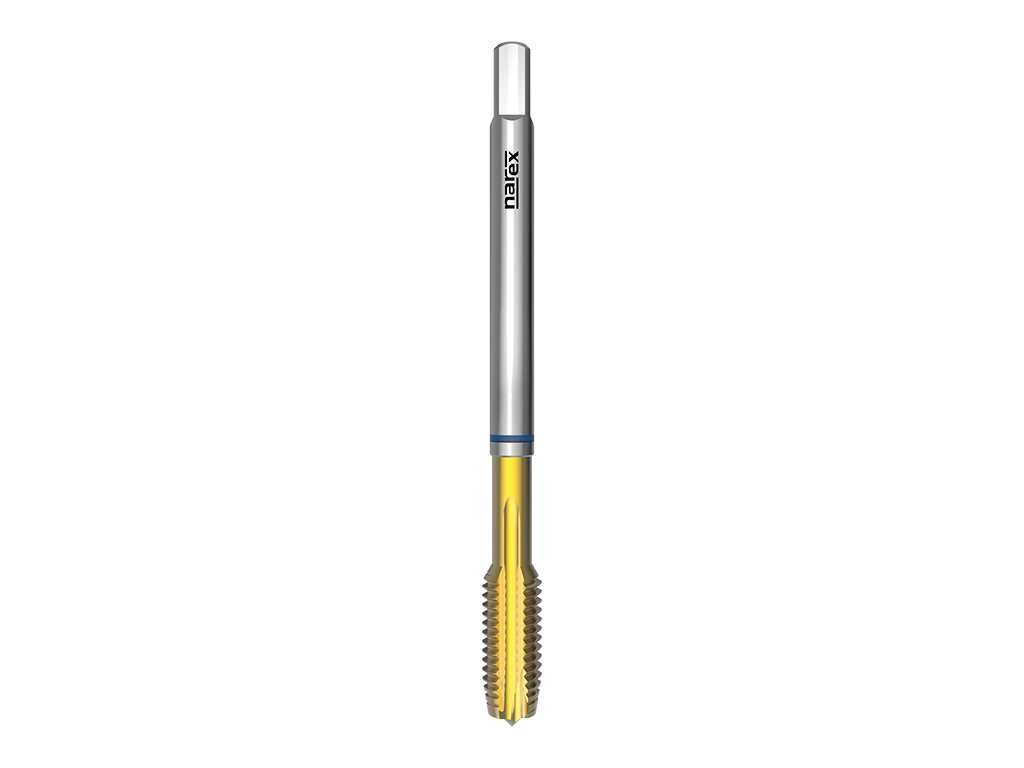

3665 - Machine tap with straight flutes and spiral point
Code: 041535922103000
Variant: UNF 5x44 2BX
In stock
(4 pcs)
| 041535922102000
EAN: 8595111942414
€33,98
€28,08
excl. VAT
Variant: UNF 6x40 2BX
In stock
(2 pcs)
| 041535922103000
EAN: 8595111942421
€30,69
€25,36
excl. VAT
Variant: UNF 8x36 2BX
In stock
(4 pcs)
| 041535922104000
EAN: 8595111942438
€30,69
€25,36
excl. VAT
Variant: UNF 10x32 2BX
Currently unavailable
| 041535922105000
EAN: 8595111942445
€31,74
€26,23
excl. VAT
Variant: UNF 12x28 2BX
In stock
(4 pcs)
| 041535922106000
EAN: 8595111942452
€37,43
€30,93
excl. VAT
Variant: UNF 1/4x28 2BX
Currently unavailable
| 041535922107000
EAN: 8595111942469
€35,17
€29,07
excl. VAT
Variant: UNF 5/16x24 2BX
Currently unavailable
| 041535922109000
EAN: 8595111942476
€37,50
€30,99
excl. VAT
Variant: UNF 3/8x24 2BX
In stock
(9 pcs)
| 041535922111000
EAN: 8595111942483
€39,66
€32,78
excl. VAT
Variant: UNF 7/16x20 2BX
In stock
(1 pcs)
| 041535922112000
EAN: 8595111942490
€51,43
€42,50
excl. VAT
Variant: UNF 1/2x20 2BX
In stock
(3 pcs)
| 041535922113000
EAN: 8595111942506
€50,37
€41,63
excl. VAT
Variant: UNF 9/16x18 2BX
In stock
(1 pcs)
| 041535922114000
EAN: 8595111942513
€76,11
€62,90
excl. VAT
Variant: UNF 5/8x18 2BX
Currently unavailable
| 041535922115000
EAN: 8595111942520
€68,20
€56,36
excl. VAT
Variant: UNF 3/4x16 2BX
In stock
(3 pcs)
| 041535922117000
EAN: 8595111942537
€89,88
€74,28
excl. VAT
Variant: UNF 7/8x14 2BX
In stock
(2 pcs)
| 041535922119000
EAN: 8595111942544
€109,65
€90,62
excl. VAT
Variant: UNF 1x12 2BX
Currently unavailable
| 041535922121000
EAN: 8595111942551
€148,65
€122,85
excl. VAT
Product detailed description
Catalogue number: 3665
Machine tap with straight flutes and spiral point, unified national fine thread, DIN 374, TiN coated, suitable for case hardened and nitriding steels, stainless steels with stength up to 1000 N/mm2, unalloyed copper and long chipping copper alloys.
Features:
Thread UNF: Unified fine thread
Profile sketch: 60°
Type VA: Tap for stainless steels
Tap material: Super high speed steel
Coating: Titanium nitride coating
Tap standard: ~ DIN 374
Thread tolerance: 2BX
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 4-8 |
| M5.1 | Stainless steels 450-800N/mm2 | 8-12 |
| M5.2 | Stainless steels 600-1000N/mm2 | 5-8 |
| N9.1 | Pure copper | 8-12 |
| N10.2 | Long chipping copper alloys | 10-15 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| UNF 5 | 44 | 2BX | 56 | 9 | 2,2 | - | 2,7 |
| UNF 6 | 40 | 2BX | 56 | 11 | 2,5 | 2,1 | 3 |
| UNF 8 | 36 | 2BX | 63 | 12 | 2,8 | 2,1 | 3,5 |
| UNF 10 | 32 | 2BX | 70 | 13 | 3,5 | 2,7 | 4,1 |
| UNF 12 | 28 | 2BX | 80 | 15 | 4 | 3 | 4,65 |
| UNF 1/4 | 28 | 2BX | 80 | 15 | 4,5 | 3,4 | 5,5 |
| UNF 5/16 | 24 | 2BX | 90 | 18 | 6 | 4,9 | 6,9 |
| UNF 3/8 | 24 | 2BX | 90 | 20 | 7 | 5,5 | 8,5 |
| UNF 7/16 | 20 | 2BX | 100 | 20 | 8 | 6,2 | 9,9 |
| UNF 1/2 | 20 | 2BX | 100 | 21 | 9 | 7 | 11,5 |
| UNF 9/16 | 18 | 2BX | 100 | 21 | 11 | 9 | 12,9 |
| UNF 5/8 | 18 | 2BX | 100 | 21 | 12 | 9 | 14,5 |
| UNF 3/4 | 16 | 2BX | 110 | 24 | 14 | 11 | 17,5 |
| UNF 7/8 | 14 | 2BX | 125 | 24 | 18 | 14,5 | 20,5 |
| UNF 1 | 12 | 2BX | 140 | 26 | 18 | 14,5 | 23,25 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiN |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Pure copper |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN ≈374 |
| Thread type: | Unified Fine Thread UNF |
| Tolerance: | 2BX |
