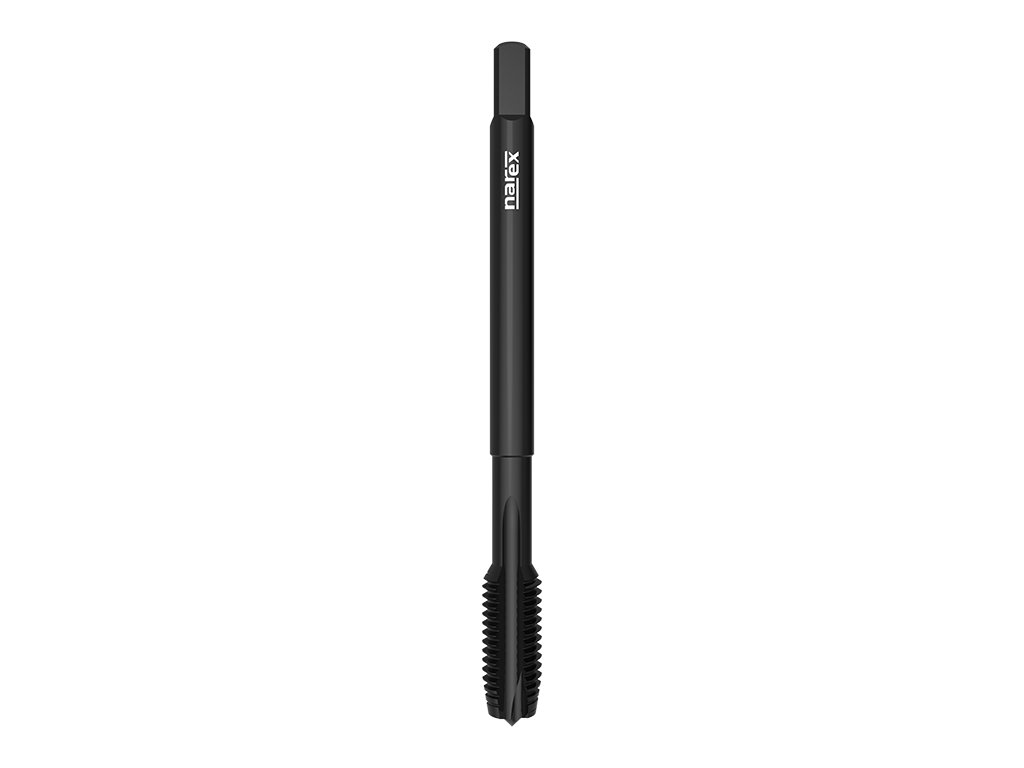

3690 - Machine tap with straight flutes and spiral point

Code: 041537262050000
from €20,21 from €16,70 excl. VAT

Choose variant

Catalogue number: 3690

Machine tap with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: OxidationCoating:   Oxidation

Tap standard: DIN 376Tap standard:   DIN 376

Tap standard: DIN 374Tap standard:   DIN 374

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 3x0,5 6H
Currently unavailable | 041537262030000
€20,88
€17,26 excl. VAT
Variant: M 4x0,7 6H
In stock (>10 pcs) | 041537262040000
€21,32
€17,62 excl. VAT
Variant: M 5x0,8 6H
In stock (>10 pcs) | 041537262050000
€20,21
€16,70 excl. VAT
Variant: M 6x0,75 6H
In stock (>10 pcs) | 041537462068000
€28,97
€23,94 excl. VAT
Variant: M 6x1 6H
In stock (>10 pcs) | 041537262060000
€20,88
€17,26 excl. VAT
Variant: M 8x0,75 6H
In stock (>10 pcs) | 041537462088000
€31,88
€26,35 excl. VAT
Variant: M 8x1 6H
Currently unavailable | 041537462087000
€29,27
€24,19 excl. VAT
Variant: M 8x1,25 6H
In stock (>10 pcs) | 041537262080000
€22,37
€18,49 excl. VAT
Variant: M 10x1 6H
In stock (>10 pcs) | 041537462107000
€30,17
€24,93 excl. VAT
Variant: M 10x1,5 6H
In stock (>10 pcs) | 041537262100000
€25,30
€20,91 excl. VAT
Variant: M 12x1 6H
In stock (>10 pcs) | 041537462127000
€35,32
€29,19 excl. VAT
Variant: M 12x1,5 6H
In stock (>10 pcs) | 041537462125000
€33,31
€27,53 excl. VAT
Variant: M 12x1,75 6H
In stock (>10 pcs) | 041537262120000
€29,95
€24,75 excl. VAT
Variant: M 14x1,5 6H
In stock (3 pcs) | 041537462145000
€44,24
€36,56 excl. VAT
Variant: M 14x2 6H
In stock (>10 pcs) | 041537262140000
€38,99
€32,22 excl. VAT
Variant: M 16x1,5 6H
In stock (>10 pcs) | 041537462165000
€50,37
€41,63 excl. VAT
Variant: M 16x2 6H
In stock (>10 pcs) | 041537262160000
€43,04
€35,57 excl. VAT
Variant: M 18x1,5 6H
In stock (5 pcs) | 041537462185000
€62,71
€51,83 excl. VAT
Variant: M 18x2,5 6H
In stock (>10 pcs) | 041537262180000
€61,53
€50,85 excl. VAT
Variant: M 20x1,5 6H
In stock (>10 pcs) | 041537462205000
€69,97
€57,83 excl. VAT
Variant: M 20x2,5 6H
In stock (>10 pcs) | 041537262200000
€63,55
€52,52 excl. VAT
Variant: M 22x2,5 6H
In stock (>10 pcs) | 041537262220000
€91,69
€75,78 excl. VAT
Variant: M 24x3 6H
In stock (>10 pcs) | 041537262240000
€86,07
€71,13 excl. VAT
Variant: M 27x3 6H
In stock (>10 pcs) | 041537262270000
€115,03
€95,07 excl. VAT
Variant: M 30x3,5 6H
In stock (>10 pcs) | 041537262300000
€139,21
€115,05 excl. VAT

Product detailed description

Catalogue number: 3690

Machine tap with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: OxidationCoating:   Oxidation

Tap standard: DIN 376Tap standard:   DIN 376

Tap standard: DIN 374Tap standard:   DIN 374

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P3.1Case hardened and nitriding steels <1200N/mm23-5
M5.1Stainless steels 450-800N/mm24-7
M5.2Stainless steels 600-1000N/mm23-5



Dimensions:

3690: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5692,2-2,5
M 40,76H63122,82,13,3
M 50,86H70133,52,74,2
M 60,756H80154,53,45,2
M 616H80154,53,45
M 816H901864,97
M 81,256H901864,96,8
M 80,756H801564,97,2
M 101,56H1002075,58,5
M 1016H902075,59
M 121,756H110239710,2
M 121,56H100219710,5
M 1216H100219711
M 141,56H1002111912,5
M 1426H1102511912
M 1626H1102512914
M 161,56H1002112914,5
M 182,56H12530141115,5
M 181,56H11024141116,5
M 201,56H12524161218,5
M 202,56H14030161217,5
M 222,56H140301814,519,5
M 2436H160361814,521
M 2736H16036201624
M 3016H15028221829
M 303,56H18040221826,5

Additional parameters

Category: Machine taps
Coating: OX
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Case hardened and nitriding steels <1200N/mm2
Product line: NAREX Zdanice Product Line
Standard: DIN 374, DIN 376
Thread type: Metric ISO Thread, Metric ISO Fine Thread
Tolerance: 6H
