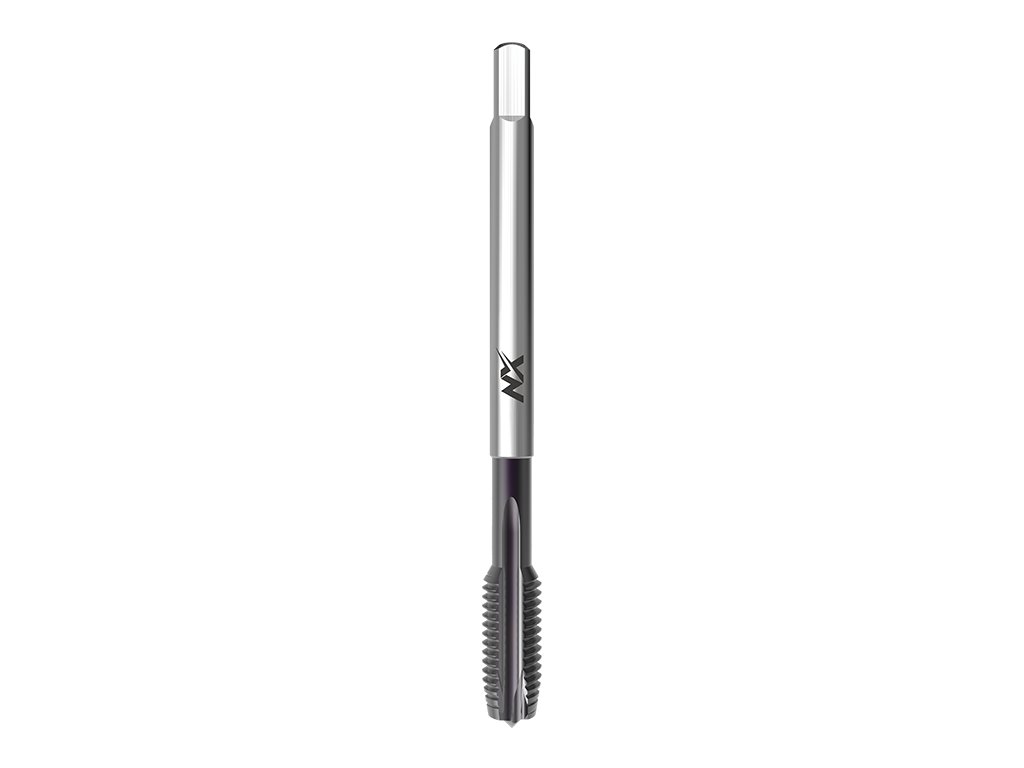

3722NX - Machine tap with straight flutes and spiral point

Code: 042036624003000
from €95,28 from €78,74 excl. VAT

Choose variant

Catalogue number: 3722NX

High performance machine tap with straight flutes and spiral point, british standard pipe, DIN 5156, Balinit Hardlube coated, suitable for universal use.



Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

Tap standard: DIN 5156Tap standard:   DIN 5156

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: G 1/8"x28
In stock | 042036624003000
€95,28
€78,74 excl. VAT
Variant: G 1/4"x19
In stock | 042036624007000
€137,87
€113,94 excl. VAT
Variant: G 3/8"x19
In stock | 042036624011000
€172,86
€142,86 excl. VAT
Variant: G 1/2"x14
In stock | 042036624013000
€231,11
€191 excl. VAT
Variant: G 5/8"x14
In stock | 042036624015000
€283,76
€234,51 excl. VAT
Variant: G 3/4"x14
In stock | 042036624017000
€345,33
€285,40 excl. VAT
Variant: G 1"x11
In stock | 042036624021000
€474,32
€392 excl. VAT

Product detailed description

Catalogue number: 3722NX

High performance machine tap with straight flutes and spiral point, british standard pipe, DIN 5156, Balinit Hardlube coated, suitable for universal use.



Features:

Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

Tap standard: DIN 5156Tap standard:   DIN 5156

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm222-26
P1.2Plain cast steels <500N/mm222-26
P2.1Free-cutting steels <800N/mm218-22
P2.2Structural steels <800N/mm218-22
P2.3Plain cast steels <800N/mm218-22
P3.1Case hardened and nitriding steels <1200N/mm215-18
P3.2Heat-treated steels <1200N/mm215-18
P3.3Tool steels <1200N/mm215-18
P4.1High-alloyed steels <1400N/mm28-14
P4.2Heat-treated steels <1400N/mm28-14
M5.1Stainless steels 450-800N/mm212-15
M5.2Stainless steels 600-1000N/mm212-15
K6.1Grey cast iron15-22
K6.2Spher. graphite and mall. cast iron15-22
N7.1Unalloyed aluminium32-40
N8.1Aluminium alloysSi<10%15-22
N8.2Aluminium alloysSi<10%15-22
N9.1Pure copper22-25
N10.1Short chipping copper alloys10-12
N10.2Long chipping copper alloys10-12
N11.1Zinc and zinc alloys10-12



Dimensions:

3722NX: kreslenka
d1Ptoll1l2d2ahole
G 1/8"28902075,58,8
G 1/4"191002111911,8
G 3/8"191002112915,25
G 1/2"1412524161219
G 5/8"14125241814,521
G 3/4"1414026201624,5
G 1"1116028252030,75

Additional parameters

Category: Machine taps
Coating: HL
Hole type: through hole (thread length L > 1,5xd1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Unalloyed aluminium, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper, High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
Product line: NX Precision Taps Product Line
Standard: DIN 5156
Thread type: Pipe Thread
Tolerance: -
