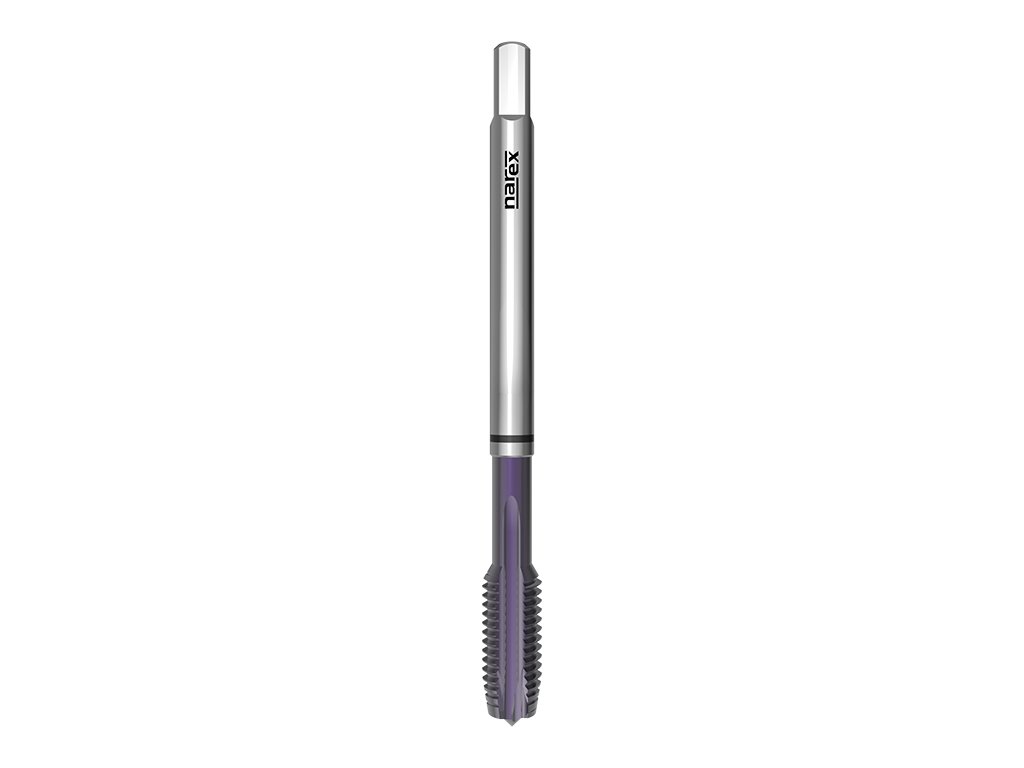

3920 - Machine tap with straight flutes and spiral point

Code: 041536278120000
from €51,43 from €42,50 excl. VAT

Choose variant

Catalogue number: 3920

Machine tap with straight flutes and spiral point, metric, DIN 376, Futura Nano Top coated, suitable for high-alloyed and heat treated steels.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type H: Tap for steels up to 1400 N/mm2Type H:   Tap for steels up to 1400 N/mm2

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Futura Nano Top coating (titanium aluminiumnitride)Coating:   Balinit® Futura Nano Top coating (titanium aluminiumnitride)

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: M 12x1,75 6H
In stock | 041536278120000
€51,43
€42,50 excl. VAT
Variant: M 14x2 6H
In stock | 041536278140000
€63,96
€52,86 excl. VAT
Variant: M 16x2 6H
In stock | 041536278160000
€72,58
€59,98 excl. VAT
Variant: M 18x2,5 6H
In stock | 041536278180000
€101,95
€84,26 excl. VAT
Variant: M 20x2,5 6H
In stock | 041536278200000
€108,07
€89,31 excl. VAT

Product detailed description

Catalogue number: 3920

Machine tap with straight flutes and spiral point, metric, DIN 376, Futura Nano Top coated, suitable for high-alloyed and heat treated steels.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type H: Tap for steels up to 1400 N/mm2Type H:   Tap for steels up to 1400 N/mm2

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Futura Nano Top coating (titanium aluminiumnitride)Coating:   Balinit® Futura Nano Top coating (titanium aluminiumnitride)

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P4.1High-alloyed steels <1400N/mm23-6
P4.2Heat-treated steels <1400N/mm24-8



Dimensions:

3920: kreslenka
d1Ptoll1l2d2ahole
M 121,756H110239710,2
M 1426H1102511912
M 1626H1102512914
M 182,56H12530141115,5
M 202,56H14030161217,5

Additional parameters

Category: Machine taps
Coating: FNT
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
Machined material: High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
Product line: NAREX Zdanice Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6H
