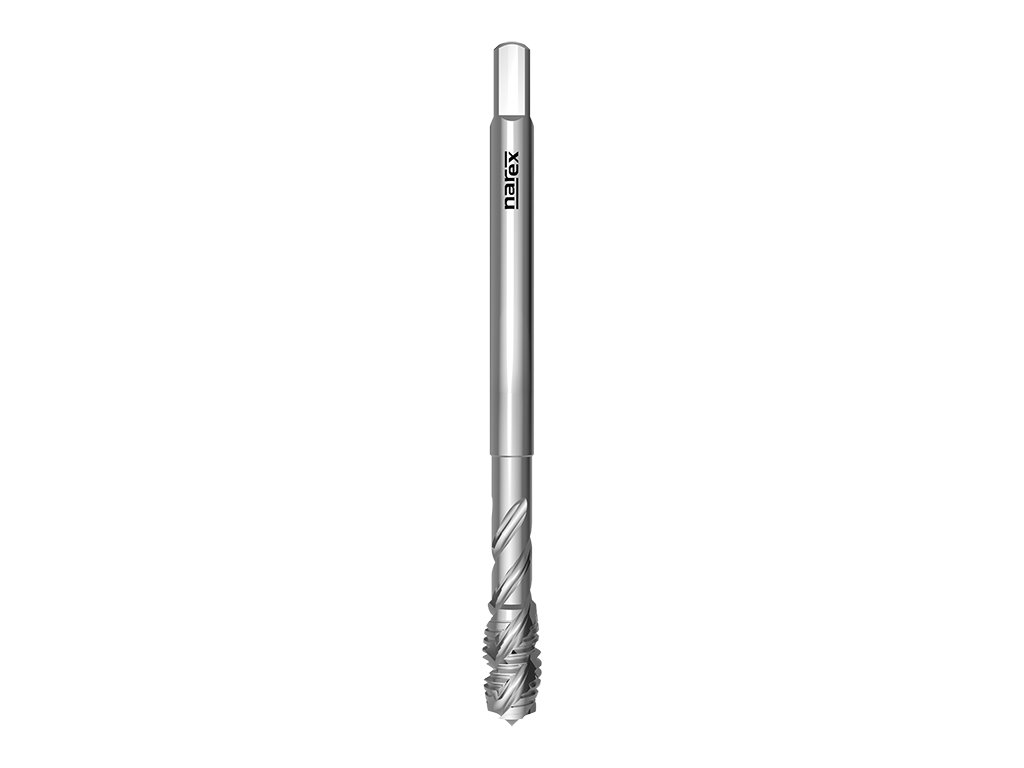

4050BC - Machine tap with right-hand spiral flutes 40°

Code: 042731318030000
from €13,39 from €11,07 excl. VAT

Choose variant

Catalogue number: 4050BC

Machine tap with spiral flutes, metric, DIN 376, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 % and long chipping copper alloys.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: M 3x0,5 6H
Currently unavailable | 042731318030000
€13,39
€11,07 excl. VAT
Variant: M 4x0,7 6H
In stock | 042731318040000
€13,54
€11,19 excl. VAT
Variant: M 5x0,8 6H
Currently unavailable | 042731318050000
€13,99
€11,56 excl. VAT
Variant: M 6x1 6H
In stock | 042731318060000
€13,99
€11,56 excl. VAT
Variant: M 8x1,25 6H
In stock | 042731318080000
€15,50
€12,81 excl. VAT
Variant: M 10x1,5 6H
Currently unavailable | 042731318100000
€19,31
€15,96 excl. VAT
Variant: M 12x1,75 6H
In stock | 042731318120000
€22,60
€18,68 excl. VAT
Variant: M 14x2 6H
In stock | 042731318140000
€28,14
€23,26 excl. VAT
Variant: M 16x2 6H
Currently unavailable | 042731318160000
€30,90
€25,54 excl. VAT
Variant: M 18x2,5 6H
In stock | 042731318180000
€44,67
€36,92 excl. VAT
Variant: M 20x2,5 6H
In stock | 042731318200000
€46,04
€38,05 excl. VAT
Variant: M 22x2,5 6H
In stock | 042731318220000
€61,67
€50,97 excl. VAT
Variant: M 24x3 6H
Currently unavailable | 042731318240000
€58,60
€48,43 excl. VAT

Product detailed description

Catalogue number: 4050BC

Machine tap with spiral flutes, metric, DIN 376, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 % and long chipping copper alloys.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 376Tap standard:   DIN 376

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P2.2Structural steels <800N/mm210-14
P2.3Plain cast steels <800N/mm210-14
K6.2Spher. graphite and mall. cast iron4-7
N8.1Aluminium alloysSi<10%14-20
N10.2Long chipping copper alloys6-10



Dimensions:

4050BC: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5652,2-2,5
M 40,76H6372,82,13,3
M 50,86H7083,52,74,2
M 616H80104,53,45
M 81,256H901364,96,8
M 101,56H1001575,58,5
M 121,756H110189710,2
M 1426H1102011912
M 1626H1102012914
M 182,56H12525141115,5
M 202,56H14025161217,5
M 222,56H140251814,519,5
M 2436H160301814,521

Additional parameters

Category: Machine taps
Coating: -
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Long chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN 376
Thread type: Metric ISO Thread
Tolerance: 6H
