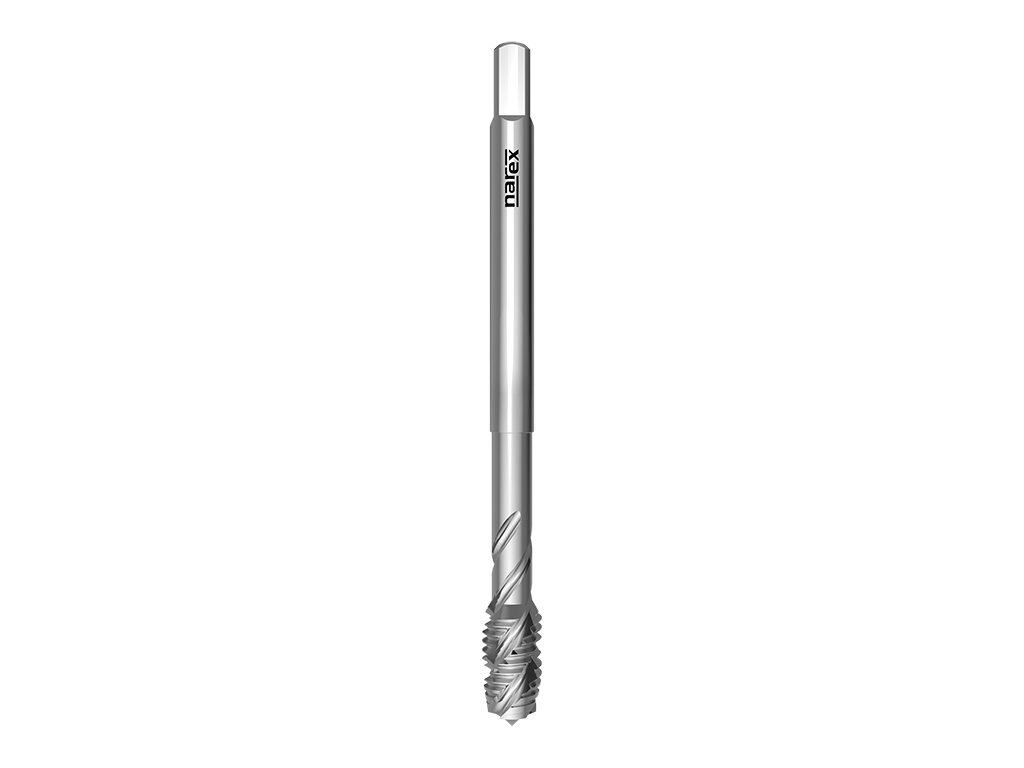

4054 - Machine tap with right-hand spiral flutes 40°

Code: 041531930012000
from €27,66 from €22,86 excl. VAT

Choose variant

Catalogue number: 4054

Machine tap with spiral flutes, unified national coarse thread, DIN 376, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 % and long chipping copper alloys.



Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: UNC 7/16x14 2B
In stock | 041531930012000
€27,66
€22,86 excl. VAT
Variant: UNC 1/2x13 2B
In stock | 041531930013000
€27,94
€23,09 excl. VAT
Variant: UNC 9/16x12 2B
In stock | 041531930014000
€39,65
€32,77 excl. VAT
Variant: UNC 5/8x11 2B
Currently unavailable | 041531930015000
€37,53
€31,02 excl. VAT
Variant: UNC 3/4x10 2B
In stock | 041531930017000
€46,84
€38,71 excl. VAT
Variant: UNC 7/8x9 2B
Currently unavailable | 041531930019000
€57,11
€47,20 excl. VAT
Variant: UNC 1x8 2B
In stock | 041531930021000
€77,44
€64 excl. VAT
Variant: UNC 1 1/8x7 2B
Currently unavailable | 041531930022000
€101,68
€84,03 excl. VAT

Product detailed description

Catalogue number: 4054

Machine tap with spiral flutes, unified national coarse thread, DIN 376, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 % and long chipping copper alloys.



Features:

Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P2.2Structural steels <800N/mm210-14
P2.3Plain cast steels <800N/mm210-14
K6.2Spher. graphite and mall. cast iron4-7
N8.1Aluminium alloysSi<10%14-20
N10.2Long chipping copper alloys6-10



Dimensions:

4054: kreslenka
d1Ptoll1l2d2ahole
UNC 7/16142B1001886,29,4
UNC 1/2132B110209710,75
UNC 9/16122B1102011912,25
UNC 5/8112B1102012913,5
UNC 3/4102B12525141116,5
UNC 7/892B140251814,519,5
UNC 182B160301814,522,25
UNC 1 1/872B18035221825

Additional parameters

Category: Machine taps
Coating: -
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Long chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈376
Thread type: Unified Course Thread UNC
Tolerance: 2B
