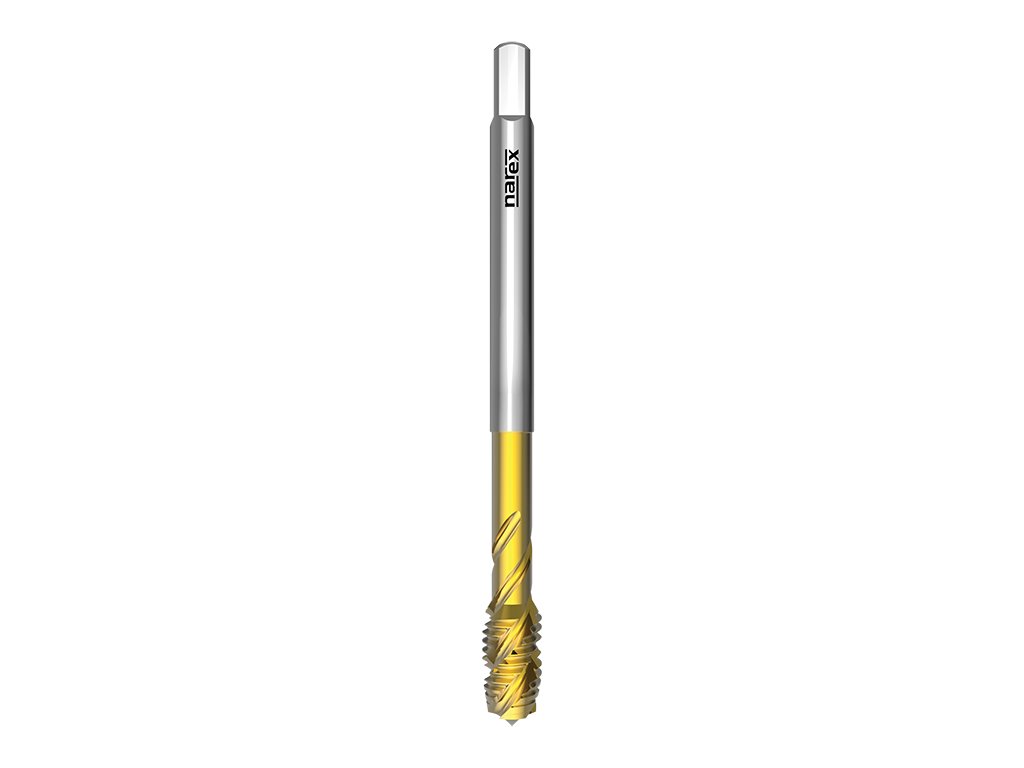

4064 - Machine tap with right-hand spiral flutes 40°

Code: 041535930012000
from €39,14 from €32,35 excl. VAT

Choose variant

Catalogue number: 4064

Machine tap with spiral flutes, unified national coarse thread, DIN 376, TiN coated, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys and long chipping copper alloys.



Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: UNC 7/16x14 2B
In stock (9 pcs) | 041535930012000
€39,14
€32,35 excl. VAT
Variant: UNC 1/2x13 2B
In stock (>10 pcs) | 041535930013000
€39,36
€32,53 excl. VAT
Variant: UNC 9/16x12 2B
In stock (1 pcs) | 041535930014000
€56,06
€46,33 excl. VAT
Variant: UNC 5/8x11 2B
In stock (>10 pcs) | 041535930015000
€52,84
€43,67 excl. VAT
Variant: UNC 3/4x10 2B
In stock (>10 pcs) | 041535930017000
€66,09
€54,62 excl. VAT
Variant: UNC 7/8x9 2B
In stock (>10 pcs) | 041535930019000
€80,90
€66,86 excl. VAT
Variant: UNC 1x8 2B
In stock (9 pcs) | 041535930021000
€109,65
€90,62 excl. VAT
Variant: UNC 1 1/8x7 2B
Currently unavailable | 041535930022000
€144,45
€119,38 excl. VAT

Product detailed description

Catalogue number: 4064

Machine tap with spiral flutes, unified national coarse thread, DIN 376, TiN coated, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys and long chipping copper alloys.



Features:

Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 376Tap standard:   ~ DIN 376

Thread tolerance: 2BThread tolerance:   2B

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P2.2Structural steels <800N/mm212-15
P2.3Plain cast steels <800N/mm212-15
K6.2Spher. graphite and mall. cast iron6-8
N8.1Aluminium alloysSi<10%15-30
N8.2Aluminium alloysSi<10%14-20
N10.2Long chipping copper alloys10-15



Dimensions:

4064: kreslenka
d1Ptoll1l2d2ahole
UNC 7/16142B1001886,29,4
UNC 1/2132B110209710,75
UNC 9/16122B1102011912,25
UNC 5/8112B1102012913,5
UNC 3/4102B12525141116,5
UNC 7/892B140251814,519,5
UNC 182B160301814,522,25
UNC 1 1/872B18035221825

Additional parameters

Category: Machine taps
Coating: TiN
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Long chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN ≈376
Thread type: Unified Course Thread UNC
Tolerance: 2B
